COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
CHAPTER 10 INNER 2 WAY TRAY-A1
10-3 P
2 Outline

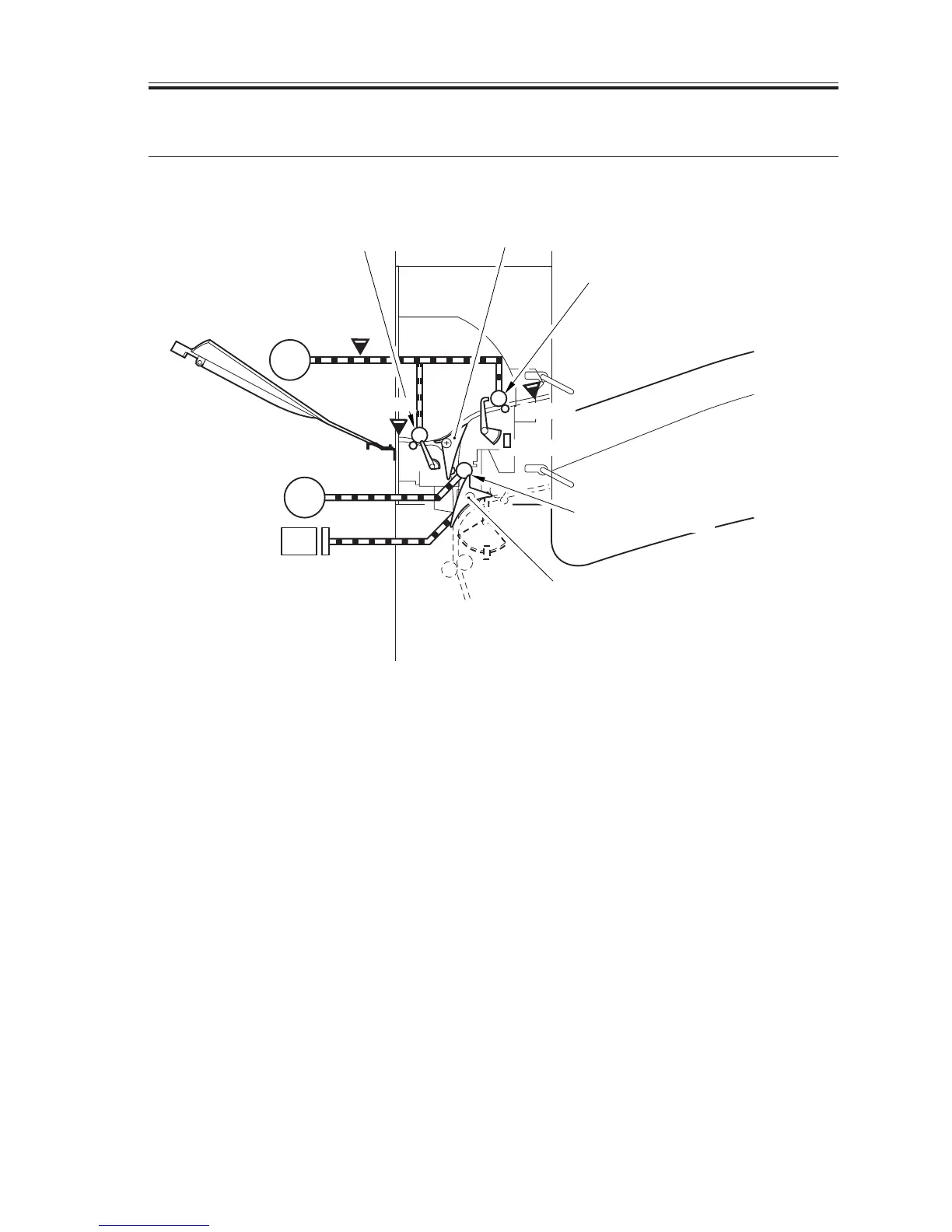

2.1 Arrangement of Rollers and Sensors
F10-201-01
M8
M7
PS24B
No. 1 delivery slot
No. 2 delivery slot
SL4
M7: 2-way delivery inlet motor
M8: 2-way delivery outlet motor
SL4: 2-way delivery solenoid
PS19B: No. 2 delivery sensor
PS20B: No. 2 delivery full sensor
PS21B: No. 3 delivery sensor
PS4B: 2-way delivery open/closed sensor
No. 3 delivery roller
No. 3 delivery flapper
No. 2 delivery inlet roller
No. 2 delivery roller
No. 2 delivery inlet flapper
PS20B
PS19B
No. 3
delivery slot
PS21B
