CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-8 P
[8]
M2
M9
M1
CL1
[10]
SL1
[2]
[4]
[3]
[2]
[4]
[5]
[5]
[3]
[7]
[6]
[11]
[11]
[1]
[9]
3 Pickup Assembly

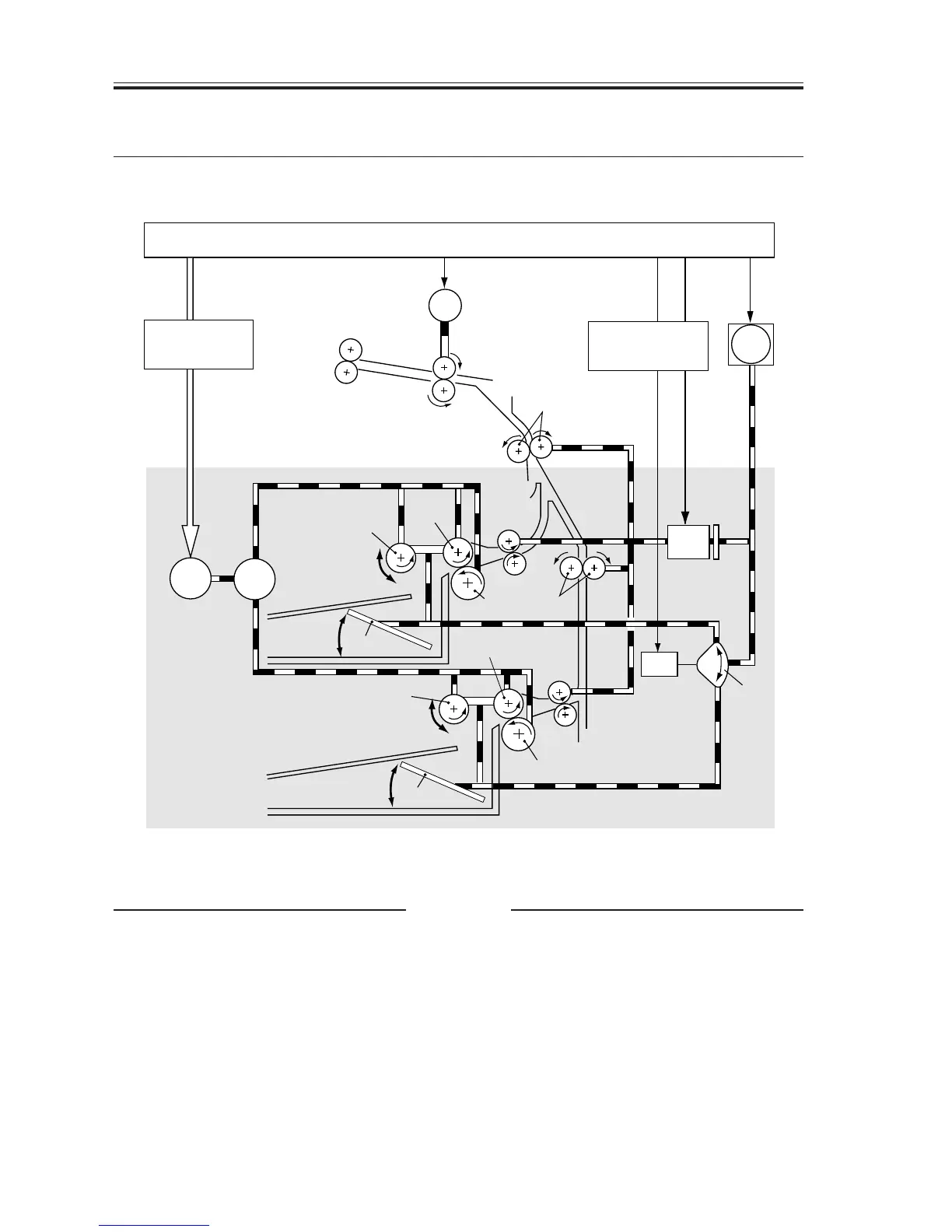

3.1 Pickup Control System
F05-301-01
Notation Name
[9] Pre-registration roller
[10] DC controller PCB
[11] Cassette pickup PCB
M1 Main motor
M2 Pickup motor
M5 Registration motor
CL1 Vertical path clutch
SL1 Pickup DOWN solenoid
Notation Name
[1] Gear
[2] Pickup roller
[3] Feeding roller
[4] Separation roller
[5] Lifter
[6] Vertical path roller
[7] Cam
[8] Registration roller
