CHAPTER 3 INSTALLATION
3-22 S

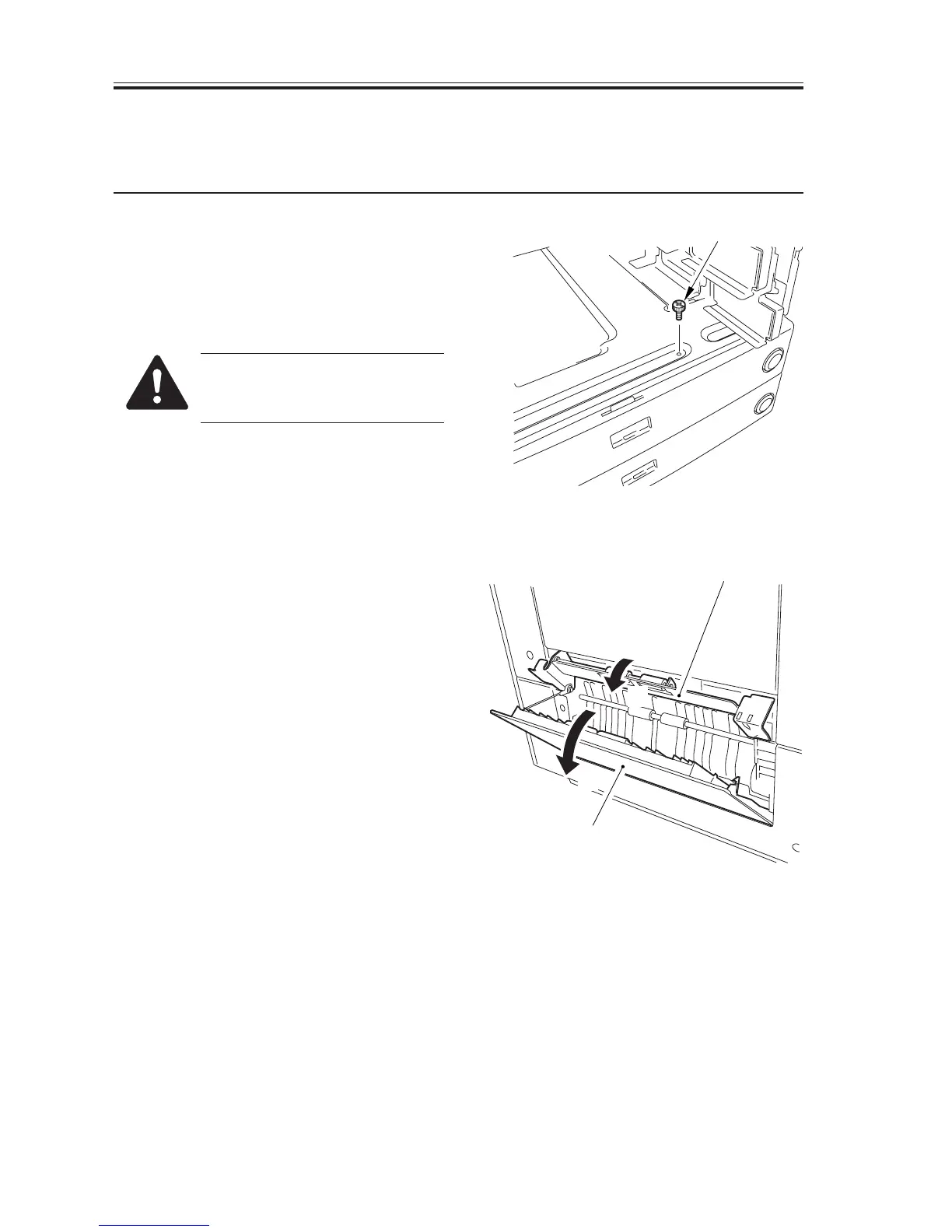

3.2 Lifting the Machine Off the Pedestal
Work Checks/remarks
1) Disconnect the lattice connector of the
pedestal from the machine.
2) Slide out the two cassettes from the ma-
chine, and remove the screw [1] used to
connect the machine to the pedestal.
Remove the screw likewise if
the machine is installed to a dif-
ferent type of cassette pedestal.
3) Open the right cover [1] of the pedestal,
and release the guide assembly [2] con-
nected to the machine (i.e., shift it down
to the right).
4) While working in a group of two or
more, hold the grips of the machine,
and lift it straight up (pay attention to
the pins of the pedestal).
5) Place the machine on the floor or on a
desk.
[1]
[2]
[1]
[B]
[A]

Canon iR2200 Specifications

General

Print Technology	Laser
Print Speed	22 ppm
Max Paper Size	A3
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Network Connectivity	Optional
Copy Speed	22 cpm
Scanner Type	Flatbed
Max Print Resolution	600 x 600 dpi
Zoom Range	25% - 400%
