3-18 T
5.2 Adjusting the Paper Level Indicator

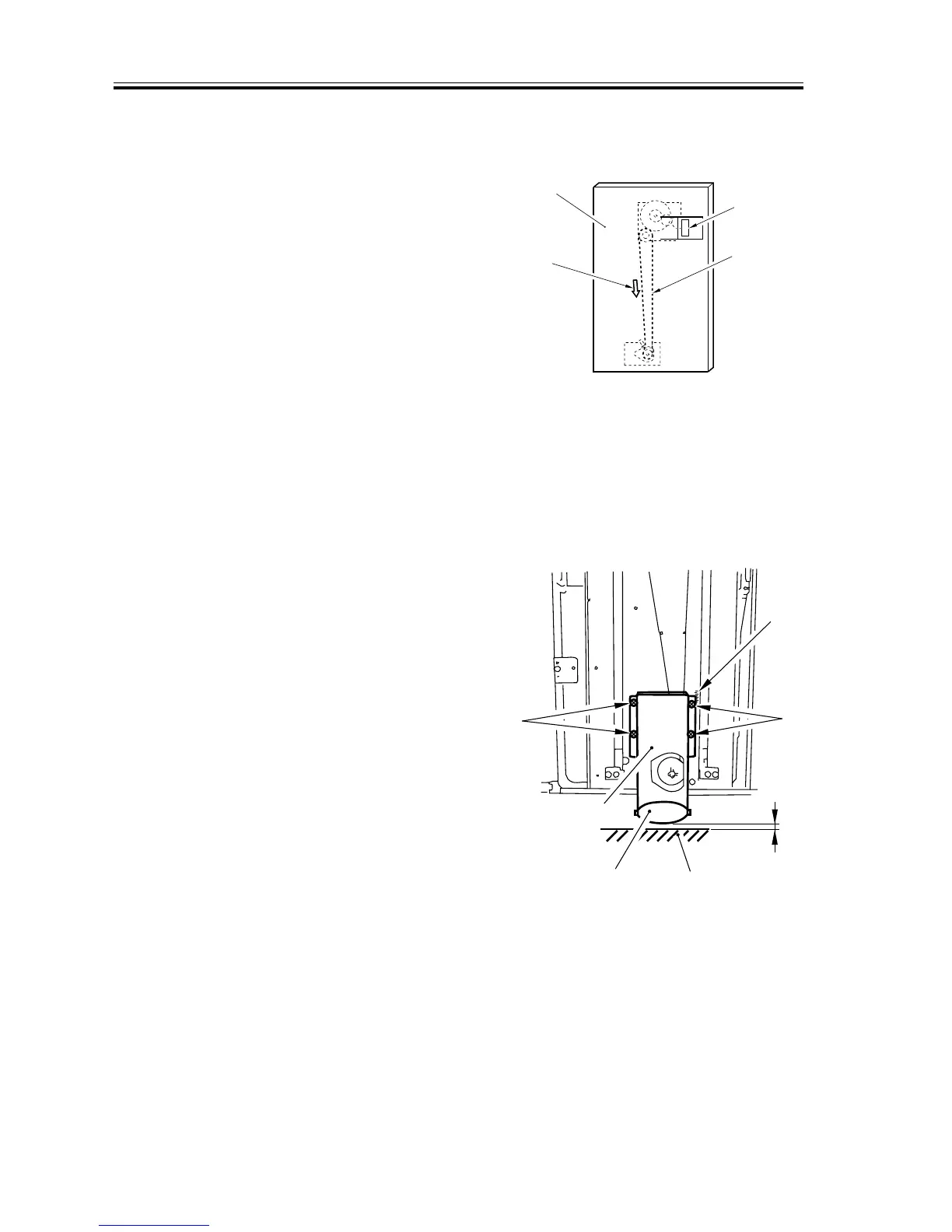

1) Move the drive belt [2] of the paper
level indicator behind the front cover
[1] by hand so that the white area inside
the window [3] increases, i.e., in the di-
rection for the arrow [4]; move it until a
little resistance is felt.
F03-502-01
5.3 Adjusting the Position of the Support Member
If the compartment cannot be opened/
closed smoothly and the position of the sup-
port roller must be adjusted, perform the
following:
1) Remove the front cover.
2) Using the four screws [4] of the roller
support plate [3], make adjustments so
that the support roller [1] and the floor
[2] is about 3 mm when the compart-
ment is fully slid out. (At this time, use
the scale [5] on the front side plate as a
reference.)
F03-503-01
[1]
[2]
[3]
[4]
[4]
[5]
[2]
[1]
[3]
A
[4]
