COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-24 P
4 Identifying the Size of Paper
The size of paper inside the cassette may be set using the dial on the cassette. The AB-
setting and the Inch-setting are switched over using the switch found next to the dial.
4.1 Identifying the Size
The dial on the cassette may be set to any of 16 stops.
When the dial is set to an appropriate paper size and the cassette is slid into the machine,
the four cassette size detecting switches recognize the size of the paper based on the result-
ing combination of indentations and protrusions of the size detecting cam.
4.2 AB-/Inch-Setting Switch
The AB-setting and the Inch-setting is switched over using the switch found next to the
dial.
When the cassette is slid into the machine, the cassette side detecting switch recognizes
the paper configuration (AB or Inch)

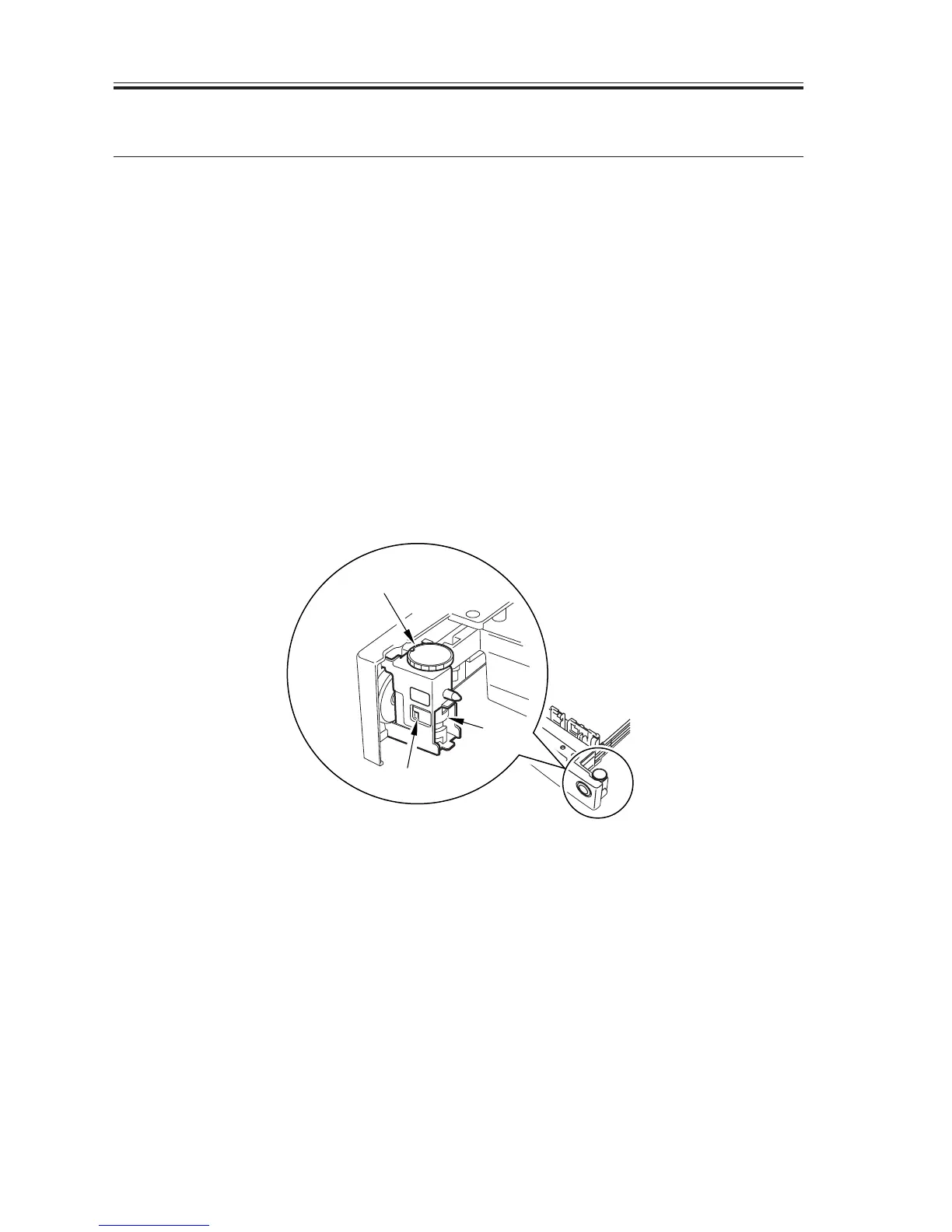

F05-402-01
[1]
[3]
[2]
[1] Dial
[2] AB-/Inch-setting switch
[3] Size detecting cam

Canon iR2200 Specifications

General

Print Technology	Laser
Print Speed	22 ppm
Max Paper Size	A3
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Network Connectivity	Optional
Copy Speed	22 cpm
Scanner Type	Flatbed
Max Print Resolution	600 x 600 dpi
Zoom Range	25% - 400%
