CHAPTER 9 CASSETTE FEEDING UNIT-W1
9-14 P
5.3 PCBs
5.3.1 Removing the Cassette Size Detection Unit
1) Remove the cassette 3/4.
2) Fit a flat-blade screwdriver [2] into the
opening in the inner cover [1], and free
the two claws [3] to detach.

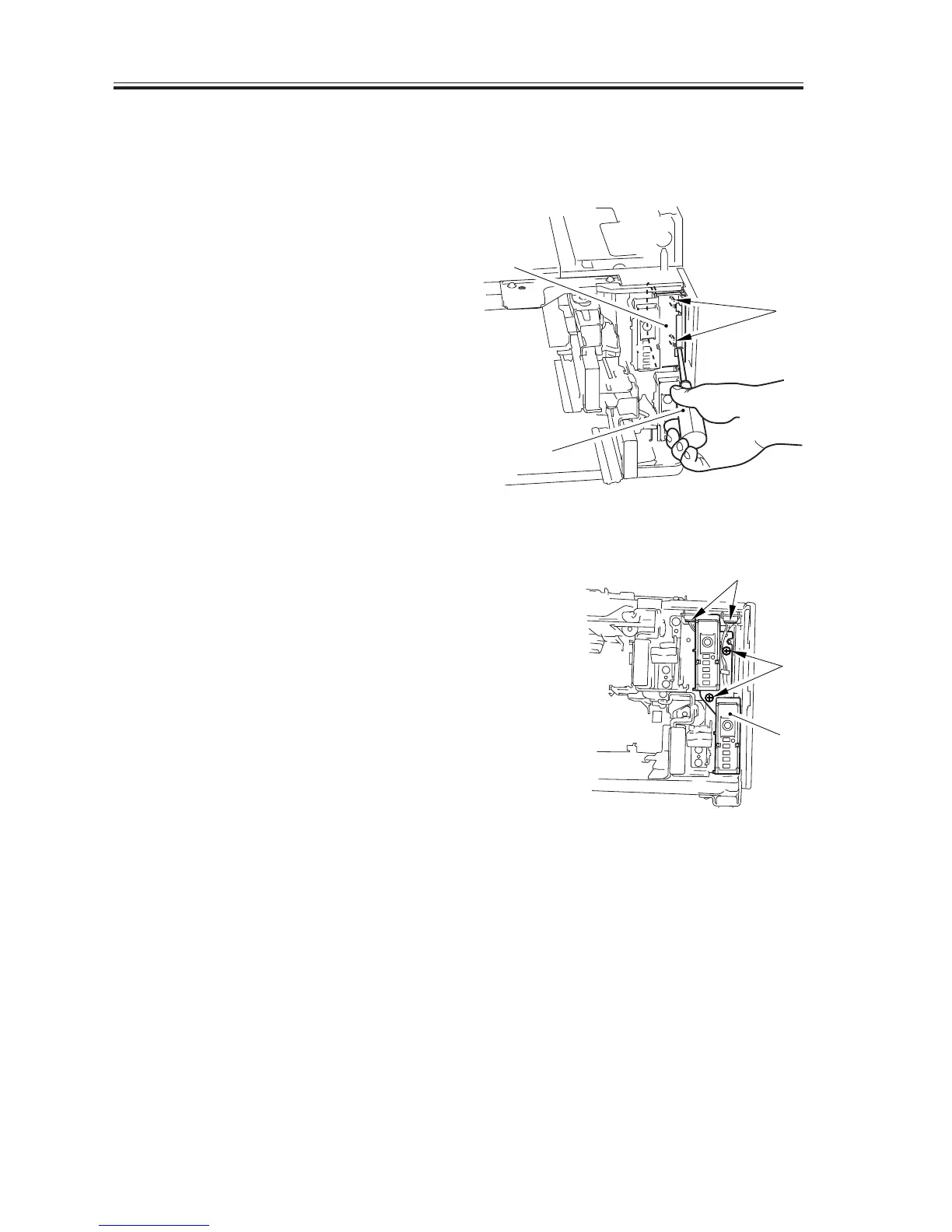

F09-503-01
3) Remove the two screws [1], and slide
the cassette size detection unit [2] to the
front to detach.
4) Disconnect the two connectors [3].
5) Remove the cassette size detection unit.
F09-503-02
[2]
[1]
[3]
[1]
[2]
[3]
