Canon LBP7660Cdn

To Next Page

To Previous Page

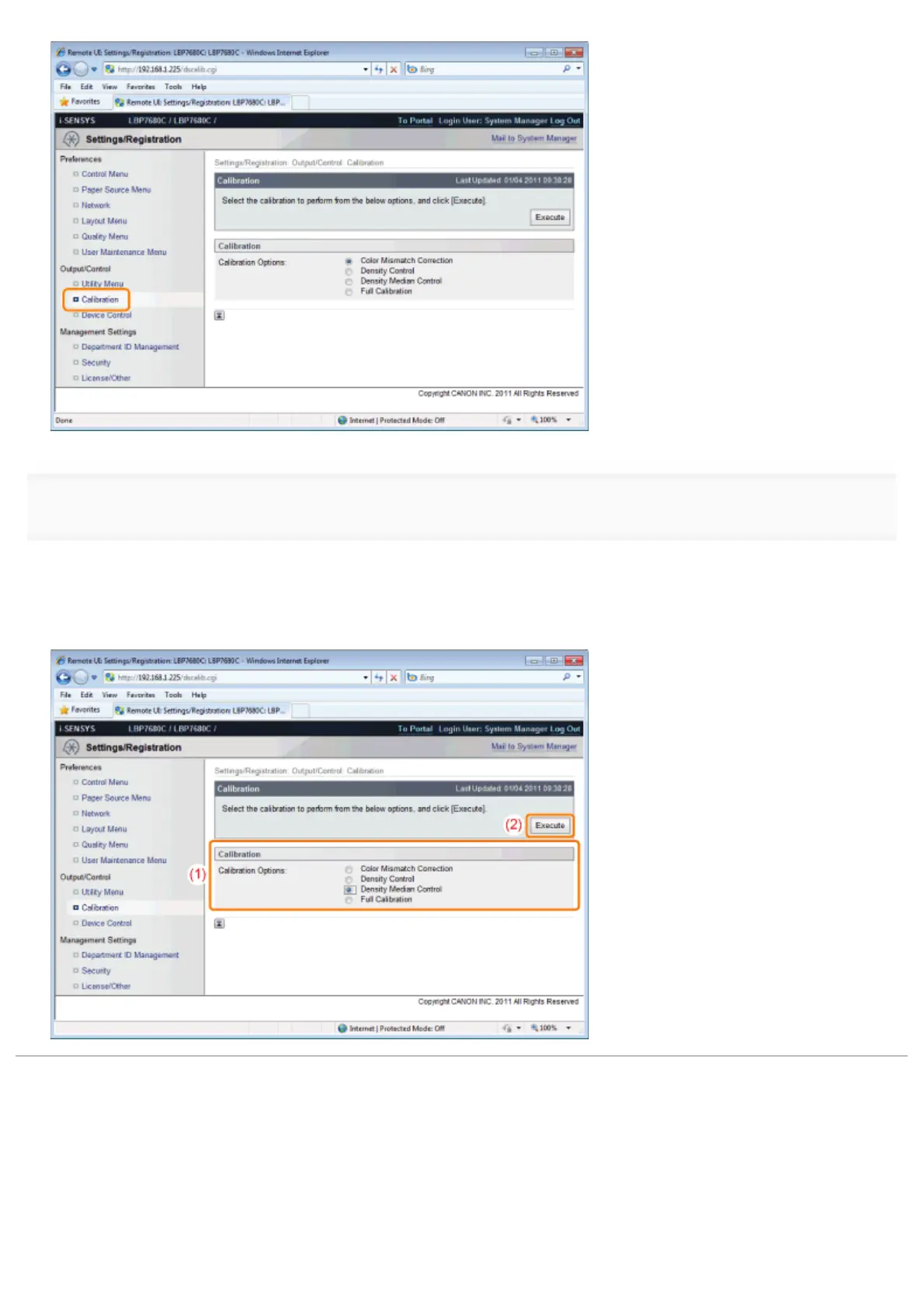

Perform calibration.

(1) Select the calibration which you want to perform.

(2) Click [Execute].

ĺ Calibration is performed.

㻤㻡㻌㻛㻌㻥㻥㻤
