133
Appendix
Appendix
You can shoot or play back images on a television with the supplied
AV cable.

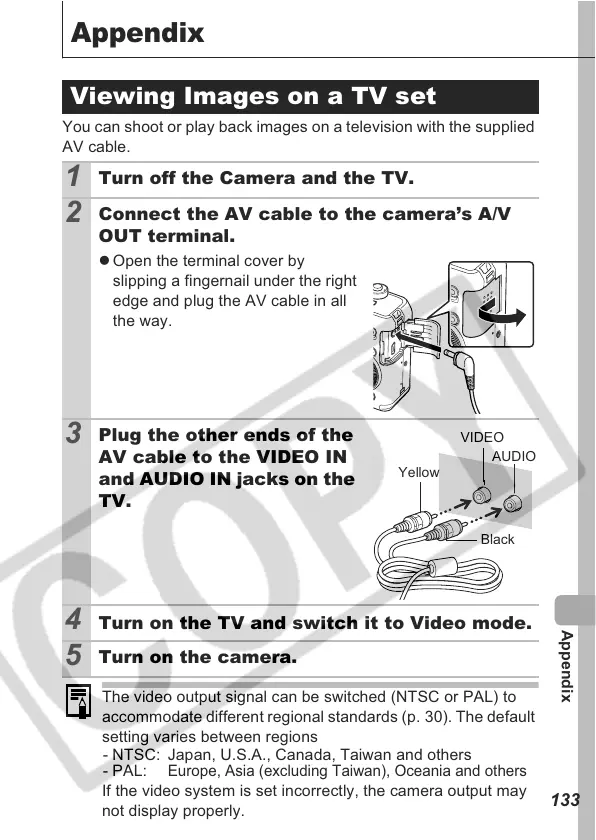

Viewing Images on a TV set
1
Turn off the Camera and the TV.
2
Connect the AV cable to the camera’s A/V
OUT terminal.
z Open the terminal cover by
slipping a fingernail under the right
edge and plug the AV cable in all
the way.
3
Plug the other ends of the
AV cable to the VIDEO IN
and AUDIO IN jacks on the
TV.
4 Turn on the TV and switch it to Video mode.
5
Turn on the camera.
The video output signal can be switched (NTSC or PAL) to
accommodate different regional standards (p. 30). The default
setting varies between regions
If the video system is set incorrectly, the camera output may
not display properly.
VIDEO
AUDIO
Yellow
Black
- NTSC: Japan, U.S.A., Canada, Taiwan and others
- PAL:
Europe, Asia (excluding Taiwan), Oceania and others
