6. Open engine hood.
7. Remove line filter cartridge with the oil filter
wrench.
8. Have a new line filter cartridge ready. Apply
clean hydraulic fluid (oil) on the cartridge oil
seal evenly.

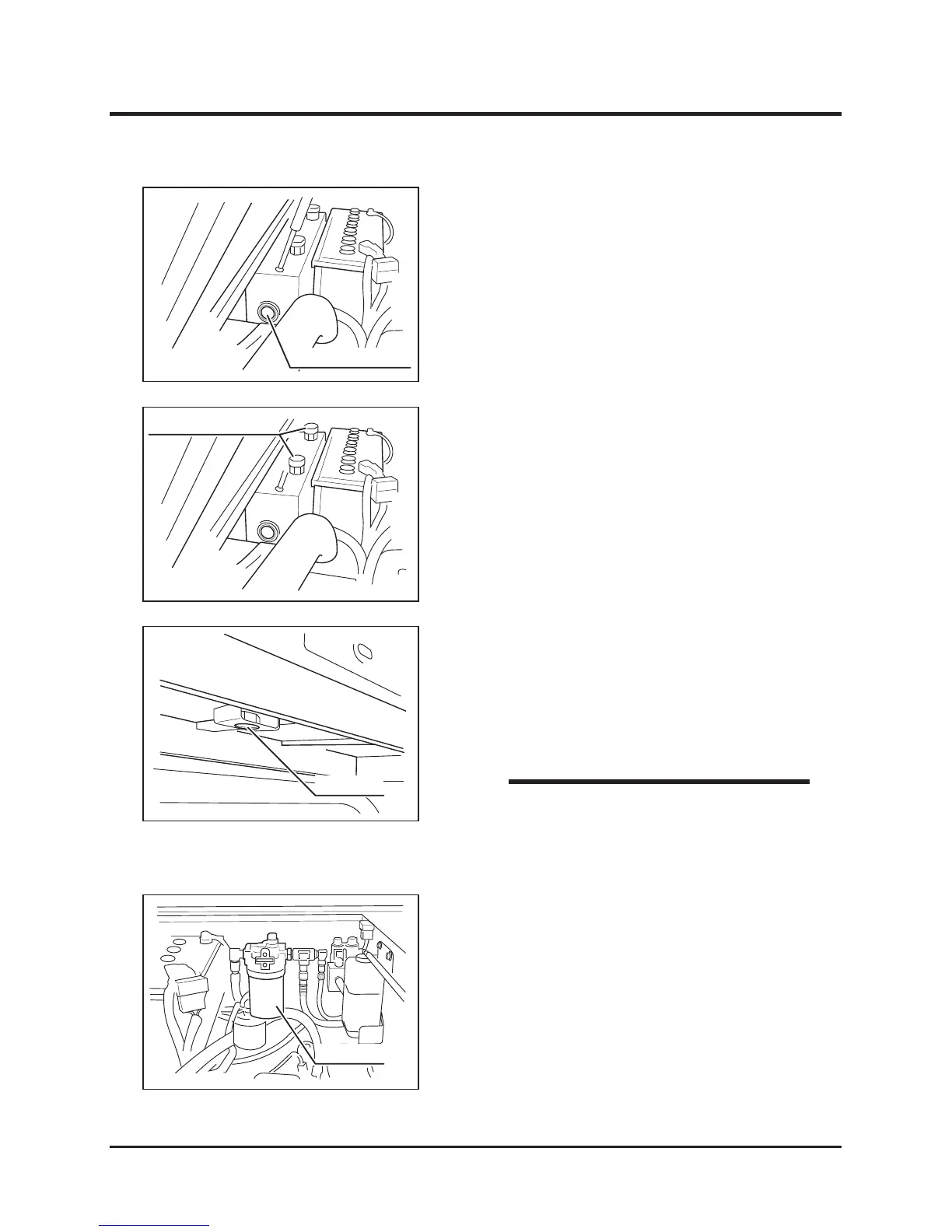

3670M-0505-050E
Drain Plug
3670M-0505-060E
Line Filter
• Replace both line filter cartridge and
suction filter element when hydraulic fluid
is changed.
NOTE
3670M-0505-040E
HST Fluid Filler Caps
1. Park machine on the level ground.
2. Have an appropriate oil drain pan.
3. Remove drain plug to drain fluid.
4. Install drain plug.
Changing
3670M-0505-030E
Fluid Level Window
3. Visually inspect oil level window.
4. If the level is low, open filler cap and fill fluid.
Put filler cap back in place.
5. Start and run engine for a while to circulate
the fluid. Then, stop engine.
6. Visually inspect fluid level to be within the
fluid level window.
7. Close engine hood.
