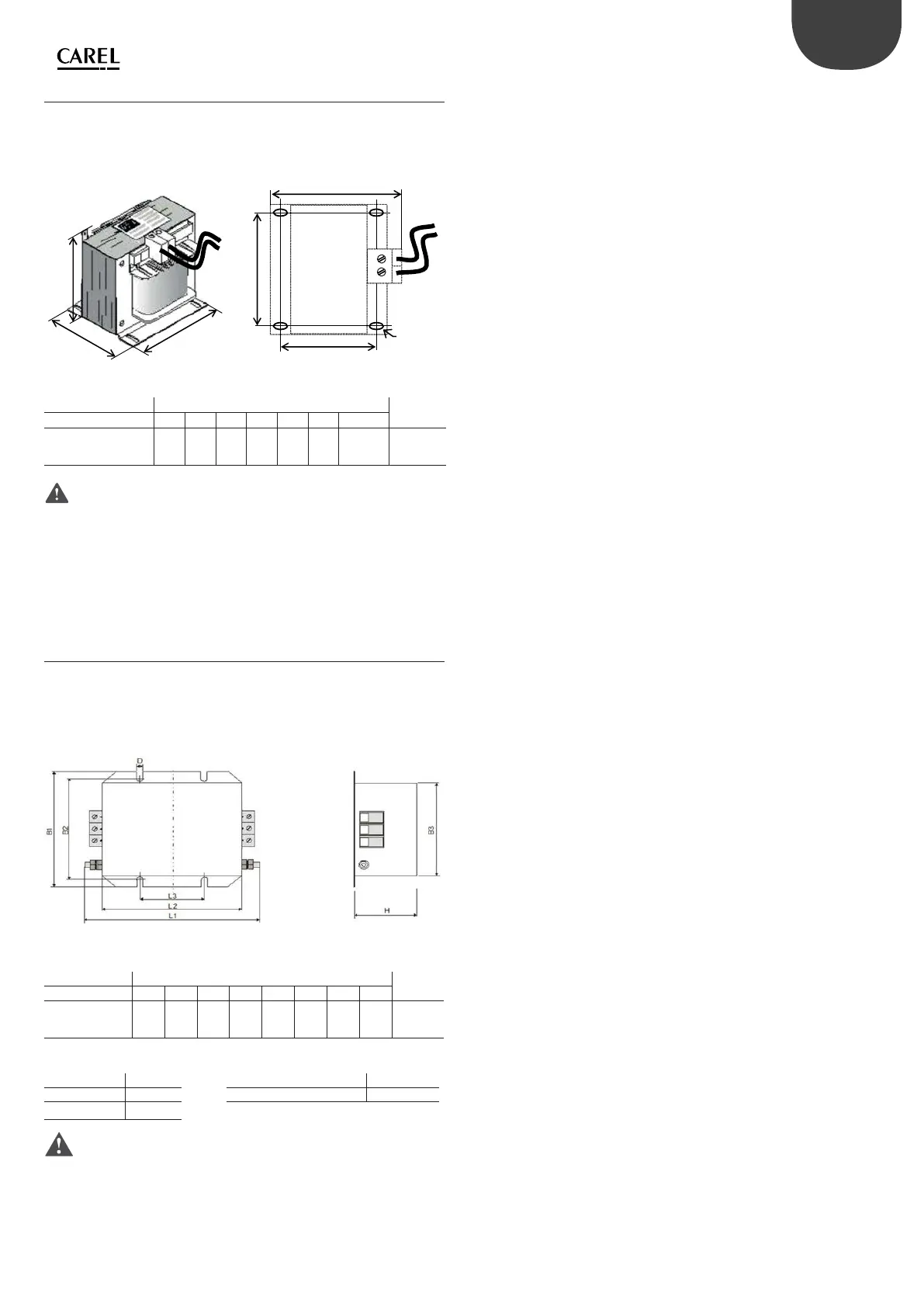

3.13 DC choke
The DC choke is an optional that can be supplied separately to be used with
the Power+ drives with three-phase power supply (PSD00**4*0) to reduce
the harmonic currents to the levels envisioned by EN61000-3-12.
The choke has four holes for xing to the wall.
G
A
B
C
D
F
E
Fig. 3.z
Dimensions (mm) Weight
(kg)
DC choke code A B C D E F G (diam)
PSACH10000
PSACH10100
86 96 98 94 84 71 5 2,7
Attention:
• Position the choke as near as possible to the drive in a way to minimise
connection cable length (max 2m).
• For connection to the drive use cables with section at least equal to the
power supply cable.
• Envision the space necessary for connection of the cables to the choke
terminals.
3.14 EMI lter
The EMI lter is an optional that can be supplied separately to be used with
Power + drives with single-phase power supply (PSD00**2*0) to reduce the
emissions to the levels envisioned by EN61800-3 category C1.
The lter must be connected between the power supply and terminals L1/L,
L2/N and earth of the drive.
Fig. 3.aa
Dimensions (mm) Weight
(kg)
EMI lter code L1 L2 L3 B1 B2 B3 H D
PSARF10000
(CNW102.1/30)
180 150 90 98 88 70 70 5 1,3
Technical speci cations
Current 30A Leakage current < 3,5mA
Voltage 250V Connection by terminal 4mm
2
Temperature 60°C
Attention:
• Connect power supply cable and drive as shown on the label.
• Position the lter as near as possible to the drive in a way to minimise
connection cable length.
• Connect the lter metal casing to earth.
