TEST ACTUATORS
System manager
- Machine configuration
- Machine parameters
- System clock programming
- Display regulation
- Service
- Smart card manager
- Change password
- Group manual movements
- Boiler draining
- Alarm history
- Preset configuration data
- System backup

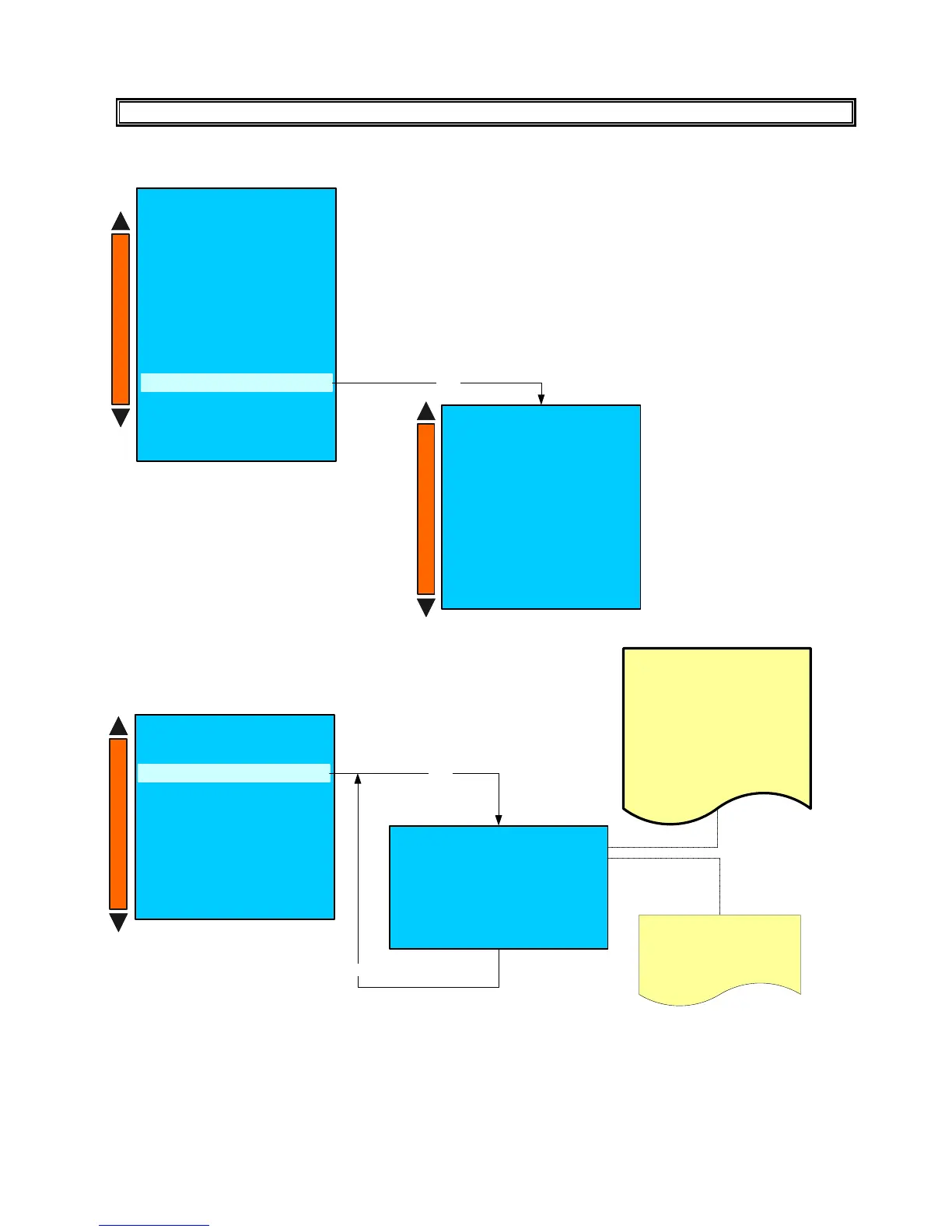

Test actuators
Test actuators
- Actuators 1
- Actuators 2
- Actuators 3
- Milk pump
- Mixer A
- Dispenser A
- Exhaust fan
- Electronic fan
Enter
Test actuators
- Actuators 2
- Actuators 3
- Milk pump
- Mixer A
- Dispenser A
- Exhaust fan
- Electronic fan
Actuators 1
Actuators 1
Enter
Test Actuators
T 1 Pump
T 2 Grinder 1
T 3 Grinder 2
T 4 Group solen valve 0
T 5 By-pass – Hot water s.v
PRESS A DOSE KEYS BETWEEN T1
TO T6 TO ACTIVATE THE ACTUATOR
THAT YOU WISH TO CHECK.
PRESS THE SAME DOSE KEY TO
STOP THE ACTIVATED ACTUATOR
FROM WORKING.
THE THREE DIGITS N°. NEXT TO
GROUP SOLENOID VALVE
INDICATES THE FLOW METER
COUNTING.
WARNING : press INFO key to
display the actuators legend
and relevant connectors on
master board.
