6540 Series Operations Manual Rev_I 1/12/2016 14
Chart Recorder (optional)
The circular chart recorder (REC203 and REC204) monitors and records UVA light intensity, VIS light
intensity, temperature and humidity (optional). The mounting brackets can be used to mount the recorder on
a wall. Connect the chart recorder signal and power cables into the back of the chamber. Electrical ratings
for the power outlet receptacle are:
115V, 60Hz (models 6540-1, 6545-1)
208/230V, 60Hz (models 6540-2, 6545-2)
230V, 50Hz (models 6540-3, 6545-3)

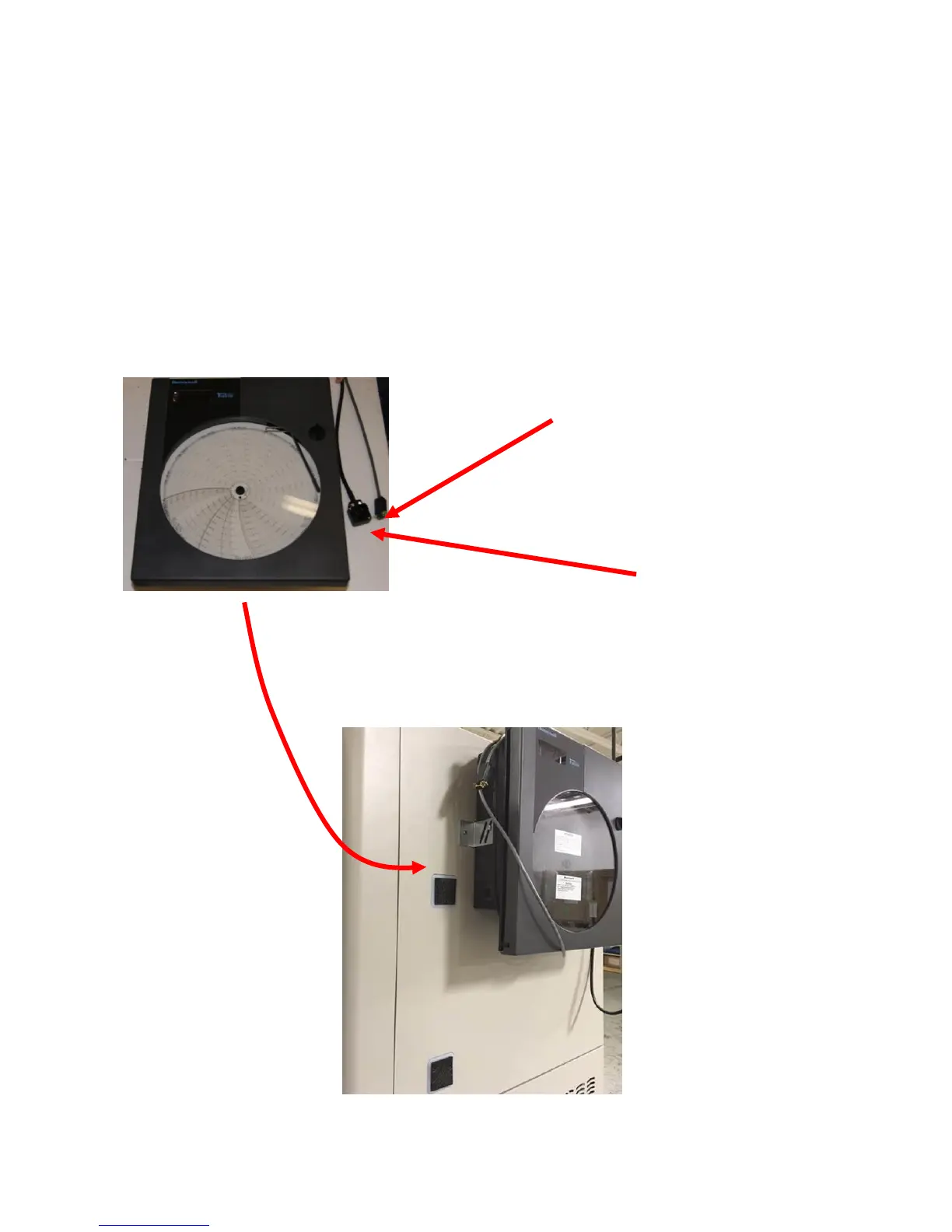

Chart recorder
signal plug
power plug
Install recorder on
right side of cabinet
