Revised 05/09/2024 Page 12

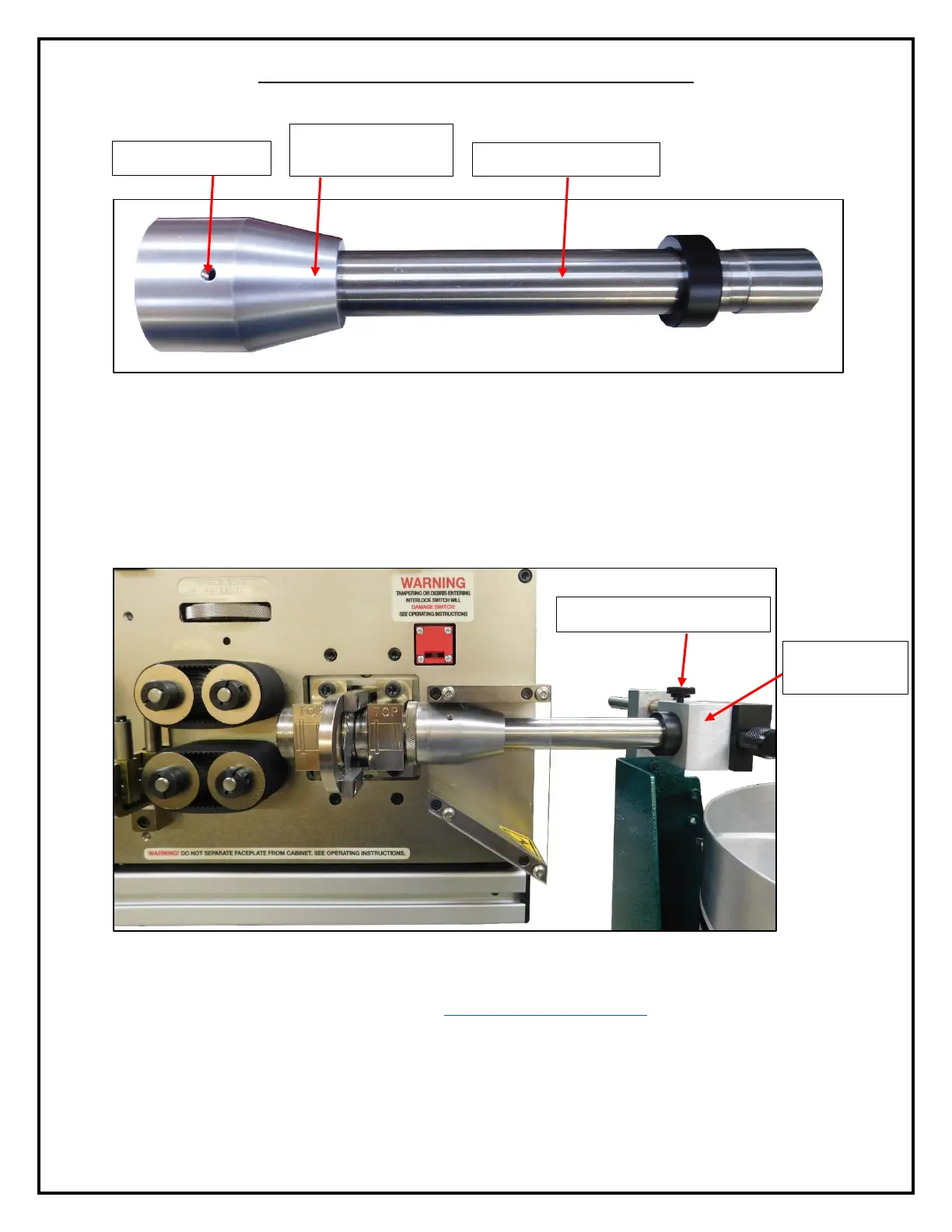

Figure 5: PN 8671 Straight Tube Adapter Fastened to PN 8672 Straight Tube
3. Screw and tighten the threaded portion of the PN 8671 straight tube adapter onto the
threaded Model 36A/36B or Model 360 output guide.
4. Bring the Model 860 to the PN 8672 straight tube and place the open end of the PN 8672
straight tube inside the PN 8669 tube pivot block and tighten with the PN 4849 screw
assembly.
Figure 6: Positioning the Model 860 (Model 36A/36B or Model 360)
Note: If height adjustments are necessary for the Model 860, before final positioning, loosen the
height adjustment locking nut, shown in the Assembling the Model 860 section of the operator’s
manual, and spin the unit to the desired height. Retighten the height adjustment locking nut to
lock the height in place.
