VENT TERMINAL.
® AIR SUPPLY INLET
25-24-65-2
AREA WHERE TERMINAL IS NOT PERMITED
ltern Clearance Descriptions Canadian Installation (1) U.S. Installation (2)
A Clearance above grade, veranda, porch, deck, balcony, or 12 inches (30cm) # 12 inches (30 cm)
anticipated snow level
B Clearance to a window or door that may be opened 6 inches (15 cm) for appliances S 10,000 Btuh (3 KW) 4 feet(1.2 m) below or to the side of the opening. 1 foot(30 cm
12 inches ( 30 cm) for appliances > 10,000 Btuh (3 kW0) above the opening.
and © 100,000 Btuh (30 kW), 36 inches (91 cm) for
appliances > 100,000 Btuh (30 kW)
Cc Clearance to a permanently closed window * *
D Vertical clearance to a ventilated soffit located above the * *
terminal within a horizontal distance of 2(61cm) from the
centerline of the terminal
E Clearance to an unveniilated soffit * *
F Clearance to an outside corner * *
G Clearance to an inside corner * *
H Clearance to each side of the centerline extended above 3 feet (91 cm) within 15 feet(4.5 m) above the meter/regulator | 3 feet (91 cm) within 15 feet (4.5 m) above the meter/regulator|
electrical meter or gas service regulator assembly assembly assembly
I Clearance to service regulator vent outlet 3 feet (91 cm) *
J Clearance to non-mechanical air supply inlet to building or [6 inches (15 cm) for appliances S 10,000 Btuh (3 kW) 4 feet(1.2 m) below or to the side of opening: 1 foot (30 cm)
the combustion air inlet to any other appliance 12 inches ( 30 cm) for appliances > 10,000 Btuh (3 kWO) above opening.
and S 100,000 Btuh (30 kW)
36 inches (91 cm) for appliances > 100,000 Btuh (30 kW)
K Clearance to a mechanical air supply inlet 6 feet(1.83 m) 3 feet{91 cm) above if within 10 feet (3 m horizontally)
L Clearance under a veranda, porch, deck, or balcony 12 inches(30 cm) + *
M Clearance to each side of the centerline extended above or * *
below vent terminal of the furnace to a dryer or water heater
vent, or other appliance’s direct vent intake or exhaust.
N Clearance to the vent terminal of a dryer vent, water heater | * *
vent, or other appliances direct vent intake or exhaust.
oO Clearance from a plumbing vent stack * *
P Clearance above paved sidewalk or paved 7 feet (2.13) 7 feet (2.13m)
driveway located on public property
(1.) In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code
(2.) In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
# 18° (46 cm) above roof surface
+ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
*
ke
Notes:
1
For clearances not specified in ANSI 2223.1/NFPA 54 or CSA B149.1, clearances shall be in accordance with local installation codes and the requirements of the gas supplier and the
Manufacturer's installation instructions.
The vent for this appliance shall not terminate
a. Over public walkways; or
A vent shall not terminate above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.
b. Near soffit vents or crawl space vents or other areas where condensate or vapor could create a nusiance or hazard or property damage; or
c. Where condensate vapor could cause damage or could be detrimental to the operation of regulators, relief valves, or other equipment.
When locating vent terminations, consideration must be given to prevailing winds, location, and other conditions which may cause recirculation of the combustiob products of adjacent vents.
Recirculation can cause poor combustion, inlet condensate problems, and accelerated corrosion of the heat exchangers.
Avoid venting under a deck or large overhang. Recirculation could occur and cause performance or system problems.

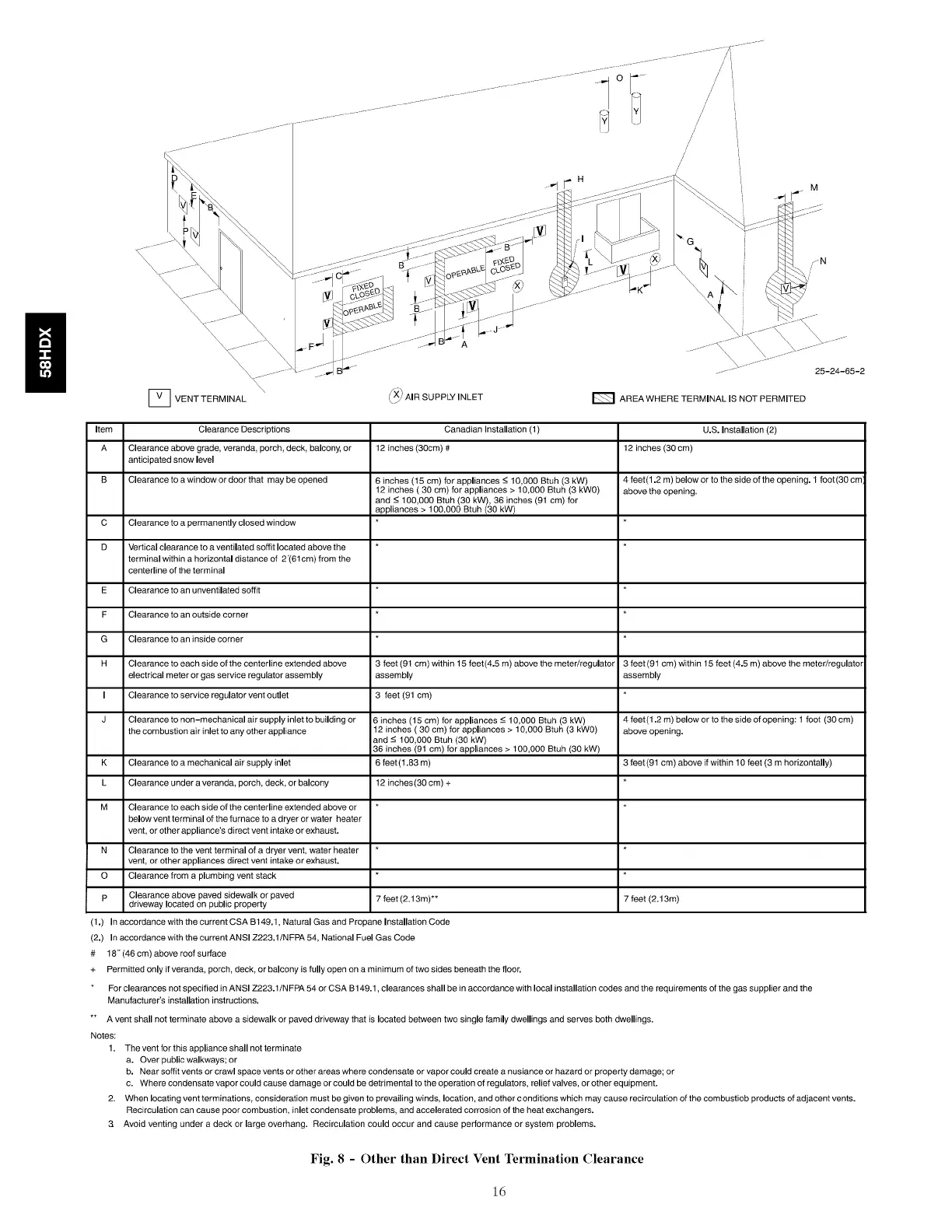

Fig. 8 - Other than Direct Vent Termination Clearance
