Carrier RG2059 Series - Figure 2.1 Generator Set; Figure 2.2 Generator Set - Top Cover Removed; Figure Number

T-361 2–2

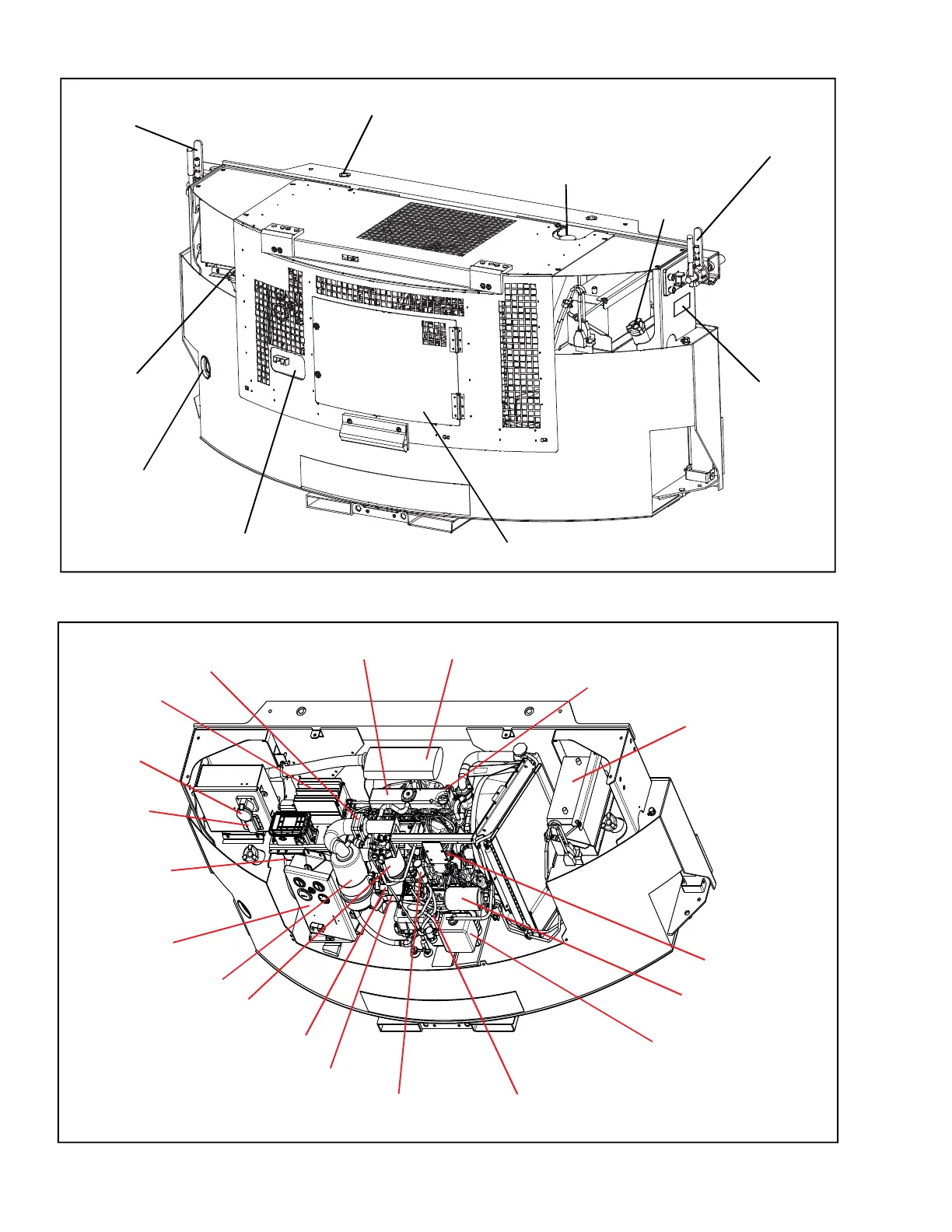

Figure 2.1 Generator Set
Figure 2.2 Generator Set - Top Cover Removed
Fuel Cap
Mounting Clamp
(Optional)
Radiator Cap
Unit Model,
Serial &PID
Plate
Control Box
Fuel Gauge
(Either Side)
Access Door
Mounting Pin
Fuel Cap
Mounting Clamp
(Optional)
Battery Charger
Intake Heater (IH)
Engine
Exhaust Muffler
Inject Pump
Water Temp Sender
Battery
Engine Oil Filter
Coolant Recovery Bottle
Lube Oil Dip Stick/Fill Cap
Mechanical Fuel Pump
Starter Motor
Fuel Filter
**Fuel Heater
Air Cleaner
Control Box
& Panel
AC Generator
Circuit Breaker
(CB1)
Receptacle
** If equipped
