Carrier SmartVu control User Manual

SRDC-UG-2-14-000
REVISION
DATE
PAGE
19 Series Carrier®
SmartVu
TM
–
Controls IOM
2.3
Dec 4, 2020
13 OF 168
13

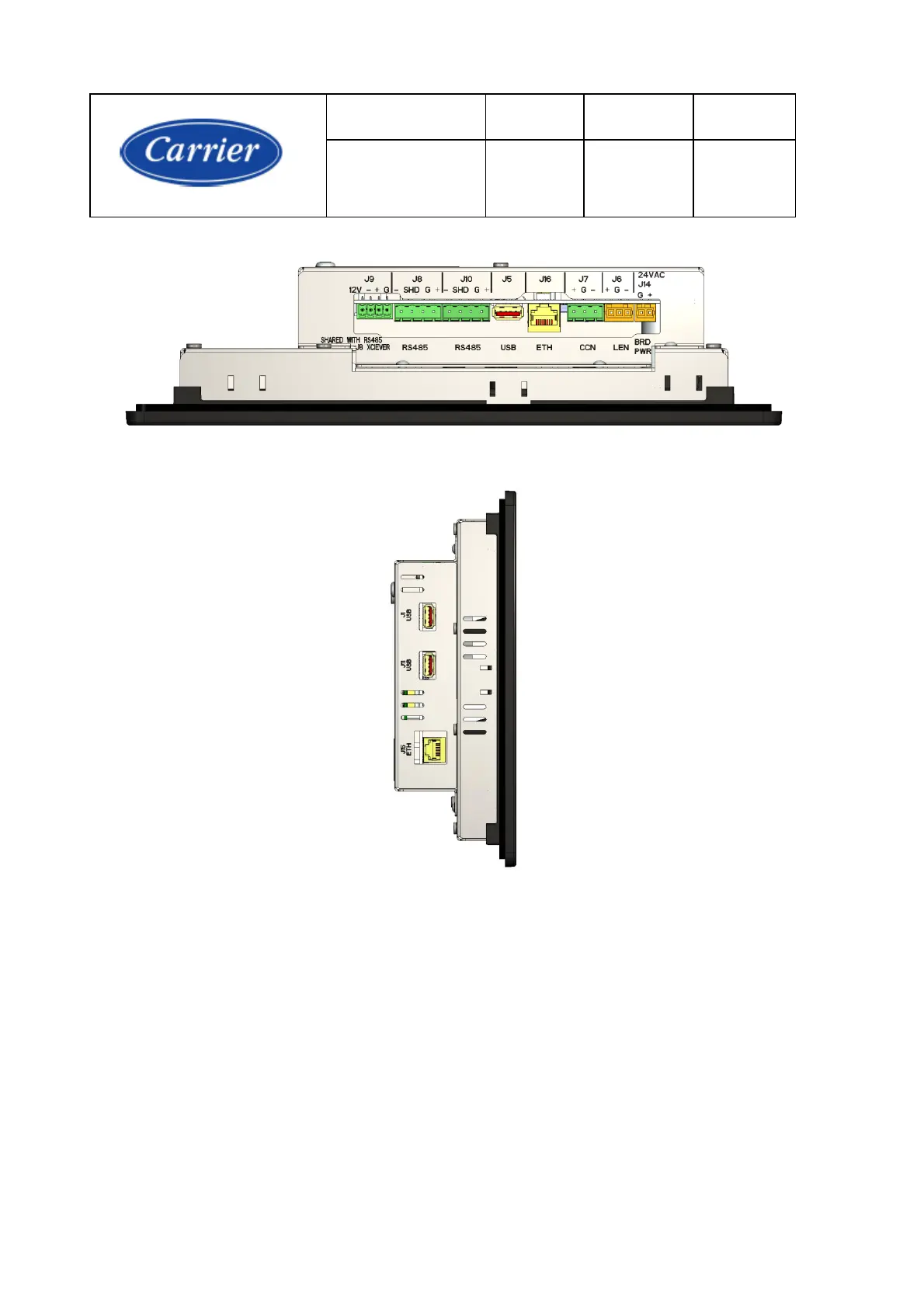

Figure: 19 Series Carrier® SmartVu
TM
Control - View From Below
Figure: 19 Series Carrier® SmartVu
TM
Control - View From Side
Legend:
J1: Reserved
J5: Reserved
J6: LEN connector，LEN/485 - IOB/SIOB, ISM, …
J7: CCN connector，CCN/485 - BMS, Network service tool, WebCTRL
J8: Modbus/RTU Slave*, BACnet/mstp **
J9: Reserved
J10: RS485，Modbus/RTU Master
J11: USB WIFI Dongle - Connectivity
J14: Power supply connector (24 VAC)
15: Ethernet port 0 (Default IP: 169.254.1.1, mask: 255.255.0.0)
BACnet/IP
Modbus/IP
CCN/IP
Carrier Proview (firmware upgrade)
