8

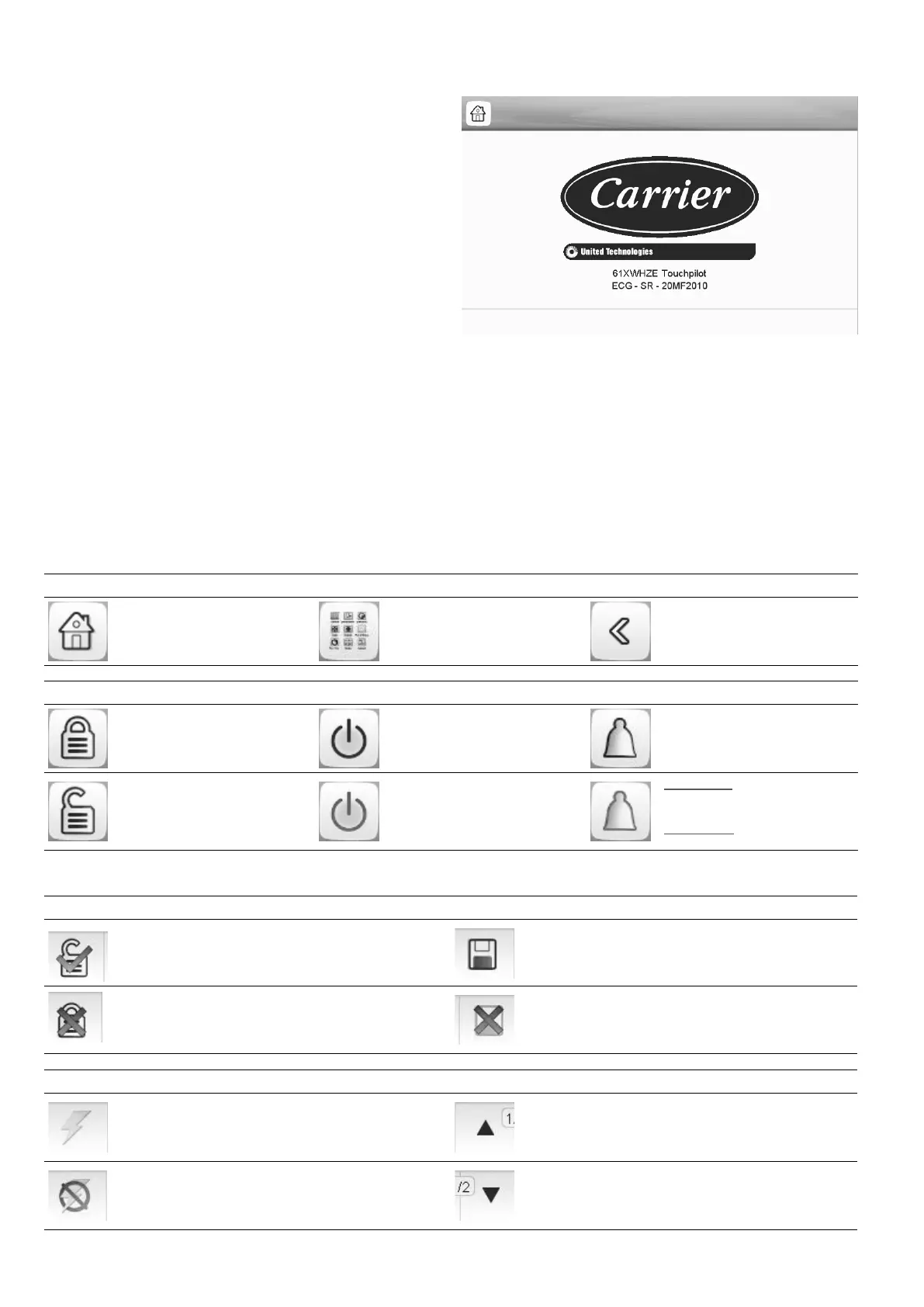

4 - TOUCH PILOT USER INTERFACE
4.1 - General description
Touch Pilot includes the 5 in. touch screen allowing for easy
system control. It is recommended to use a pen for the
the touch screen interface or by connecting to the web
connection methods. Only two web connections are
authorised at the same time.
Touch Pilot provides access to the following screens:
• Welcome screen (splash screen)
• Synoptic screen
• Operating mode selection screen
•
• Password entry and language selection screen
• Alarms screen
•
• Time schedule screen
• Trendings
IMPORTANT:
If the user interface is not used for a long period, the Welcome
screen is displayed, and then it goes blank.
The control is always active and the operating mode remains
unchanged. Press anywhere on the screen and the Welcome
screen will be displayed.
4.2 - Buttons
HOME SCREEN
Home button Main Menu button Back button
Home screen displayed Main Menu displayed Go back to the previous screen
Login button Start/Stop button Alarm button
Basic access Unit is stopped No alarm active on the unit
User access
Unit is running
(green icon)
Blinking icon: Partial alarm (one
circuit aected by the alarm) or Alert
(no action taken on the unit),
Steady icon: Alarm(s) active on the
unit (see also section 8.6)
OTHER SCREENS
Login screen Parameters screen(s)
Login: Conrm advanced access login Save changes
Logout: Reset the user level access
and go to the splash screen
Cancel your modications
Force screen (override) Navigation buttons
Set force: Override the current command
(if possible)
Displayed when the menu includes more than one page:
Go to the previous page
Remove force: Remove the forced command
Displayed when the menu includes more than one page:
Go to the next page
