4.D CHANNEL SETTINGS
Pressing a CHANNEL button (A/1, B/2, C/3, D/4) will cycle through 3 display
modes:
- MAIN SCREEN: displays System name and Mute status.
- INPUT: Displays a Channel letter (A, B, C, or D) and graphic EQ.
- OUTPUT: Displays a Channel number (1, 2, 3 or 4) and parameter(s).
In OUTPUT mode, use the Left/Right buttons to move through screens or
to select a parameter to edit.
Use Up/Down to change the value.
Changes are saved when leaving the screen.
Pressing a different channel button will allow you to edit the same
parameter in the next channel without having to go through screens.
If you have not changed the OUTPUT screen selection since power ON the
first OUTPUT screen will be GAIN.
When you leave OUTPUT mode, the same OUTPUT screen will appear first
when returning to the OUTPUT mode.
4.D.1 (INPUT) GRAPHIC EQ
The Graphic EQ affects the incoming signal from the INPUT A, B, (C or D).
,

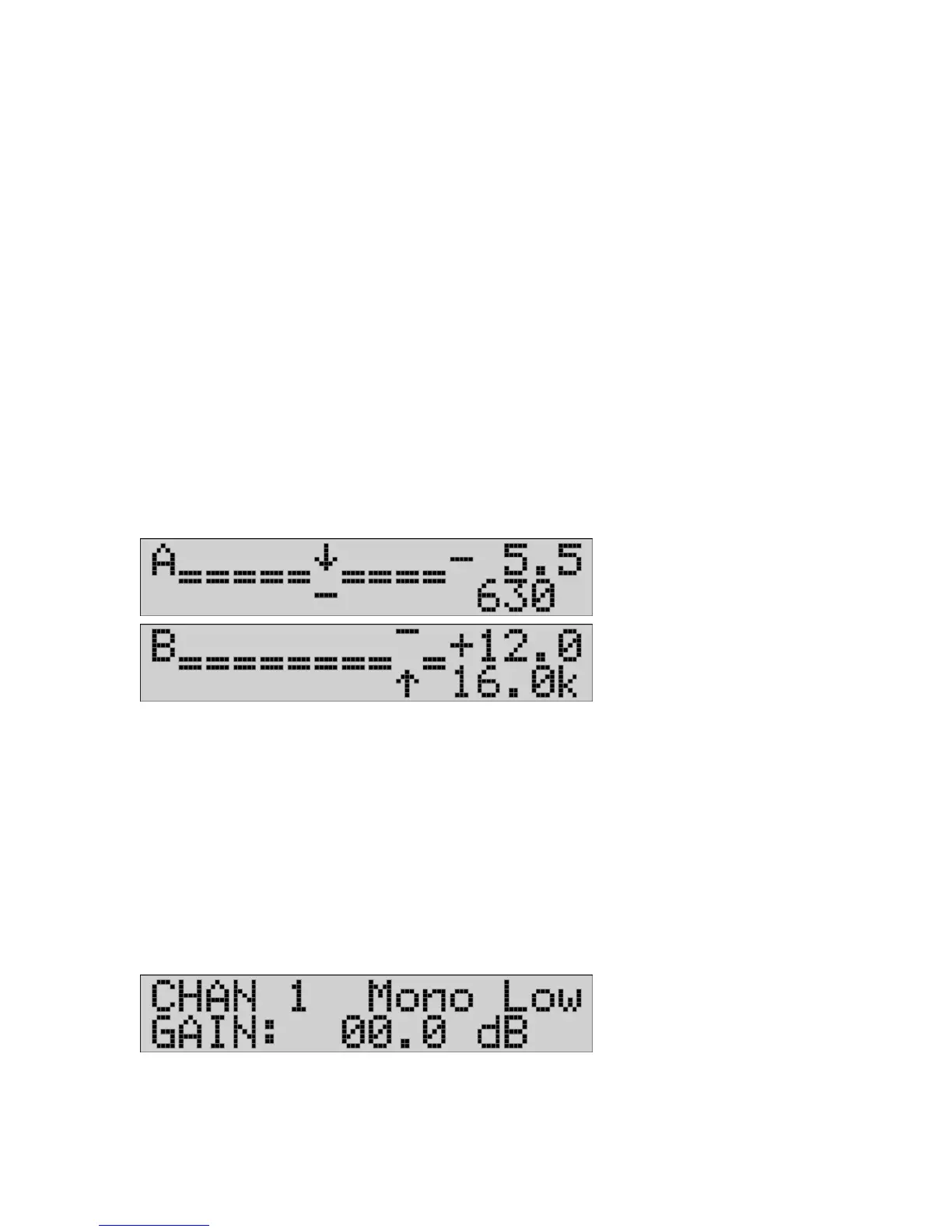

Example: Input A
-5.5dB @ 630Hz
Example: Input B
+12dB @ 16.0kHz
(a.) Press (A/1, B/2, C/
3 or D/4) until the screen above is shown.
(b.) Use Left or Right to select one of the 30 frequency bands.
(c.) Use Up/Down to adjust the level of the selected frequency.
The range is +/-12.0db, in 0.5dB steps.
The arrow indicates the band being adjusted with the horizontal lines
showing approximate levels for each band.
A dual line indicates a 0db flat setting.
*Note that the arrow is always in the center for frequencies 80-8k and only
moves left or right near the ends of the spectrum.
4.D.2 (OUTPUT) GAIN
The GAIN can be set for each output to balance levels between speakers.
Example: Output 1
named “Mono Low”
Gain set to 0dB
(a.) Press (A/1, B/2, C/3 or D/4) to enter OUTPUT mode (CH, Number).
(b.) Press Left or Right until the screen above is shown.
(c.) Use Up/Down to adjust the Gain (volume) of the selected OUTPUT.
The range is +12.0db (max.) to -68.0db (min.) in 0.5dB steps.
13
