CAS CI-2400BS - Page 33

32
ZERO
(OUT 1)
LOW
(OUT 2)
STABLE
(OUT 3)
HIGH
(OUT 4)
WEIGHT
RELAY
0kg 80kg
(LOW limit) (HIGH limit)
100kg

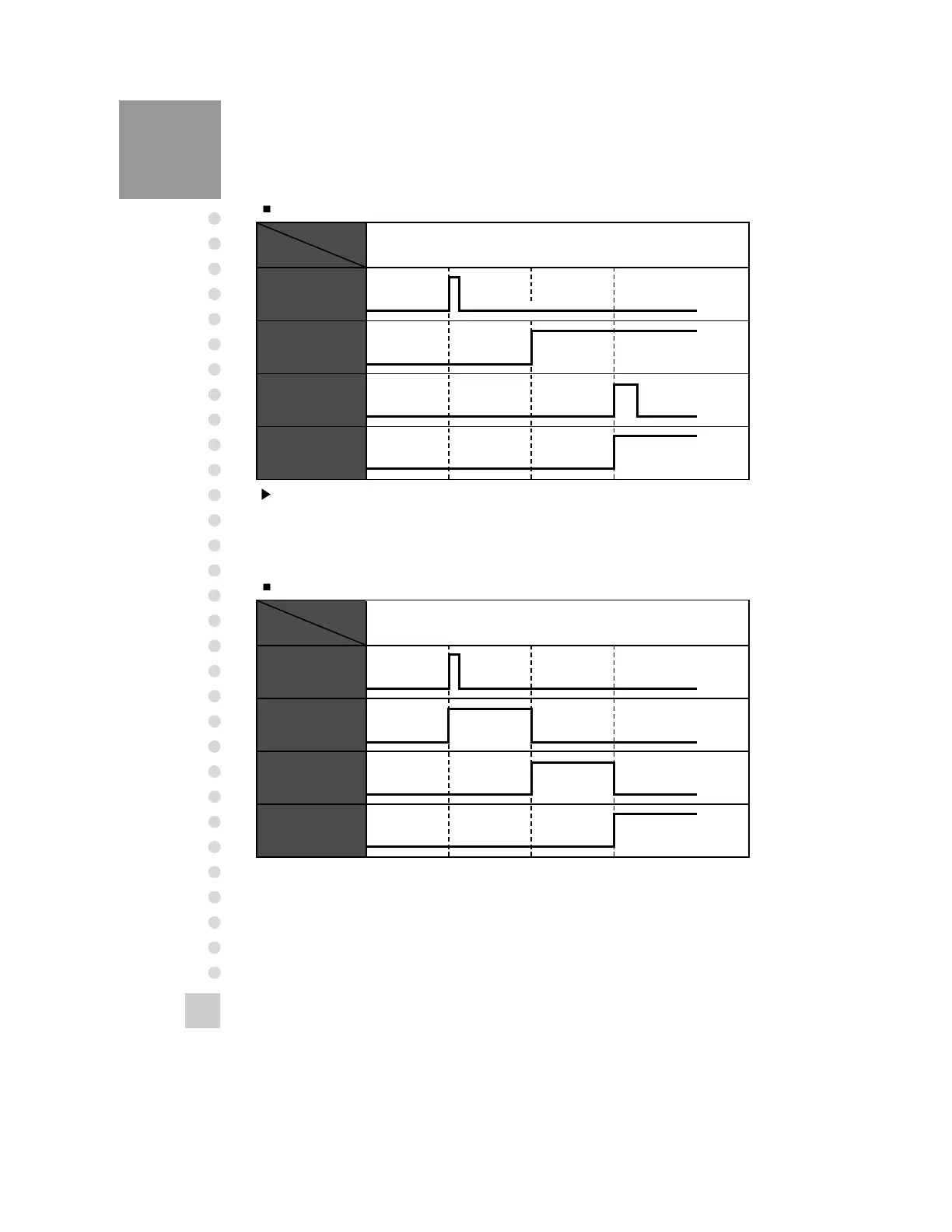

F2000 Limit Mode
ON
ON
ON
ON
OFF
OFF
OFF
OFF
Note 1. ZERO RELAY(OUT 1) : If weight is under 5 division, this will be turned on.
Note 2. LOW, HIGH RELAY(OUT 2, 3, 4) : When weight is over 5 division,
comparing with setting weight value and displaying weight value, it will be
turned ON/OFF.
ZERO
(OUT 1)
LOW
(OUT 2)
NORMAL
(OUT 3)
HIGH
(OUT 4)
WEIGHT
RELAY
0kg 80kg
(LOW limit) (HIGH limit)
100kg
F2001 Limit Type Checker Mode
ON
ON
ON
ON
OFF
OFF
OFF
OFF
