CAS CI-2400BS - Options

48
OPTIONS
Transmit mode: Same as RS-232C interface
Data format: Same as RS-232C
Signal format: Same as RS-232C

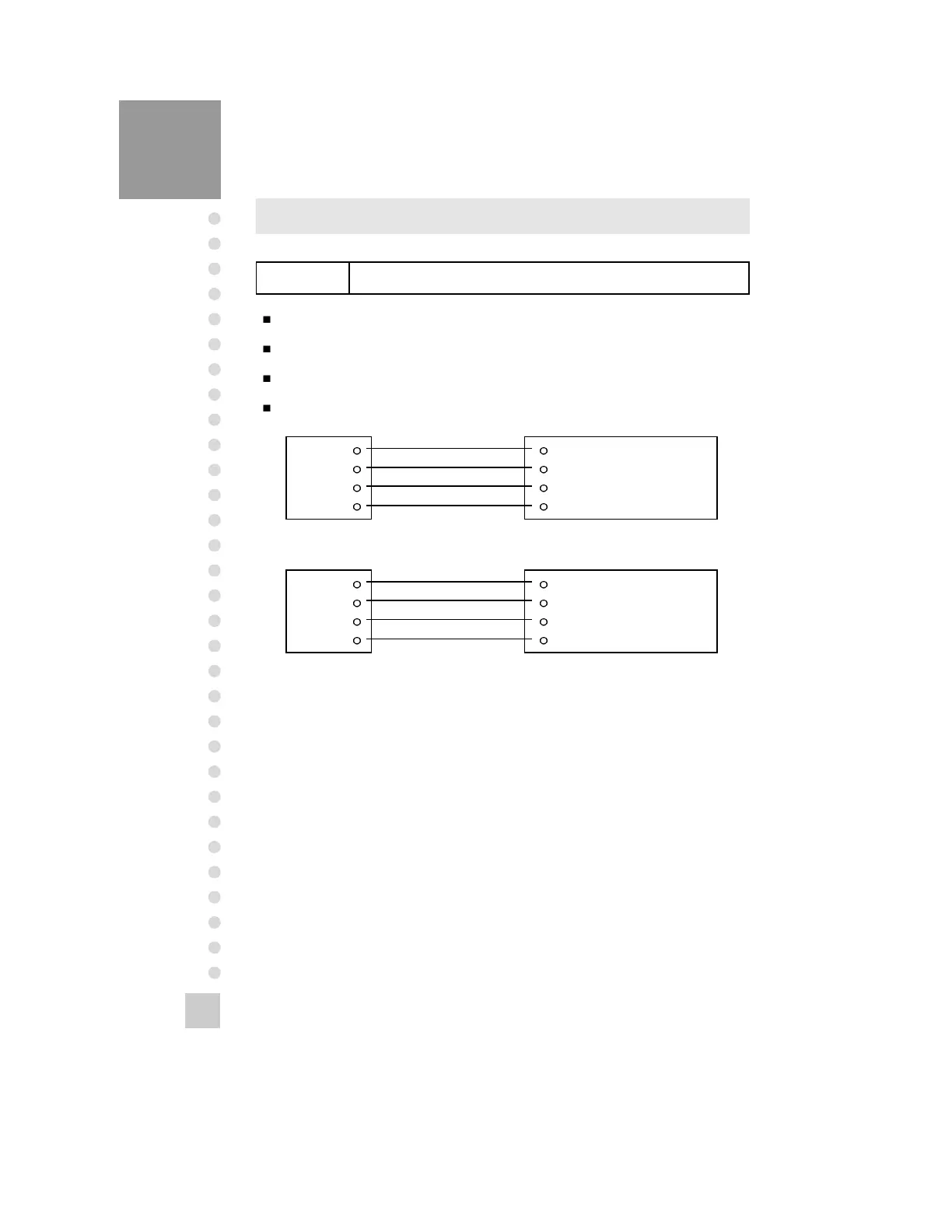

Connecting method of RS-485/422 PORT
OPTION 1 RS-422/485 Serial Interface
IN(+)
IN( - )
OUT(+)
OUT( - )
Transmit Data(+)
Transmit Data( - )
Receive Data(+)
Receive Data( - )
Serial port of Computer
RS485 Port of CI-2400BS
IN(+)
IN( - )
OUT(+)
OUT( - )
6 Transmit Data(+)
4 Transmit Data( - )
5 Receive Data(+)
7 Receive Data( - )
Serial port of Sub-display
RS485 Port of CI-2400BS
