■ Front
General Guide

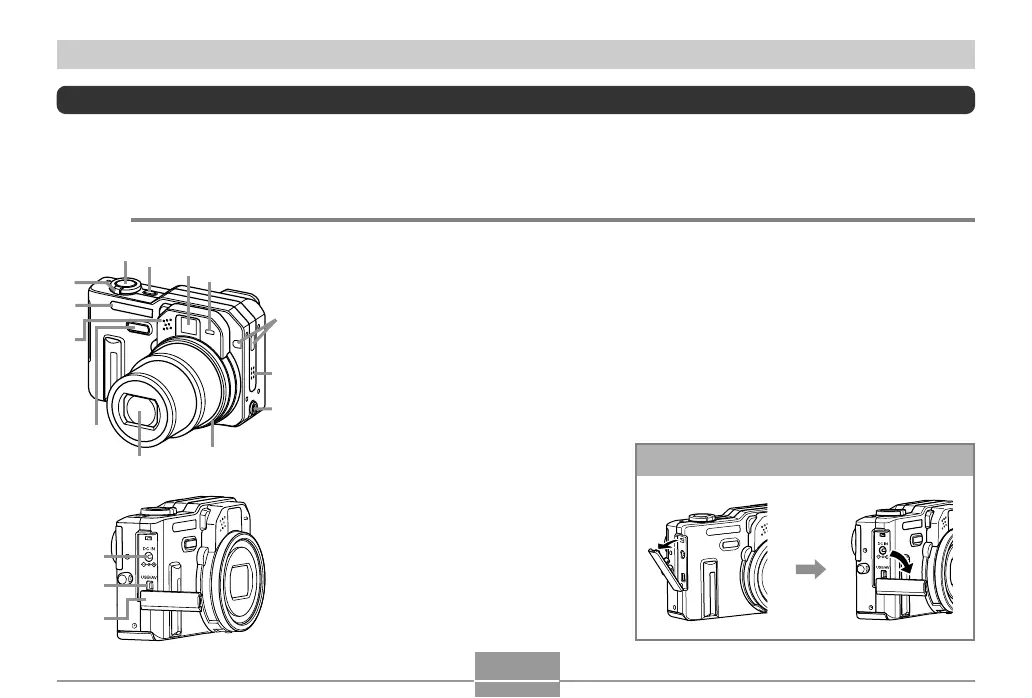

The following illustrations show the names of each component, button, and switch on the camera.
Camera
1 Zoom controller
2 Shutter button
3 Power button
4 Viewfinder
5 Self-timer lamp
6 Remote control signal receiver
7 Speaker
8 External flash sync terminal
9 Lens ring
• Be sure to reinstall the lens
ring on the camera lens when
you are not using a conversion
lens. Optical zoom is possible
only up to about 2X while the
lens ring is not installed
properly.
0 Lens
A Phase differential sensor
B Microphone
C Flash
D [DC IN](AC adaptor connector)
E [USB/AV](USB/AV port)
F Terminal panel cover
Open Terminal Panel Cover
D
E
F
To Next Page
