Casio Privia PX-S7000 User Manual

Changing the Sound During a Performance
EN-65
■ Expression Pedal Calibration
When connecting an expression pedal to the EXPRESSION/ASSIGNABLE jack for the first time,
perform calibration (adjustment) as follows.
1. Connect an expression pedal to the EXPRESSION/ASSIGNABLE jack.
2. Select the “13 KB Setting” of the F button set. See “To change the F Button Set”
(page EN-32).
3. Touch the F3 button (PEDAL).
The “EXP/ASGN. PEDAL” screen appears.
4. Touch the top or bottom of the touch ring to select “Exp Calibration” then touch
the ENTER button.

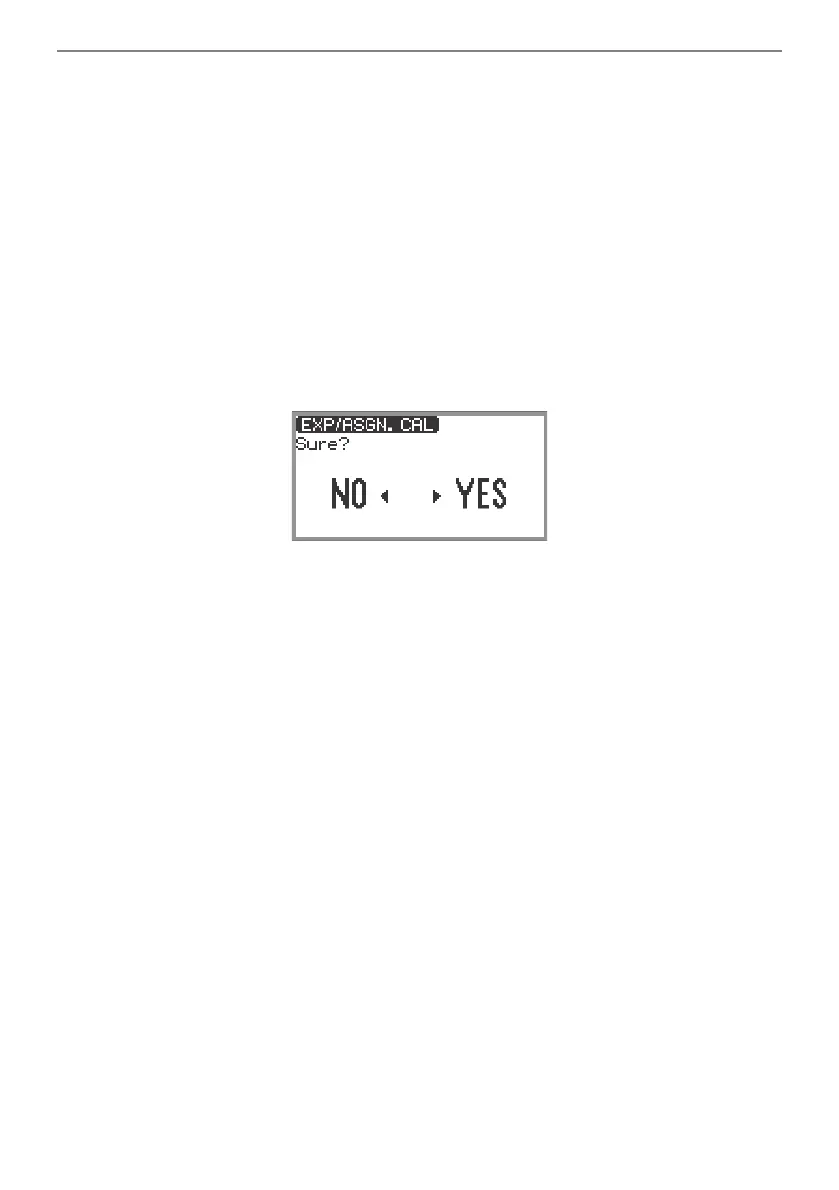

A confirmation screen will appear. To cancel the operation, touch the left (NO) of the touch ring.
5. To start calibration, touch the right (YES) of the touch ring.
6. When “Highest” is displayed, press the toe end of the pedal down as far as it will
go, then touch the ENTER button.
7. When “Lowest” is displayed, press the heel end of the pedal down as far as it will
go, then touch the ENTER button.
When calibration has successfully completed, “Complete” is displayed.

Casio Privia PX-S7000 Specifications

General

Touch Sensitivity	5 sensitivity levels, off
Sound Source	Multi-dimensional Morphing AiR Sound Source
Polyphony	256 notes
Key Action	Smart Hybrid Hammer Action Keyboard
Effects	Reverb, Chorus, DSP, Brilliance
Amplifiers	8W + 8W
Bluetooth	Yes (Audio & MIDI)
Pedals	3 (Damper, Soft, Sostenuto)
Display	LCD with backlight
USB Port	Yes (Type B)
Headphone Jack	2 (Stereo standard)
Dimensions	1340 x 242 x 102 mm (w/o stand, and music stand)
Weight	14.8 kg
Included Accessories	Music stand
Power Source	AC adapter
Number of Tones	400 built-in tones
