— 9 —

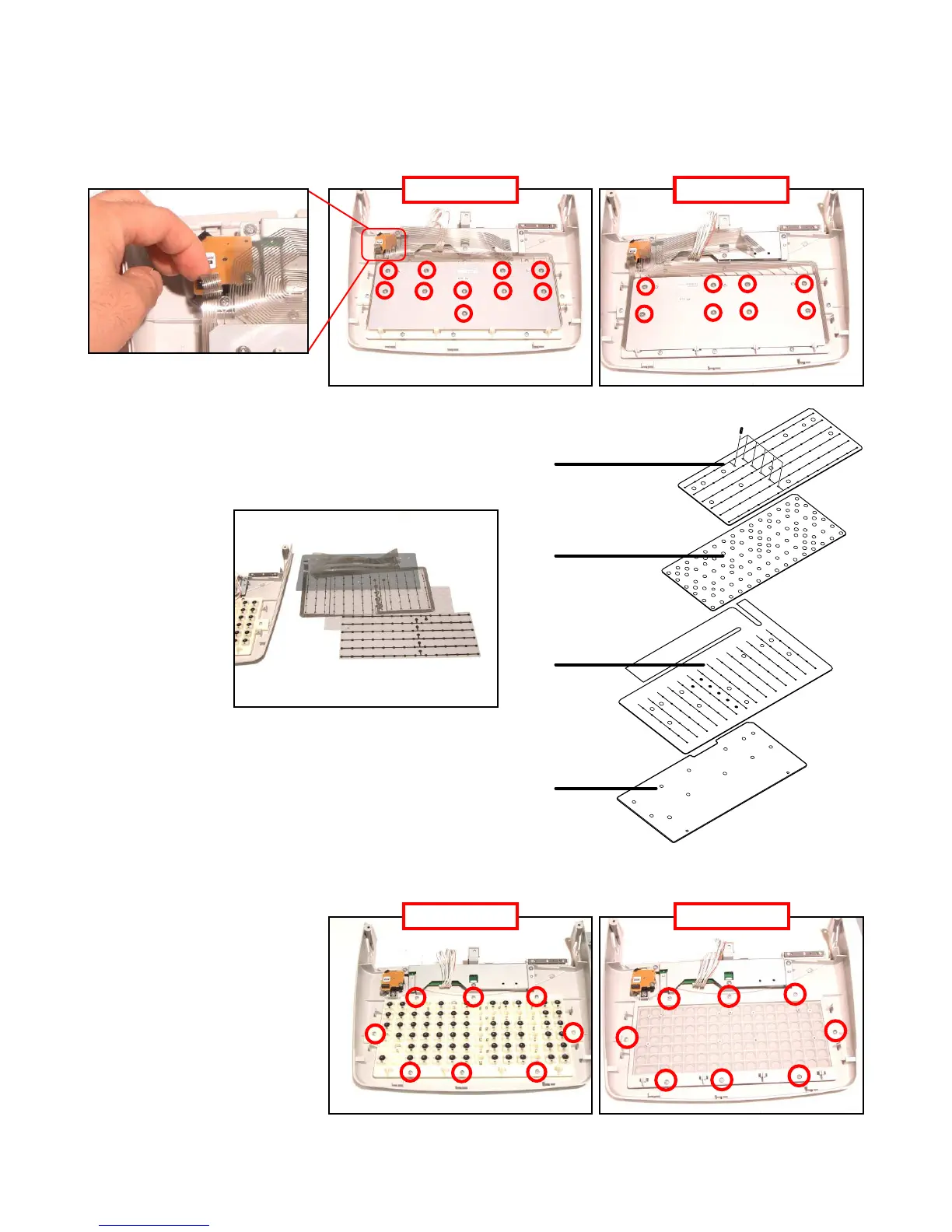

■ KEY BOARD ASS’Y

9. TE-2200: Remove 10 screws.

TE-2400: Remove eight screws.

10. Remove the FPC.

11. Removethe chassis.

12. Removethe FPC sheet.

13. Removethe spacer.

14. Removethe sheet.

15. Remove eight screws.

16. Remove the KEY frame.

TE-2200 TE-2400

TE-2400TE-2200

Chassis

FPC sheet

Spacer

Sheet
