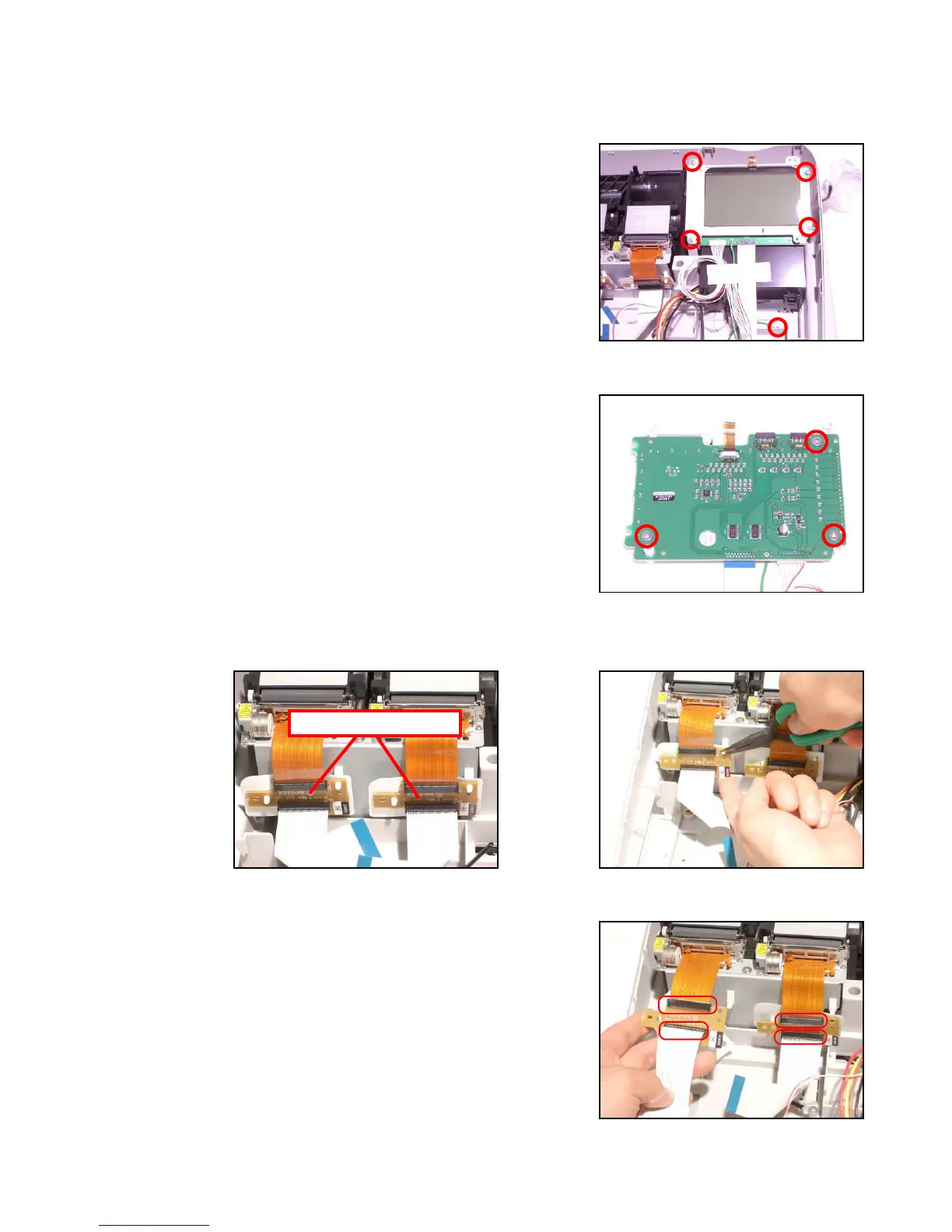

■ LCD ASS’Y

26. Remove five screws and then the LCD ASS’Y.

27. Remove three screws and one connector.

■ PRINTER

28. Remove two E272-PR PCBs.

29. Remove four FPCs.

E272-PR PCB

Table of Contents2
Environmental Specifications3
Main Components3
Electrical Specifications3
Duration of Life4
Drawer List4
Option List5
Machine Intialization6
Machine Initialization Procedure6
Worksheet (Initialize)7
Flag Clear Operation8
Init 2 Operation8
Upper Cover9
Disassembly9
- Key Board Ass’y11
- Tact Sw Pcb, Mode Key12
- Backup Battery12
- Mian Pcb13
- Lcd Ass’y14
- Printer14
- Drawer16
- Power Supply19
- Hardware Diagram19
- Main Display19
Circuit Explanation19
- Block Diagram20
- Power Supply Circuit21
- Reset Circuit21
- Drawer I/F Circuit22
- Printer Control Circuit23
- Cpu24
- Pin Assignment24
- Block Diagram25
- Sram28
- Notes for the DIAG31
- To Start the Diagnostic Program31
- Displaying and Printing the Version31
Diagnostic Operation31
- Displaying the Status of the Device32
- Check Item33
- Batch Test 134
- Batch Test 234
- Operation of each Test34
- N01135
- RAM WRITE/READ Test35
- N01336
- N11337
  - CF-CARD CLEAR WRITE/READ Test38
  - Locale Information Write38
- N31338
- C012141
- N09252
- Consumption Current53
- KEY Dipsplay54
- TE-2400 for Eu55
- TE-2400 for US55
- OBR Test55
- Displaying the Battery Voltage56
Error Code List57
System Error Code60
IC Data61
- Max3243Cpw (Ic22)62
- Mx23C1610Mc10Gsa01 (Ic18)63
- S-80123Bnmc-Jgit2G (Ic42)63
- Main Pcb (E466-1 Pcb)68
Pcb Layout68
Circuit Diagrams70
Parts List85
- Te-2200 Exploded View86
- Te-2200 Keyboard Block87
- Main Display Block88
- MAIN PCB Block88
- Keyboard Block89
- Rear Display Block89
- Lower Case Block90
- Power Supply Block90
- Switch Board Block90
- Upper Case Block90
- Others91
- Printer Block91
  - Te-2400 Exploded View92
  - Te-2400 Keyboard Block93
- Main Display Block94
- MAIN PCB Block94
- Keyboard Block95
- Power Supply Block95
- Rear Display Block95
- Lower Case Block96
- Printer Block96
- Switch Board Block96
- Upper Case Block96
- Others97
- DRAWER (DL-2429) for USA98
- DRAWER (DL-2797) for Other Country100
- DRAWER (DL-2798) for Europe102
- DRAWER (DL-2799) for UK, Canada104
