Casio TE-2400 Service Manual

— 52 —
[ 29 ] KEY dipsplay
[Function]
The key codes for all keys except “C” key which are pressed down are displayed.
The hard key codes are located as shown in the following figure.
[Operation]
Operation : 9 4 SUBTOTAL
To stop the test, press “C” key or turn off the power by rotating the key.
[Pop-up display]
x : hard key code (Prints only last number of three in the main display.)
zz : key code type
[Main display]
xxx : hard key code
zz : key code type
[Print]
No printing is done in this test.

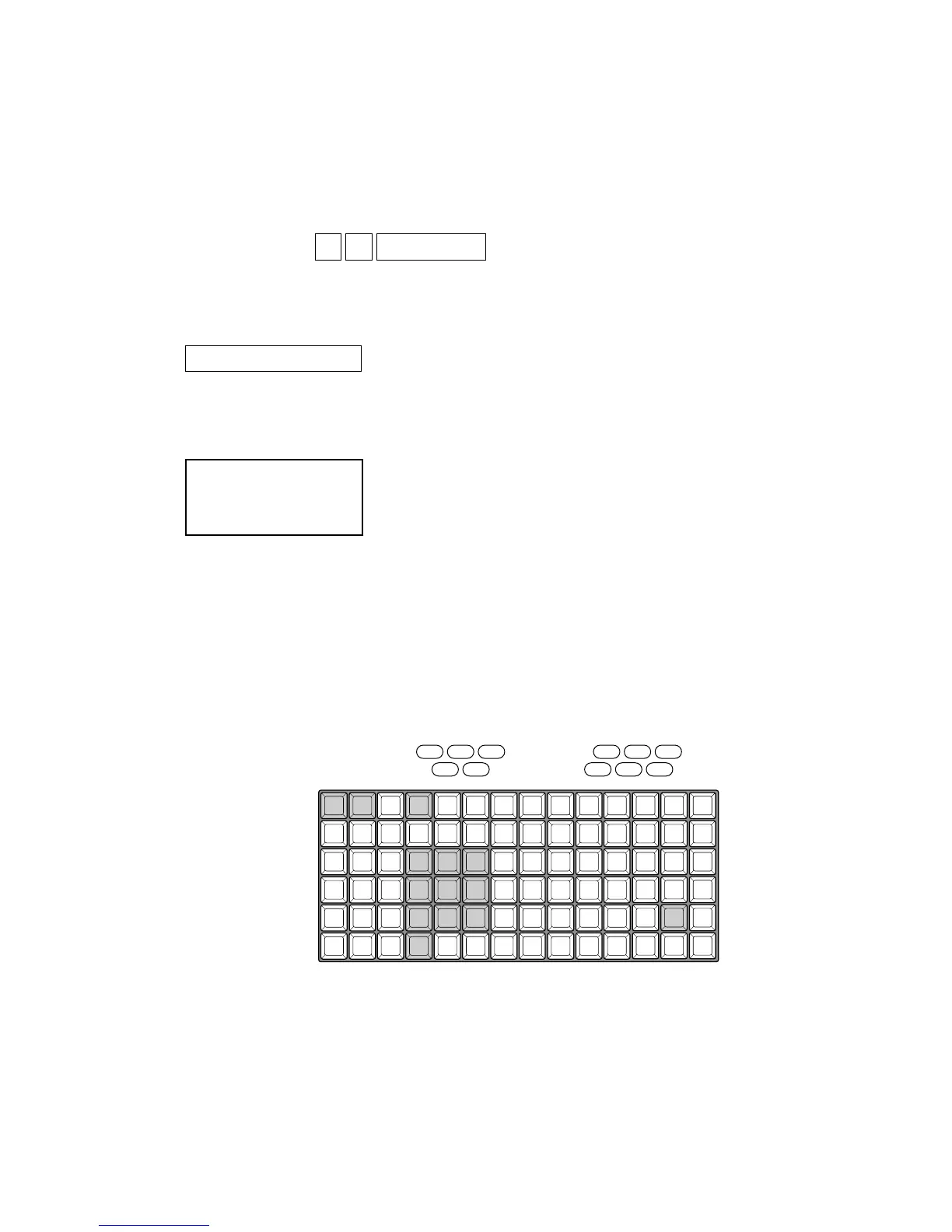

[Location of the hard key code]
x.8.8.8.8.8.z z
DIAG 94
xxx zz
TE-2200
071 064 062 060 054 048 042 036 030 024 018
081 076 070 065 063 061 059 053 047 041 035 029 023 017
080 075 069 058 052 046 040 034 028 022 015
079 074 068 057 051 045 039 033 027 014 016
078 073 067 056 050 044 038 032 026 020 021
077 072 066 011 012 055 049 043 037 031 025 019 013
C
7 8 9
456
123
0
RECEIPT
FEED
JOURNAL
FEED
082 083 084 088 089 090
093 094 095085 086

Casio TE-2400 Specifications

General

Types of payment	Cash
Supported paper width	58 mm
Display digits	10 digits
Second display	Yes
Second display type	LED
Display number of characters	16
Power source	AC
AC input voltage	120-230 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	277 mm
Weight	12000 g
