— 7 —

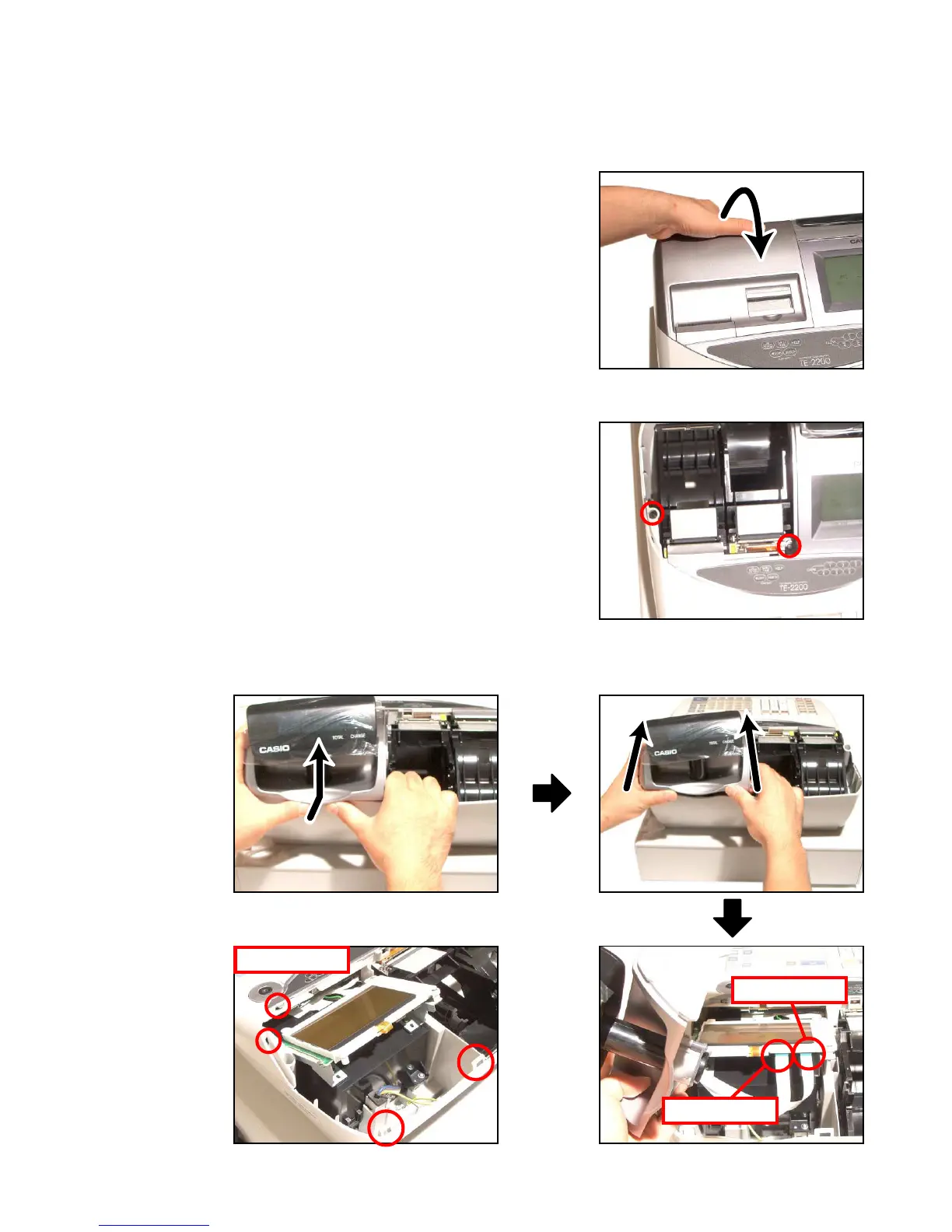

3. DISASSEMBLY

■ UPPER COVER

1. Remove the printer cover.

2. Remove two screws.

3. Remove the printer cover.

4. Remove two FPCs.

FPC (10pin)

FPC (12pin)

Hooks
