■ MIAN PCB

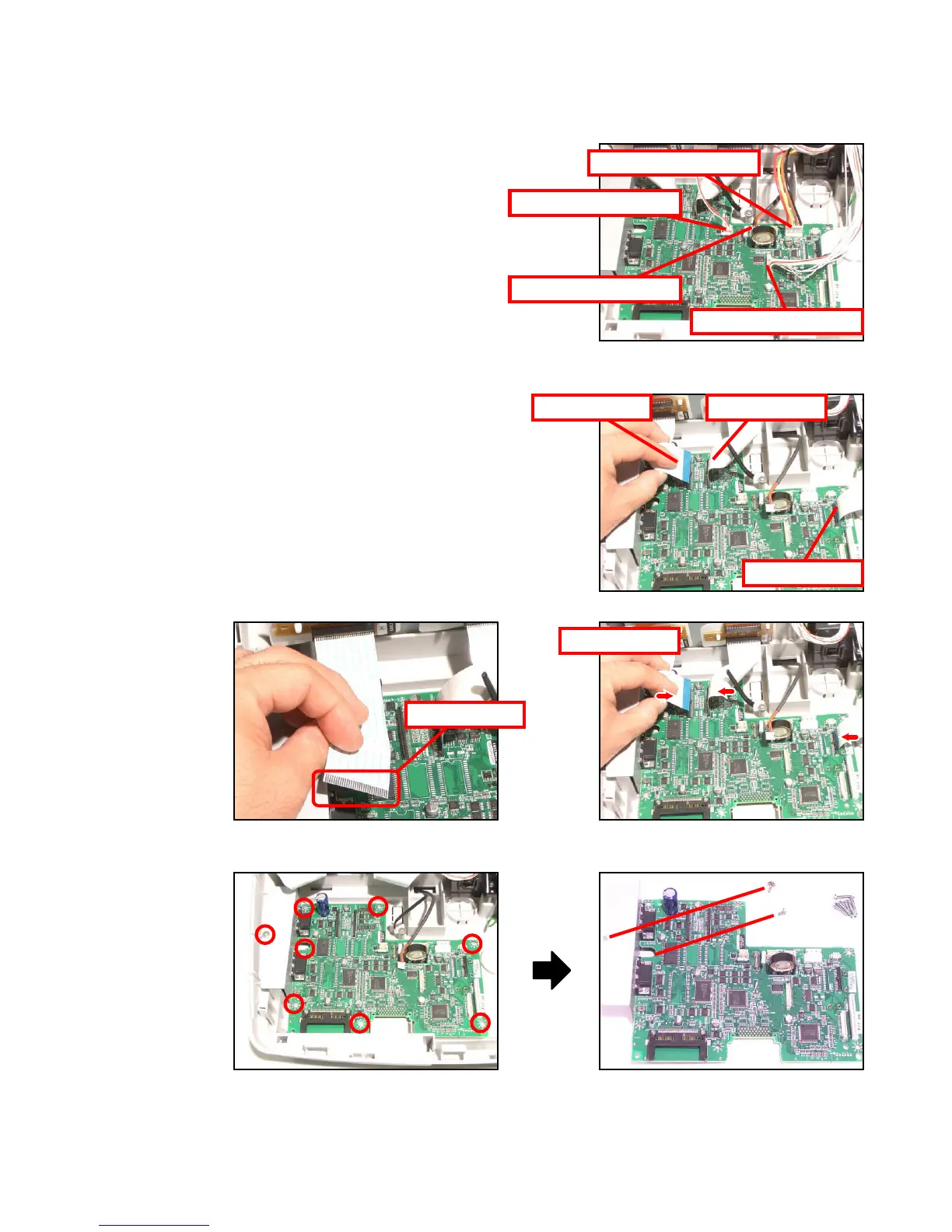

23. Remove four connectors.
Connector (CN7)
Connector (CN1)
Connector (CN16)
Connector (CN5)
24. Remove three FPCs.
FPC (CN8) FPC (CN9)
FPC (CN12)
NOTE; While fixing, be fully care to the direction of the FPC.
Pattern
Pattern
25. Remove eight screws.
