Reassemble the solenoids in a stack and tighten the hex nuts and lock washers. Do not
over tighten the hex nuts.
10. Reinstall the Control Box using the carriage bolts.
11. Reconnect air and then power to the machine.

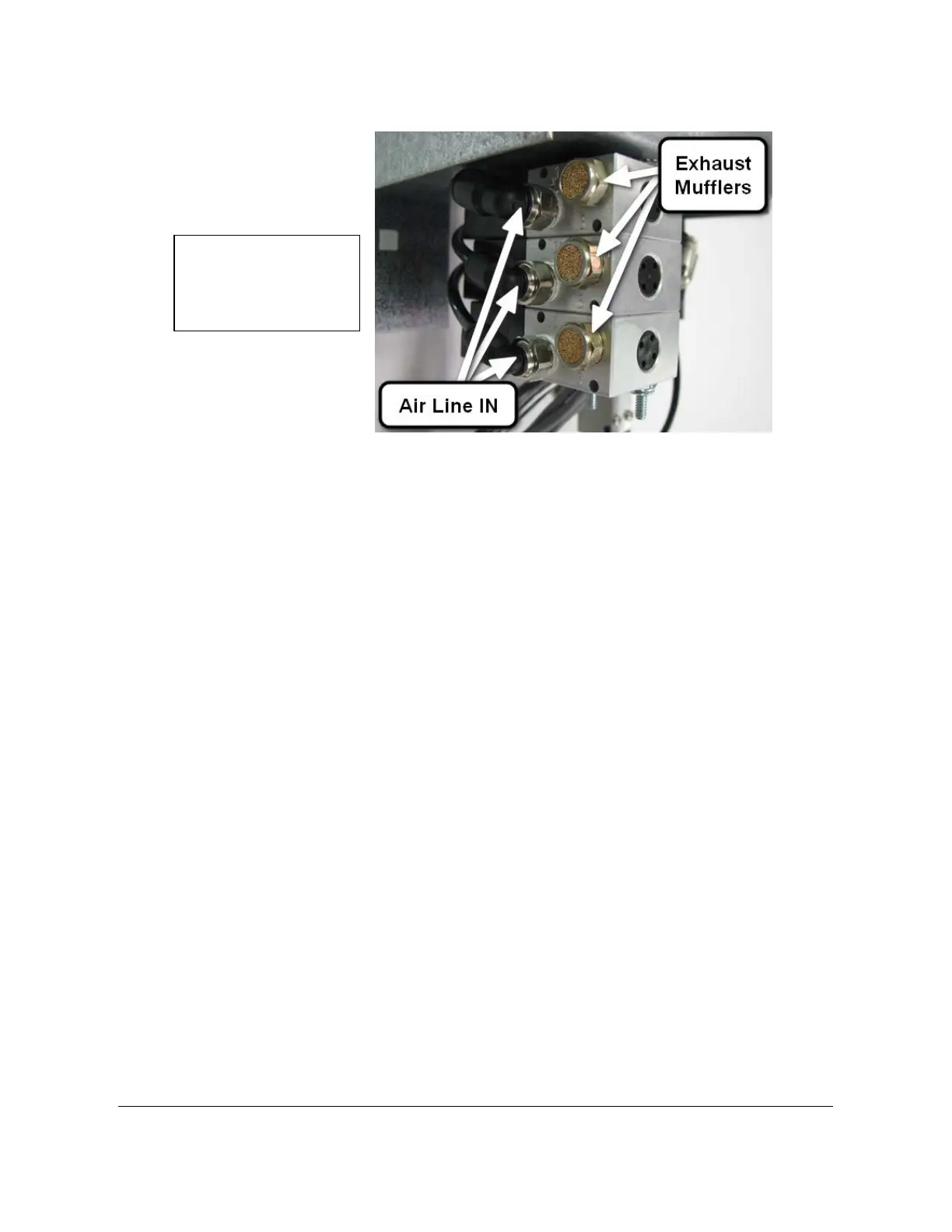

Fig 30
View from front of
machine with work top
removed
