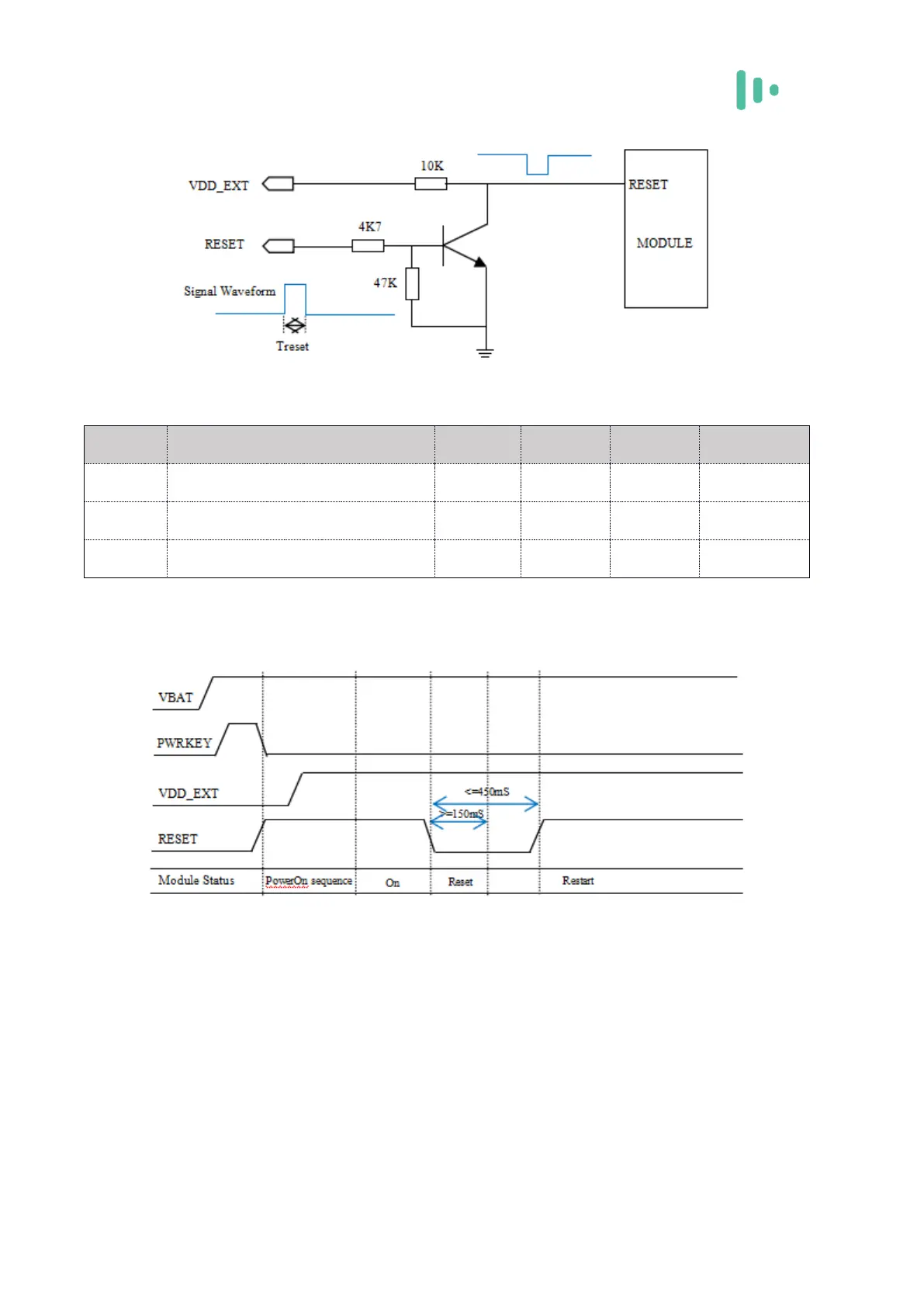

Figure 3-9 Reset reference circuit
Table 3-8 RESET pin parameters
symbol
description
Min
Typical
Max
unit
Treset
Low pulse width
150
200
450
ms
VIH
RESET input high level voltage
1.17
1.8
2.1
V
VIL
RESET input low level voltage
-0.3
0
0.8
V
The reset RESET timing is as follows:
Figure 3-10 Reset timing diagram
The C100QM/C10QM module supports AT command reset, and the AT command is
at+cfun=1,1 to restart the module. Detailed instructions are available in the
C100QM/C10QM AT Command Set Manual.
