Cavli Wireless C100QM - Chapter 6. Structural and Mechanical Properties; 6.1 Chapter Overview; 6.2 Exterior

Cavli Wireless C100QM/C10QM Hardware Manual
86
Power on, do not boot
Drop test...
Temperature: –40oC
Working mode: no
packaging, no power, no
boot
Test duration: 24 h
JESD22-A119-
C
Visual inspection: normal
Function check: normal
RF indicator check:
normal
High
temperatur
e storage
Temperature: 85oC
Working mode: no
packaging, no power, no
boot
Test duration: 24 h
JESD22-A103-
C
Visual inspection: normal
Function check: normal
RF indicator check:
normal
Chapter6. Structural and mechanical properties
6.1 Chapter overview
✧ Exterior
✧ Module mechanical size
6.2 Exterior
The C100QM/C10QM module is a single-sided PCBA. The appearance of the module is
as follows:

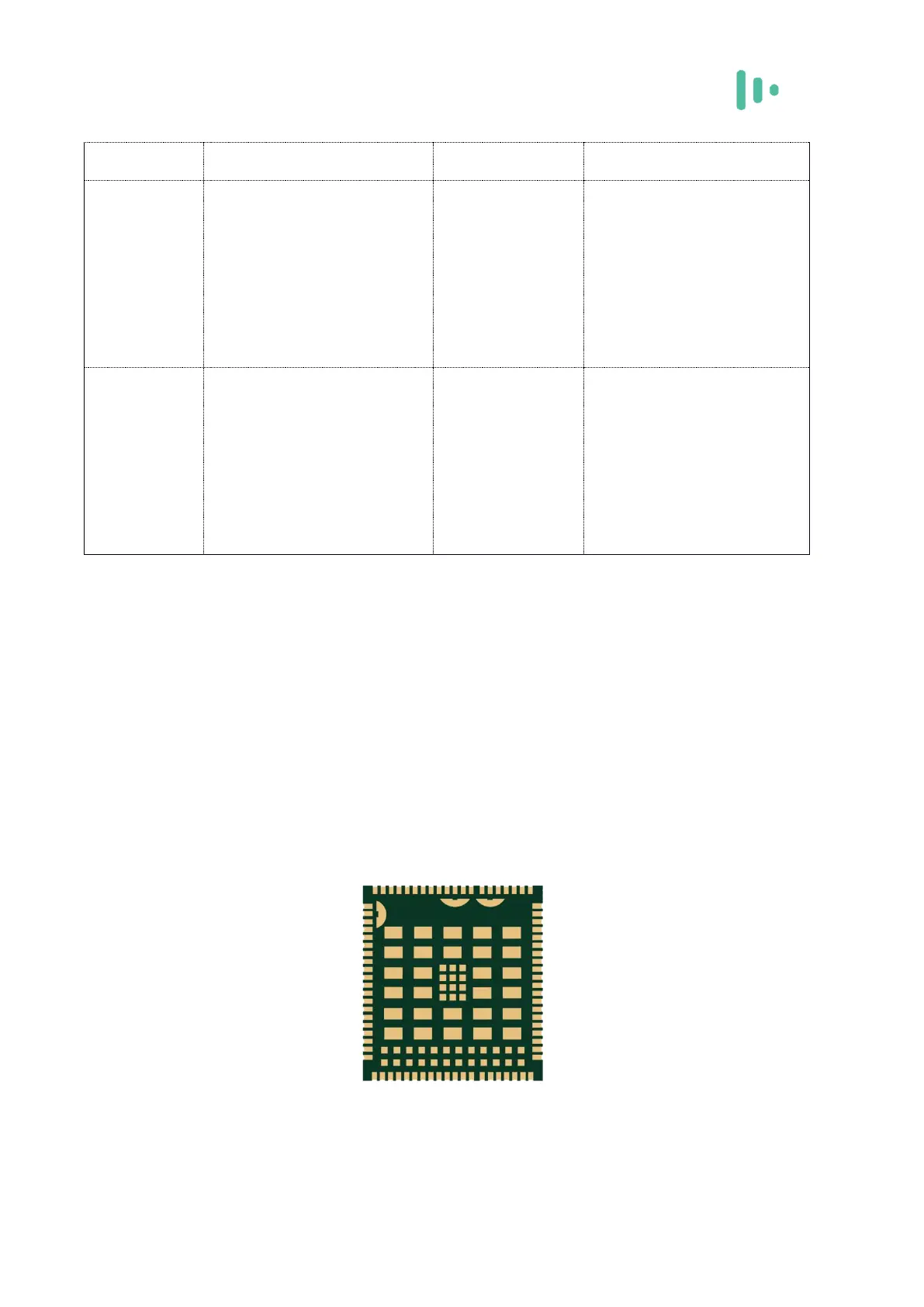

Figure 6-1 Appearance of the C100QM/C10QM
