3.10 Module status indication
The C100QM/C10QM module provides a pin as a working status indicator for the module.
This pin can be used to connect to a GPIO or LED with pull-up. It is used to indicate the
power-on status of the module. The drive current should be less than 0.8mA. The STATUS
pin will output a low level and the rest will be in a high impedance state.
Pin
Signal name
I/O
description
Remarks
61
STATUS
DO
Module power on status
indication
External pull-up

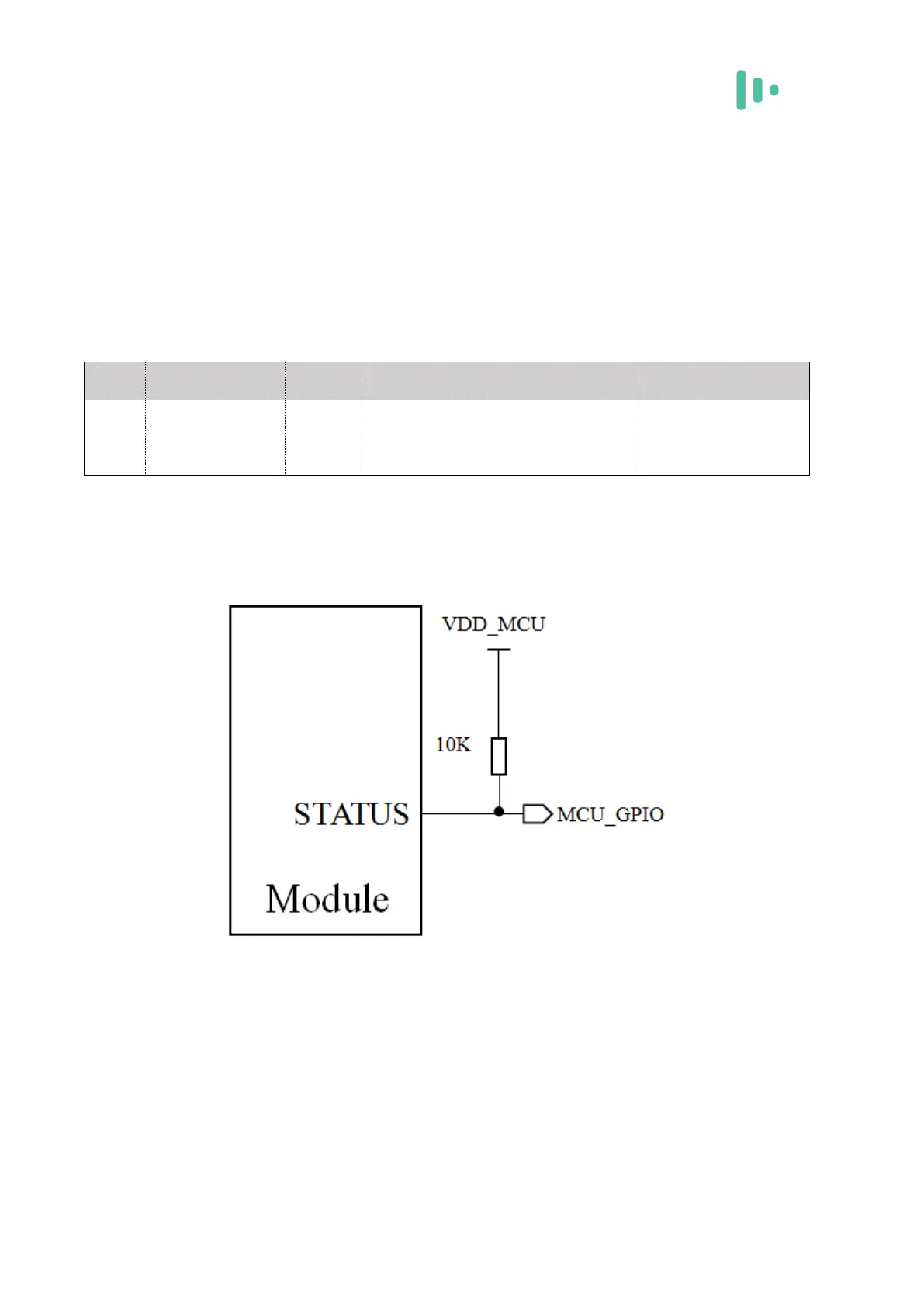

The following figure shows the STATUS reference circuit design:
Figure 3-19 STATUS Pin Reference Circuit
3.11 PCM digital voice interface
The C100QM/C10QM module provides a set of PCM audio interfaces supporting 8-bit
A-rate, U-rate and 16-bit linear short frame encoding formats with PCM_SYNC of 8kHZ
and PCM_CLK of 2048kHZ.
