Cavli Wireless C100QM/C10QM Hardware Manual
70
a 50 ohm characteristic impedance.
✧ Hirose's UF.L-R-SMT connector is recommended.

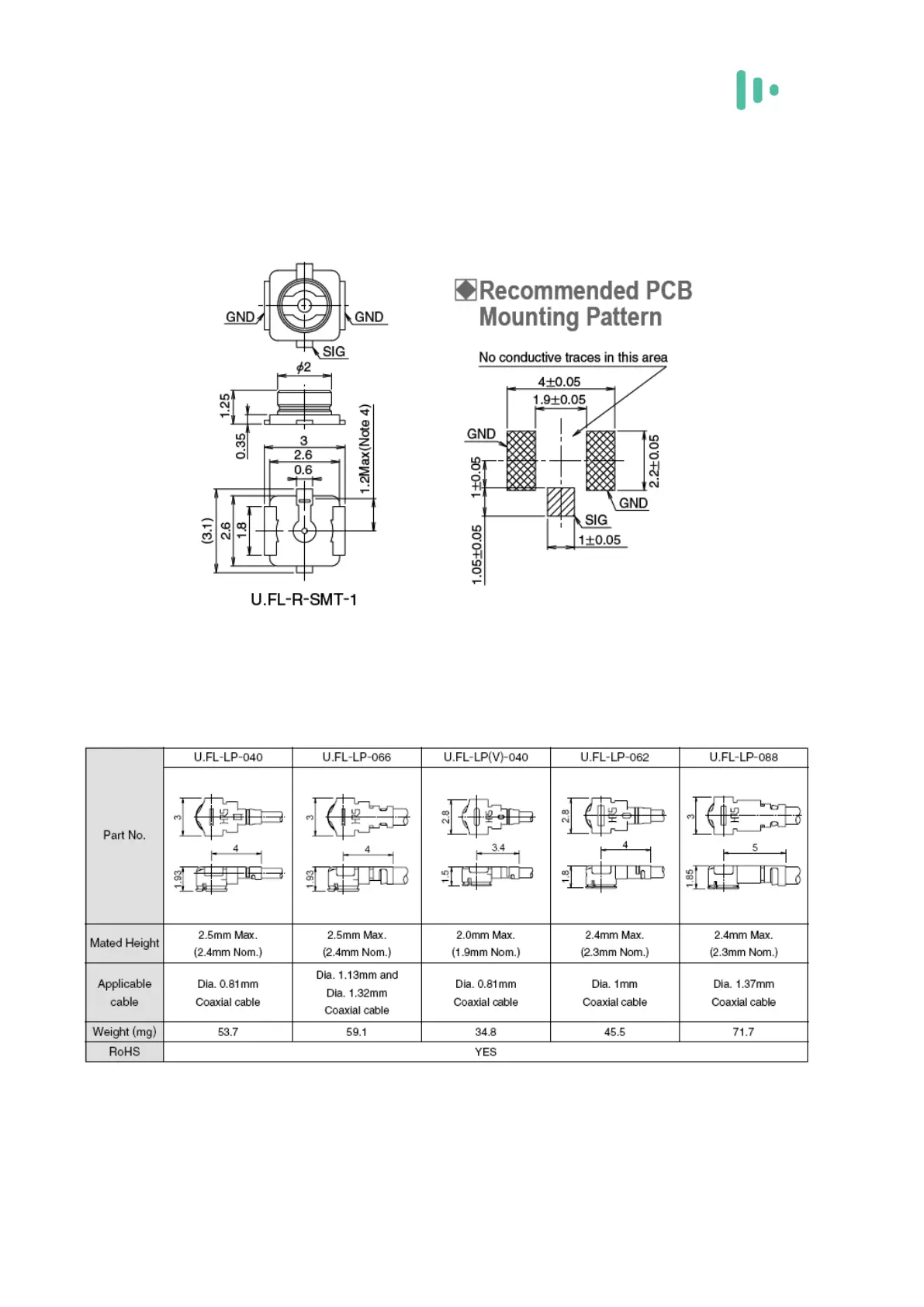

Figure 3-32 RF connector size chart
The RF connector plug for this connector is the U.FL-LP series from HRS.
Figure 3-33 Antenna connector matching plug diagram
Table 3-25 Main parameters of the RF connector
