6.3 C100QM/C10QM module mechanical size

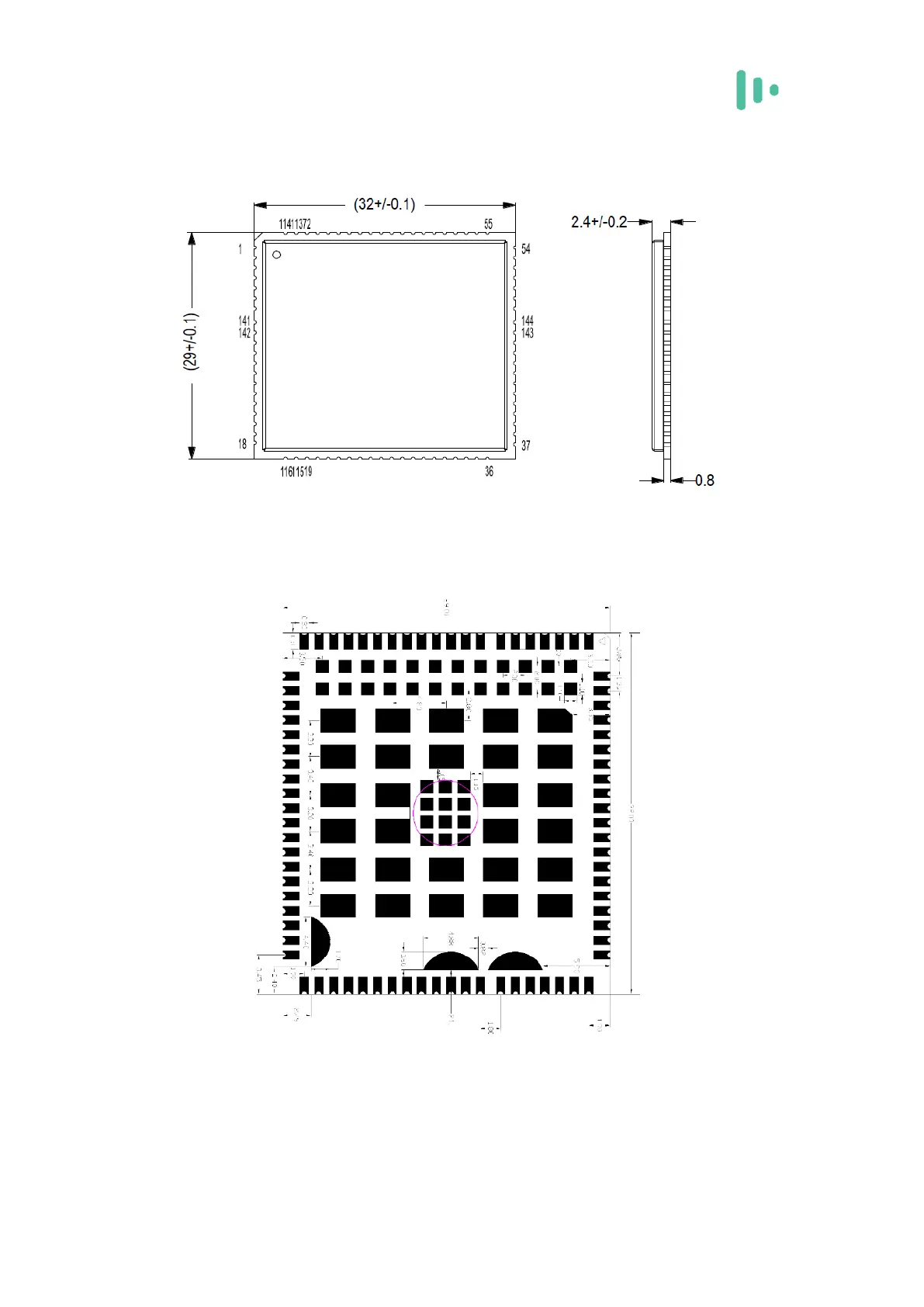

Figure 6-2 Front view and side view of the module (unit: mm)
The figure below shows the bottom view size of the module:
Figure 6-3 Bottom view of the module (unit: mm)
Module recommended package:
