CEM MARS 6 User Manual

9

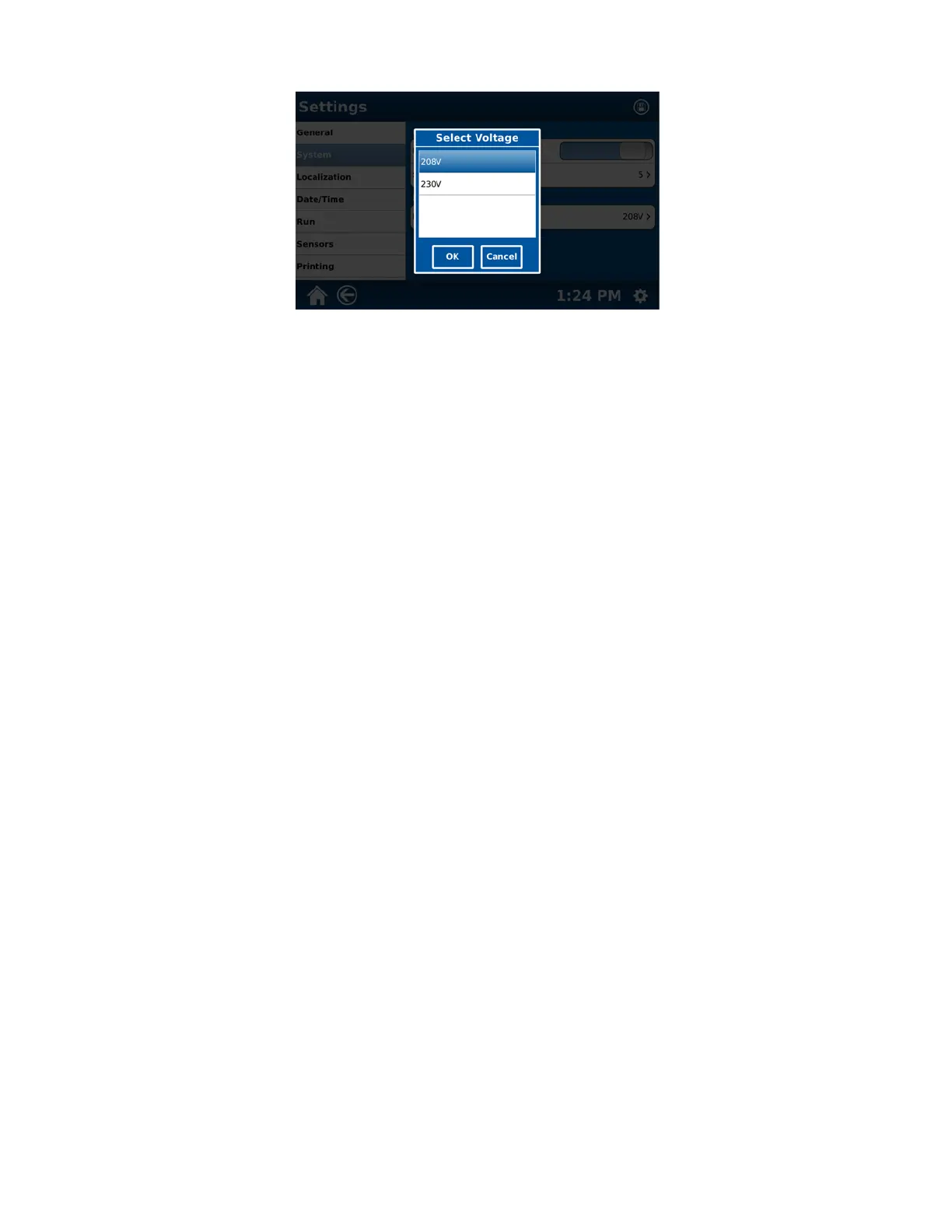

14. Select “Line Voltage.”
15. Select and highlight the proper voltage for the instrument – 208V or 230V.
Voltage 200 – 220 Volts – Select 208V
Voltage 221 – 240 Volts – Select 230V
16. Select “OK.”
17. Select the “Save” icon in the upper right corner of the screen to save the proper line voltage.
Note: The MARS 6 instrument requires 208/230 VAC, 60 Hz, 15A @ 208 VAC or 220/240 VAC, 50 Hz, 15A @ 240 VAC,
single phase power. It requires a non-locking 15 Amp, 250 volt rated receptacle (NEMA 6-15R or a 250 volt. 20 Amp rated
receptacle (NEMA 6-20R).

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
