CEM MARS 6 User Manual

13

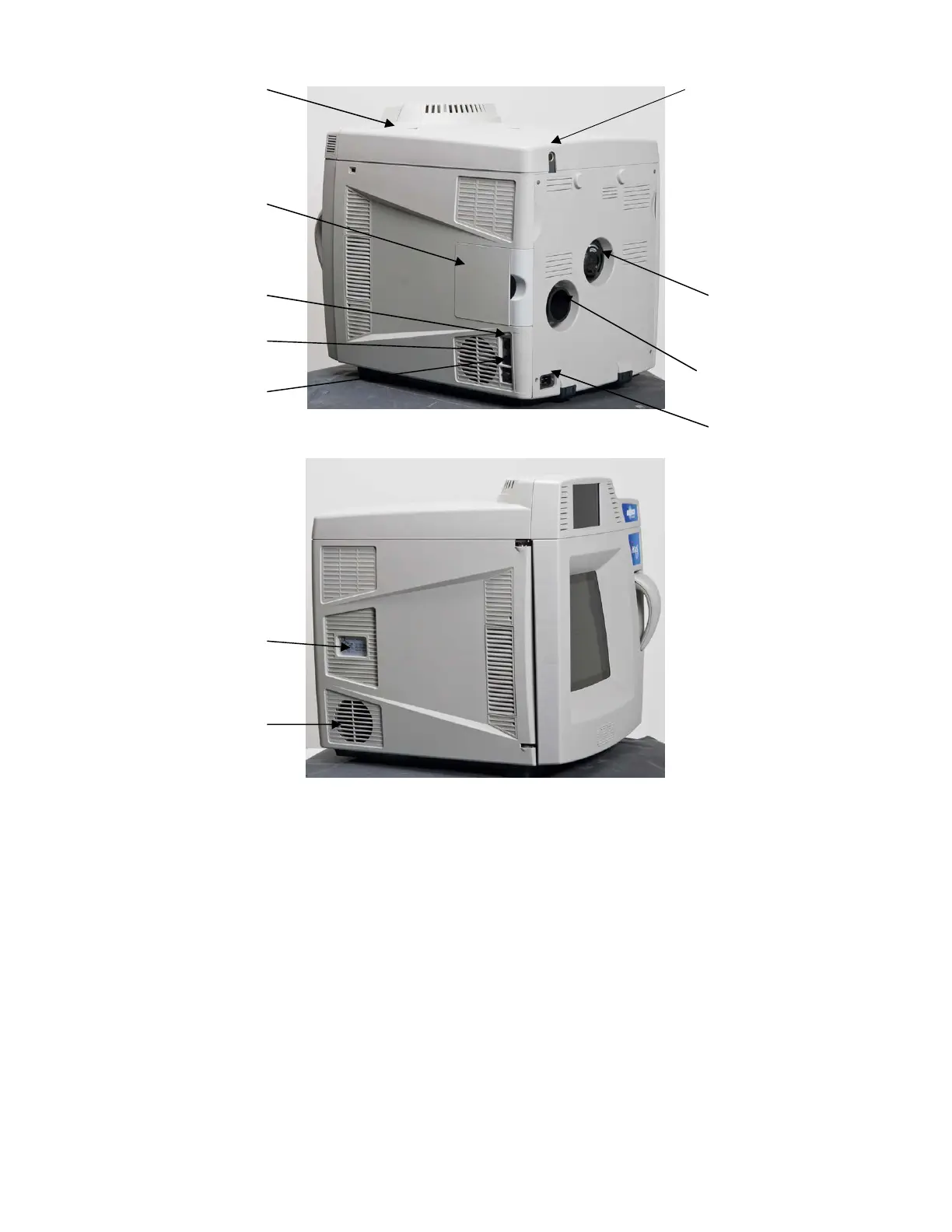

Power Switch
- turns AC power on and off to the instrument.
Cavity Exhaust Outlet
- exhausts fumes from the microwave cavity.
Cavity Exhaust Blower Motor
- directs air from the microwave cavity to the exhaust outlet.
Nameplate
- lists model, serial number, operating voltage, frequency, and current draw.
High Voltage Cooling Fan
- draws room air past the magnetron.
Power Cord Receptacle
- receives the female end of the power cord.
Fuses
- prevent electrical power overload.
External Sensor Port
- permits interface of optional instrument features.
Communication Access Port
– permits access to USB, Ethernet and RS232 ports.
Cavity Exhaust Outlet
Power Cord
Receptacle
External
Sensor
Port
Nameplate
Fuses
Power Switch
Cavity Exhaust
Blower Motor
High Voltage
Cooling Fan
Communication
Access Door
High Voltage
Cooling Fan
Optional
Internal
Printer

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
