CEM MARS 6 User Manual

41

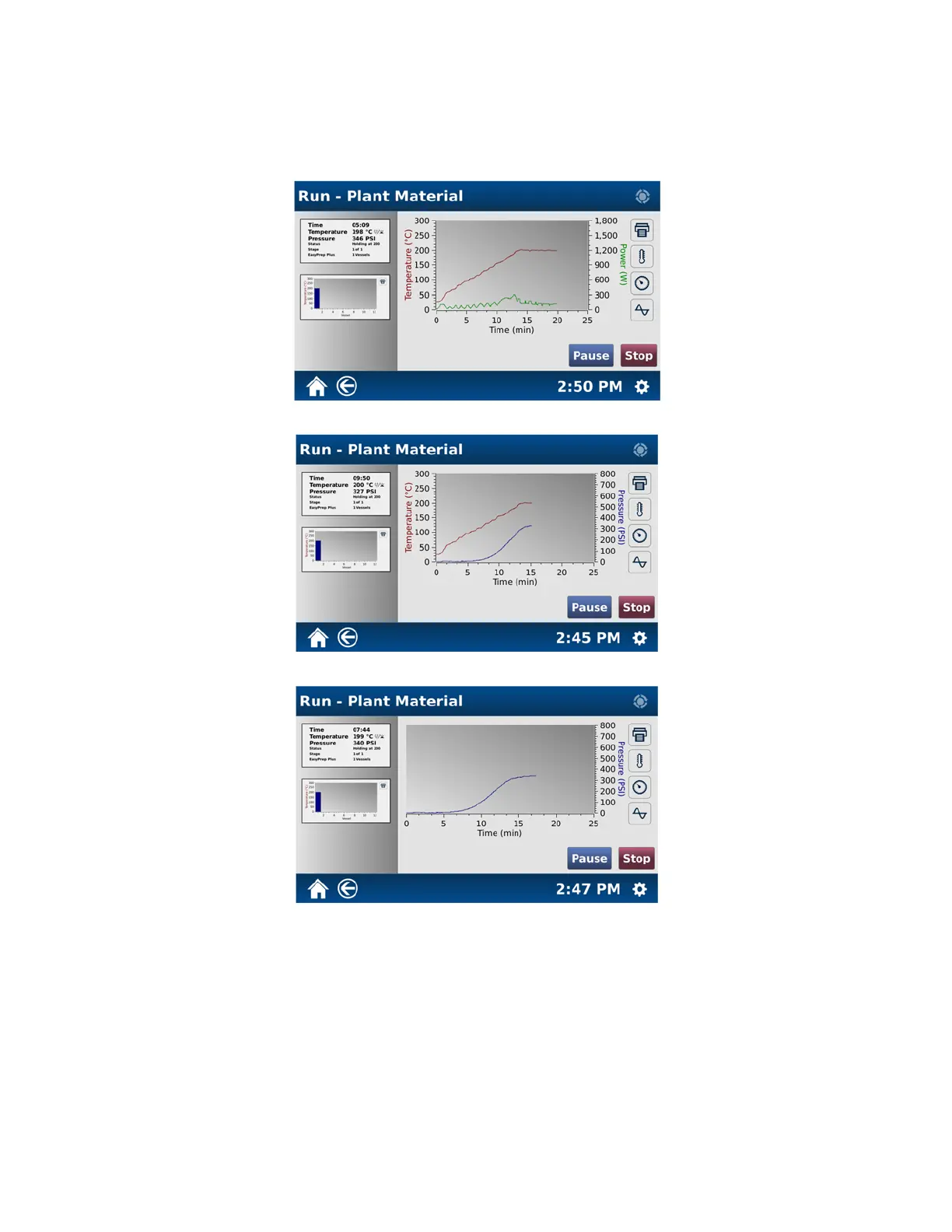

16. To display a graph of the current status of the method on the screen, select the applicable graph on the left side
of the screen or the applicable icon on the right side of the screen.
17. To print the method information displayed on the screen using the optional internal printer at any time during the
method performance, select the “print” icon on the right side of the screen.
Temperature/Power/Time Graph
Temperature/Pressure/Time Graph
Pressure/Time Graph

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
