CEM MARS 6 User Manual

60

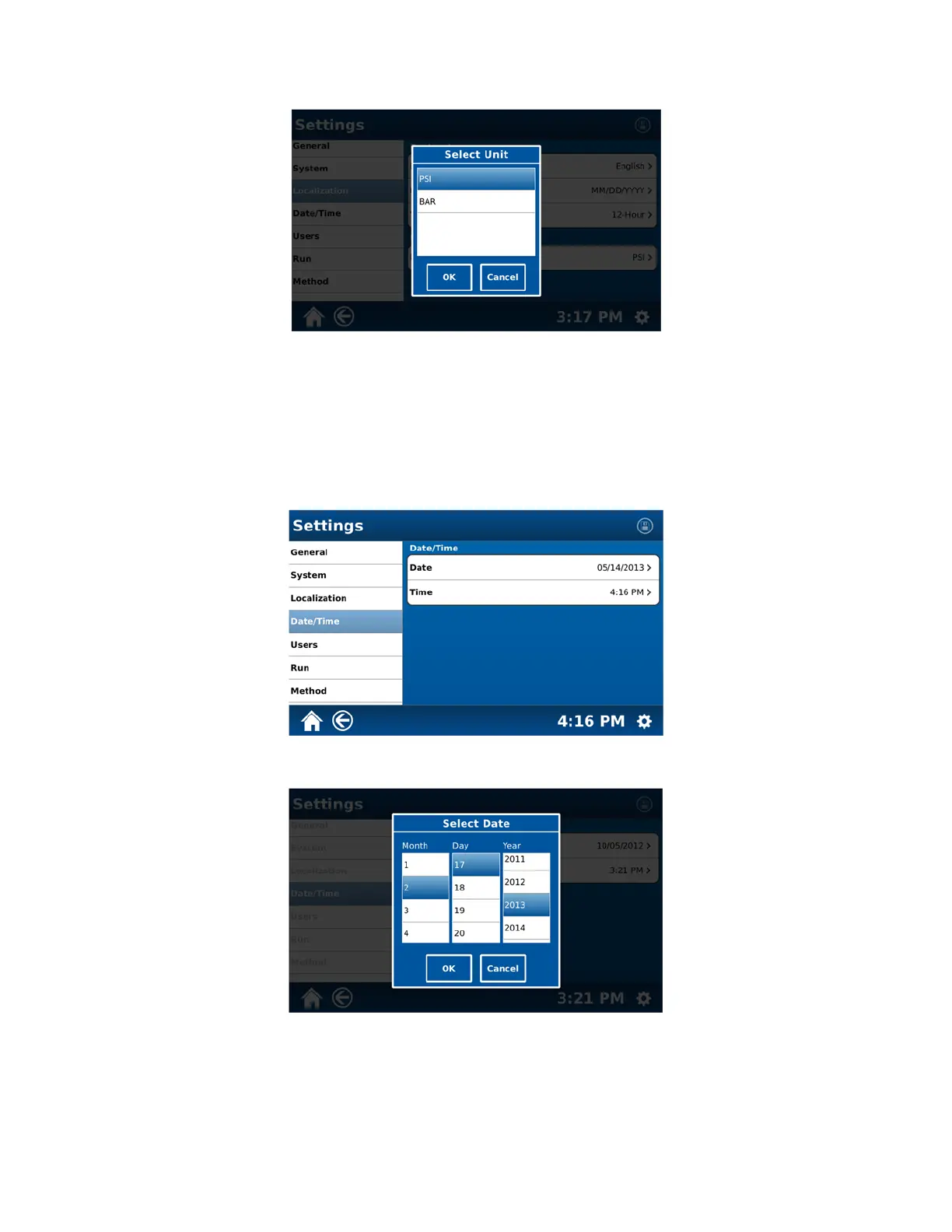

54. Select “Pressure.”
55. Select the desired format for displaying method pressures (PSI or BAR).
56. Select “OK.”
57. Once all regional and unit parameters are selected, touch the disk icon at the top of the screen to save the
selected parameters. Once the parameters are saved, the disk icon will be grayed out.
58. Select “Date/Tiime.”
59. If the date displayed on the screen is incorrect, select “Date.”
60. Scroll through the month, day and year and select the appropriate date.
61. Select “OK.”

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
