User’s manual 23
EN

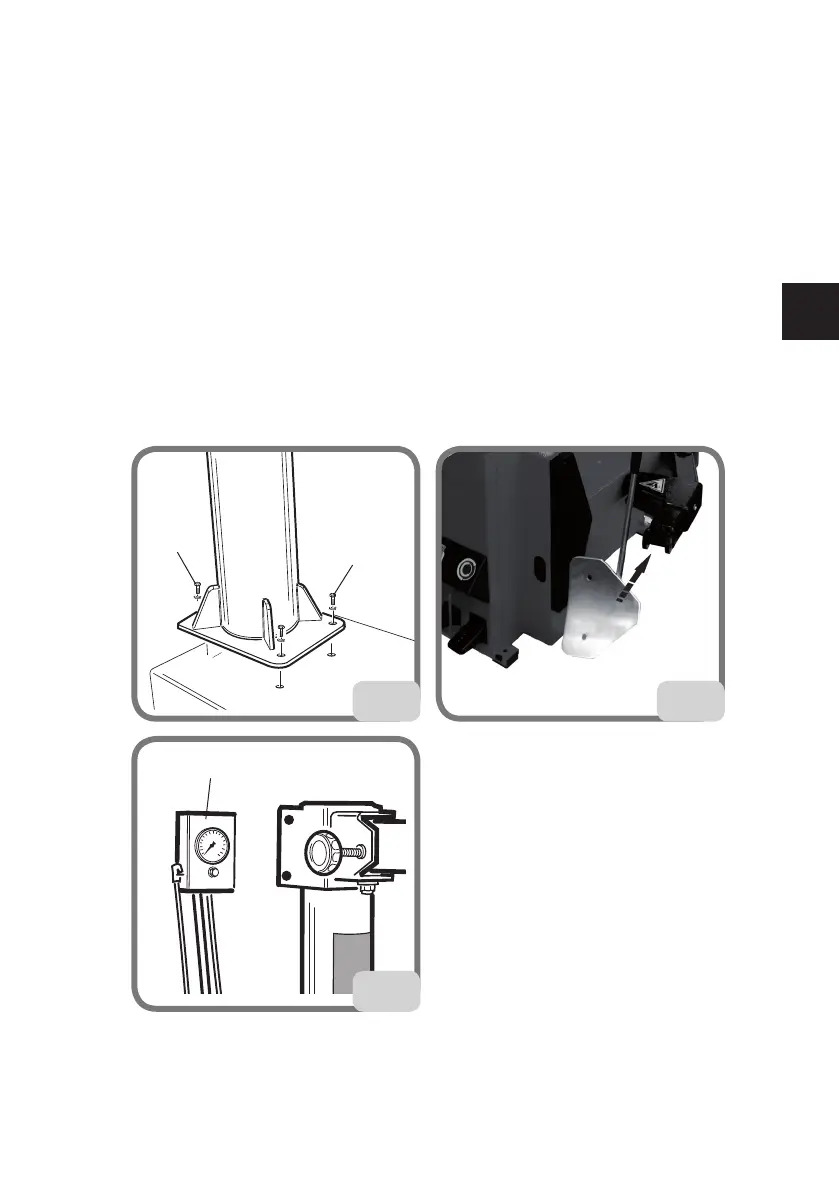

4. MoUnTInG
- Remove the tower (horizontal + vertical arms) from their position on the pallet.
- Mount the pole using screws P (Fig.5a), use tightening torque 70 Nm.
- Assemble the bead breaker with the proper pin and fasten it with the locknut until there
is a slight resistance in the rotation of the bead breaker (Fig. 5b).
- Install the in ation pressure gauge box on the pole (A, Fig. 5c).
T.I Version
- Connect the tank union to the air connection pipeline provided, securing it with a band
clamp.
5c
A
5b5a
P
P
