CEMB SM628TI User Manual

26 User’s manual
6. DescRIPTIon of THe MacHIne
The machine is an electro-pneumatically ope-
rated tyre changer.
It works on all types of whole rims with channel,
with weights and dimensions as described in
the TECHNICAL DATA section.
The machine is solidly constructed. It ope-
rates with the wheel in a vertical position for
bead breaking and in a horizontal position for
mounting and demounting tyres. All machine
movements are controlled by the operator by
means of the pedals.

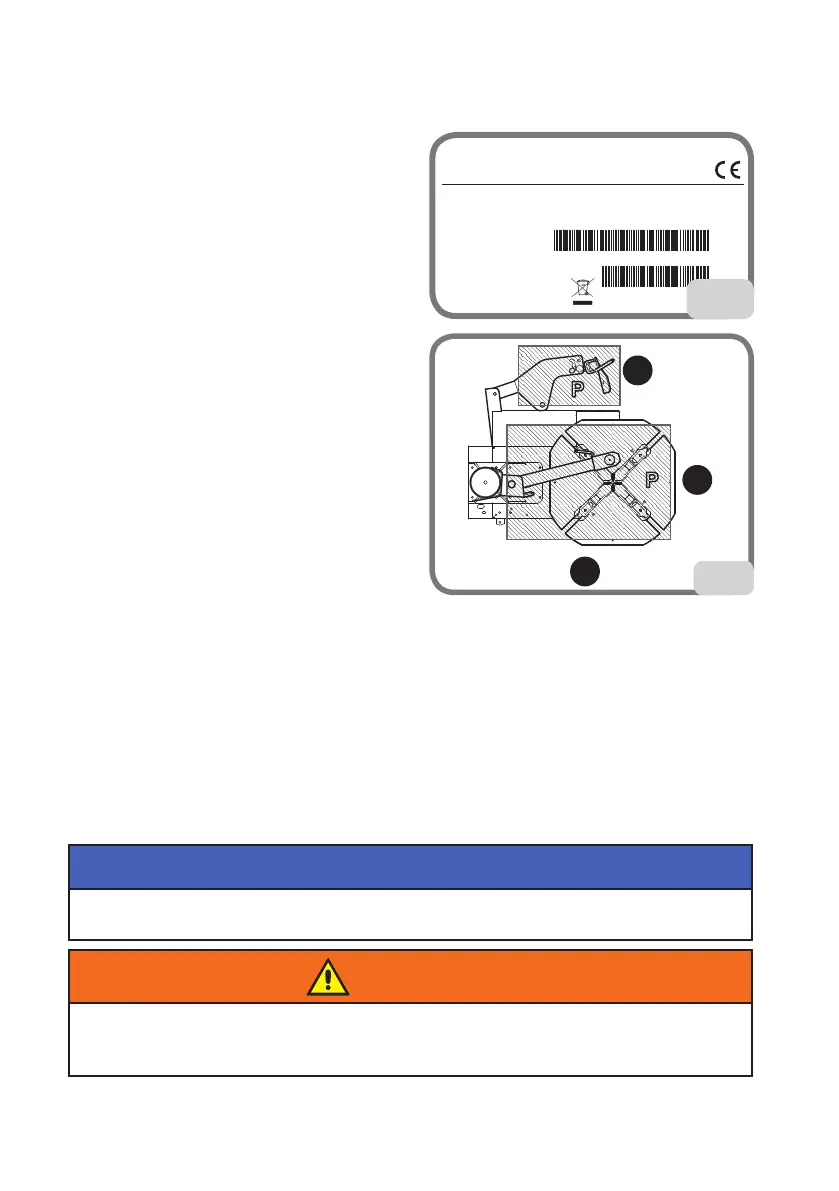

Each machine carries a plate Fig. 9 reporting
its identication data and some technical data.
As well as the manufacturer’s details, it indicates:
Mod. - Machine model;
V - Power supply voltage in Volts;
A - Input voltage in Amperes;
kW - Absorbed power in kW;
Hz - Frequency in Hz;
Ph - Number of phases;
bar/psi - Operating pressure in bar and/or psi;
Serial No. - machine serial number;
ISO 9001 - company Quality System Certication;
CE - CE marking.
6.1. OPERATOR POSITION
The gures 9a show the operator’s positions and the relevant hazardous areas (P) during
the various work phases:
A Bead breaking
B Tyre demounting and mounting
C Ination area
WARNING
Beforeremovingthemachinefromthepallet,makesuretheitemsshownbelow
havebeenremoved.
WARNING
RISKOFINJURYDUETOCRUSHING.Thecolumntiltingandtheself-centring
clampopening/closingoperationmustbeperformedfromworkingpositionB
(g.9a),keepinghandsawayfrommachinemovingparts.
Code
Serial N.
X-XXXXXXXX/XX - XX
XXXXXXXXX
ANNO DI COSTRUZIONE /
MANUFACTURED
Mod.
V
A
kW
Hz
Ph
bar/psi
9
B
A
C
P
P
9a

CEMB SM628TI Specifications

General

Category	Tyre Changers
Manufacturer	CEMB
Model	SM628TI
Operating pressure	8-10 bar
Motor power	0.75 kW
Voltage	400V
