Centa CENTAX-L - Positioning the Link Flange Assembly (1)

Assembly and operating instructions
CENTAX-L
016L-00050…00090-FS10
M016-00003-EN
Rev. 3
CENTA Antriebe Kirschey GmbH 27 / 46
6.5 Positioning the link flange assembly (1)

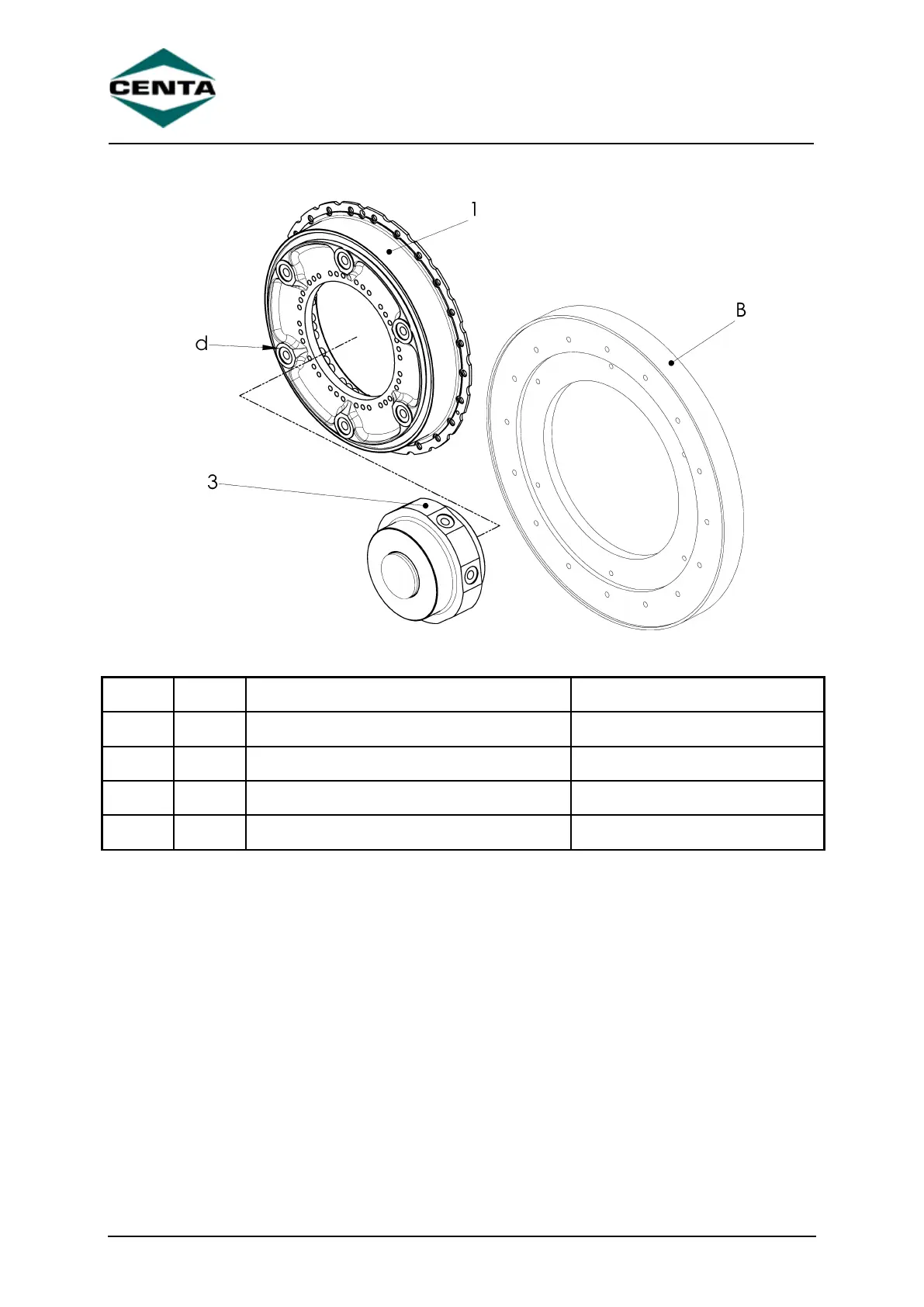

Fig. 6-5 Positioning the link flange assembly (1)
Item
Info
Designation
Remark
1
Link flange assembly
Pre-mounted by CENTA
3
Hub
B
Flywheel
Customer part
d
Centring for the link
 Position the link flange assembly (1) between the hub (3) and flywheel (B).
 Slide the link flange assembly (1) over the hub (3) and place down on the
hub.
The centrings for the links (d) must point towards the hub (3).
