Centa CENTAX-L - Mounting the Link Flange Assembly and the Adapter (8)

Assembly and operating instructions
CENTAX-L
016L-00050…00090-FS10
M016-00003-EN
Rev. 3
CENTA Antriebe Kirschey GmbH 30 / 46
6.6.2 Mounting the link flange assembly and the adapter (8)

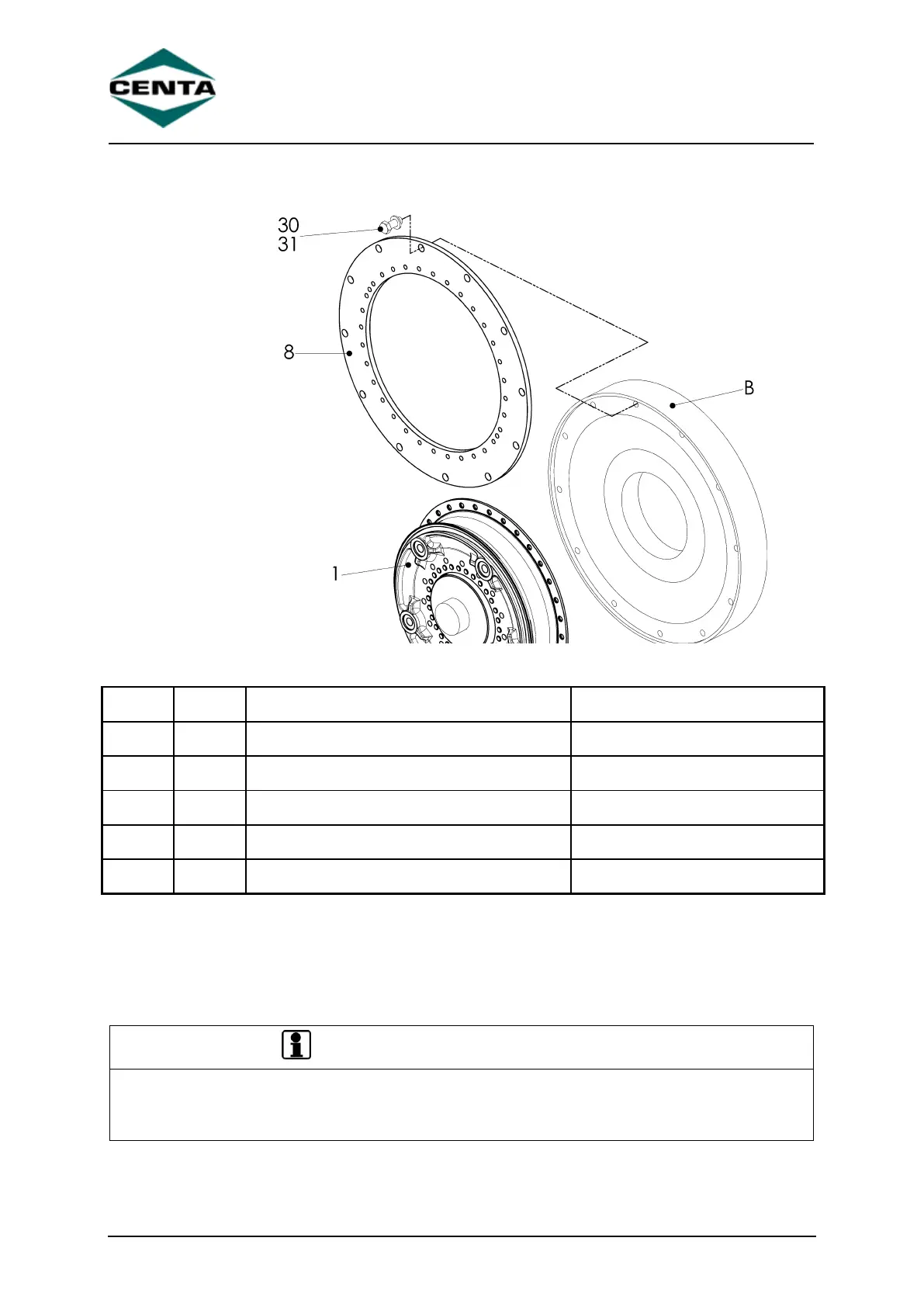

Fig. 6-7 Mounting the adapter (8) to the flywheel
Item
Info
Designation
Remark
1
Link flange assembly
8
Adapter
30
Screw
If ordered
31
Washer
If ordered
B
Flywheel
Customer part
 Push the adapter (8) into the centring of the flywheel (B).
 Screw the adapter (8) to the flywheel (B) using the screws (30) and the
washers (31).
IMPORTANT
Tightening torques for elements to connect couplings with customer parts could deviate
from CENTA data sheet D013-013.
Consider specifications on installation drawing.
