Assembly and operating instructions
CENTAX-L
016L-00050…00090-FS10
CENTA Antriebe Kirschey GmbH 45 / 46
11 Annex

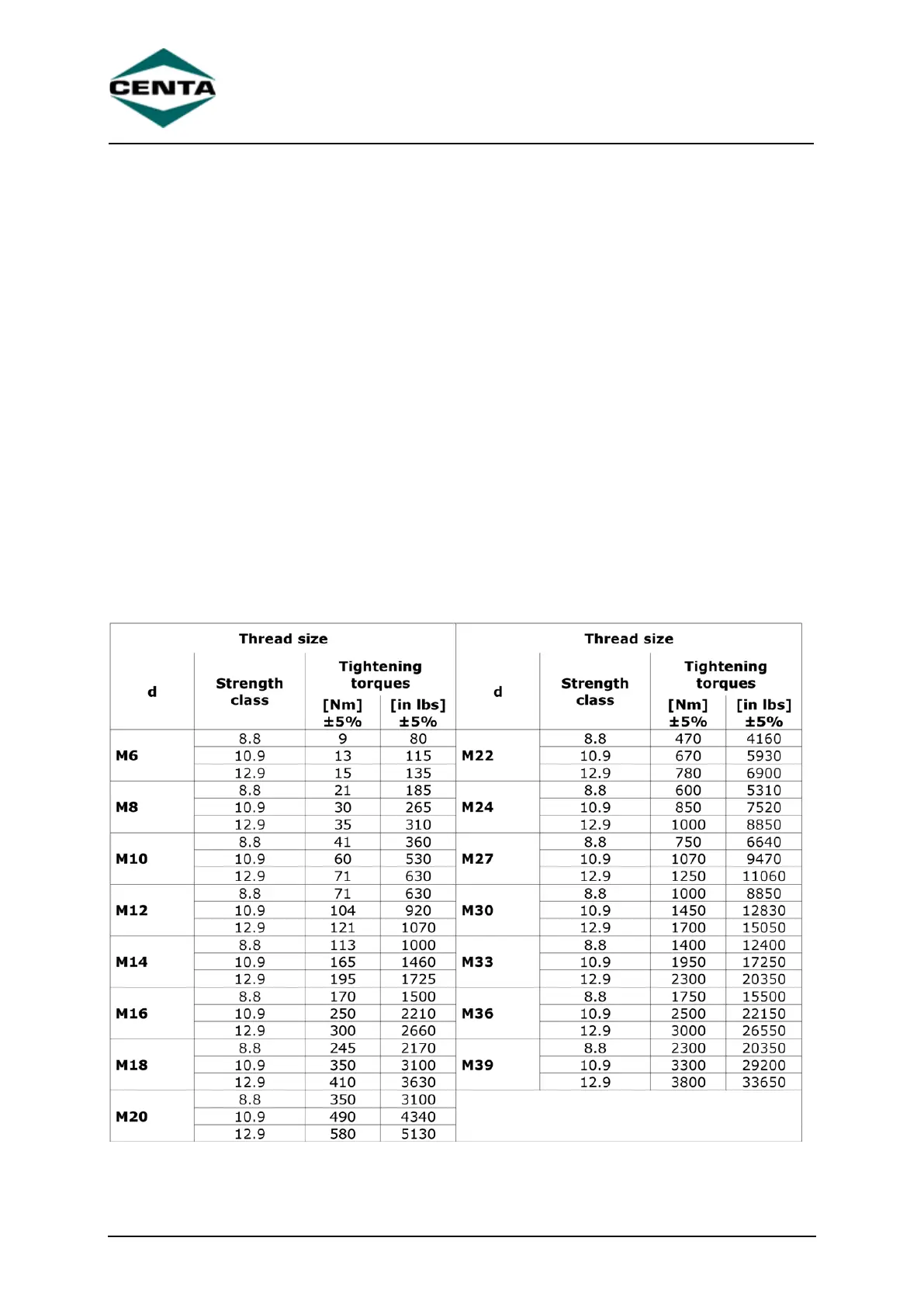

11.1 CENTA data sheet D013-013 (lubricated screw connections)
Validity:
For all non-dynamically stressed screw connections with lubricated shank bolts
in accordance with ISO 4014, ISO 4017 and ISO 4762 (DIN 912) with metric
standard thread in accordance with DIN ISO 262, unless other specifications are
given on CENTA documents.
Preparation of parts that are to be screwed together:
The joining areas must be free of dirt, preservatives and lubricants.
Preparation of screws that ARE NOT secured with liquid screw locking
medium:
Give the screws extra lubrication with motor oil under the screw head and in the
thread.
Preparation of screws that ARE secured with liquid screw locking
medium:
Give the screws extra lubrication with motor oil under the screw head. Remove
all grease from the thread.
Screw tightening method:
Screw in (by hand with torque wrench).
