6.3 Mounting the hub
 Mount the hub as appropriate for the supplied design (see installation
drawing):
 Mounting the hub with cylindrical bore and keyway,
see chapter 6.3.1 .
 Mounting the hub with conical oil interference fit,
see chapter 6.3.2 .
6.3.1 Mounting the hub with cylindrical bore and keyway

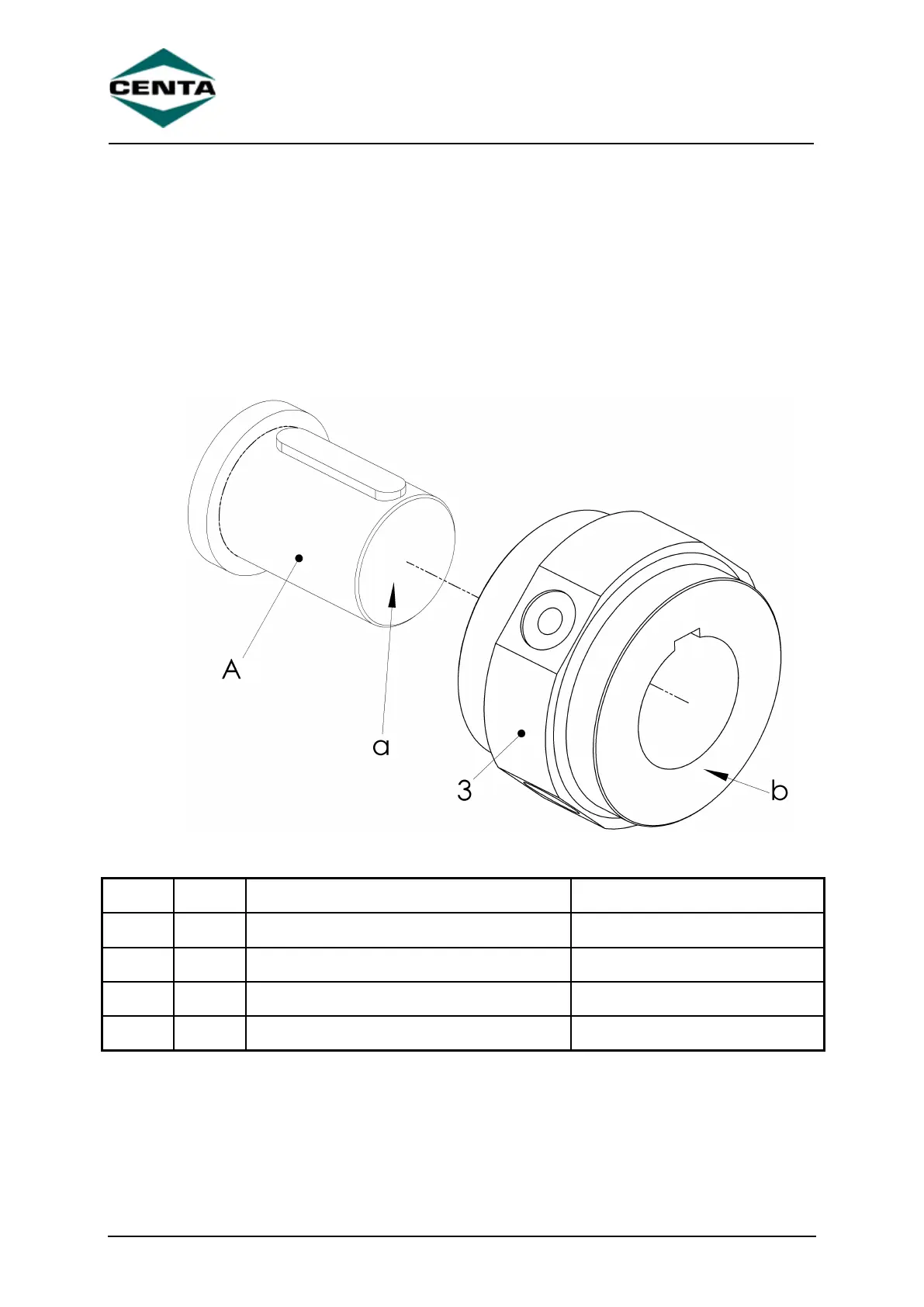

Fig. 6-3 Mounting the hub with cylindrical bore and keyway
Item
Info
Designation
Remark
3
Hub
A
Shaft
Customer part
a
Face of shaft
b
Face of hub
