5.3 Angular alignment
Measure the angular misalignment with a dial gauge (see Fig. 5-3).
 Attach the dial gauge to the hub.
 Position the sensor of the dial gauge radially against flat surface at a
distance R.
 Turn the hub with dial gauge and flywheel slowly by 360°.
The maximum dial gauge deflection must not exceed the value 2xS
w
at any
point. The permissible tolerance S
W max
should be taken from the table below.
 Align the units (calculated deviation ≤∆K
W max
).
Permissible angular alignment tolerance:
∆K
W max
=0.2°

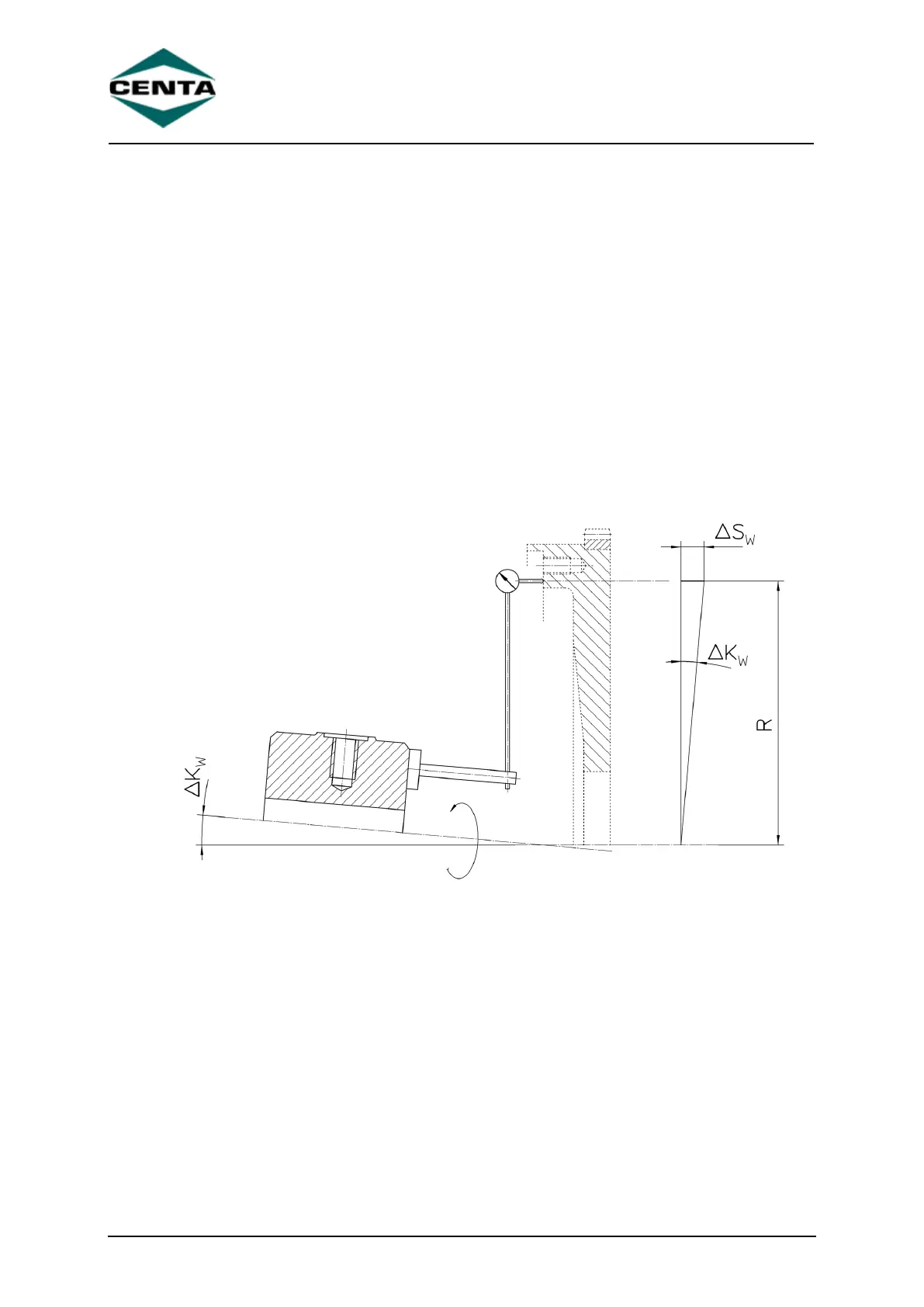

Fig. 5-3 Angular misalignment
