Assembly and operating instructions
CENTAX-L
016L-00050…00090-FS10
M016-00003-EN
Rev. 3
CENTA Antriebe Kirschey GmbH 31 / 46

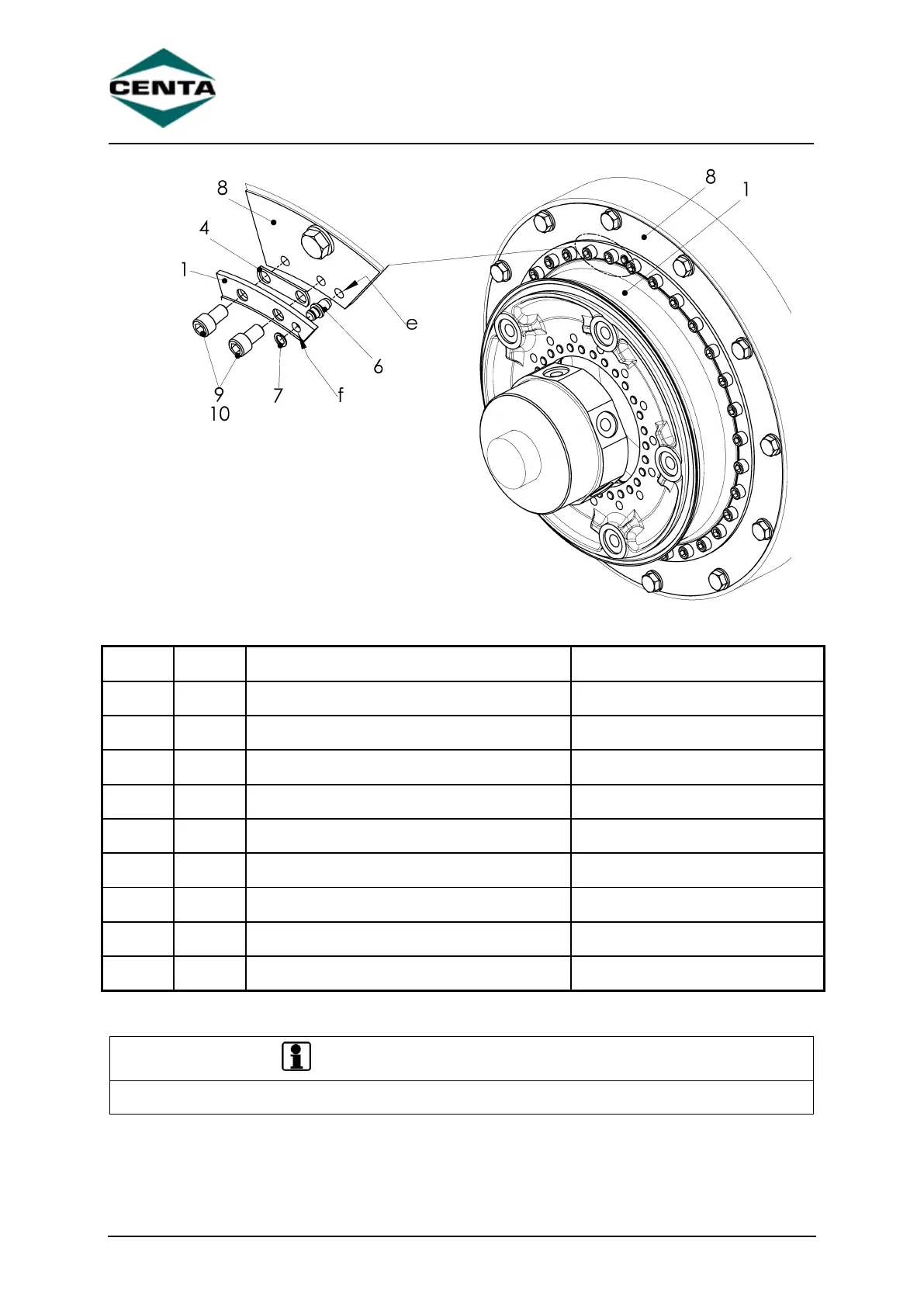

Fig. 6-8 Mounting the link flange assembly to the adapter (8)
Item
Info
Designation
Remark
1
Link flange assembly
4
Sheet
6
Bolt
2x180°
7
Circlip DIN471
2x180°
8
Adapter
9
Screw ISO4762-10.9
10
Washer (not shown)
See installation drawing
e
Drilling for bolt
in adapter
f
Drilling for bolt
in link flange assembly
IMPORTANT
Ensure during installation that the bolts are in the right position.
