2.2 Unit Dimensions

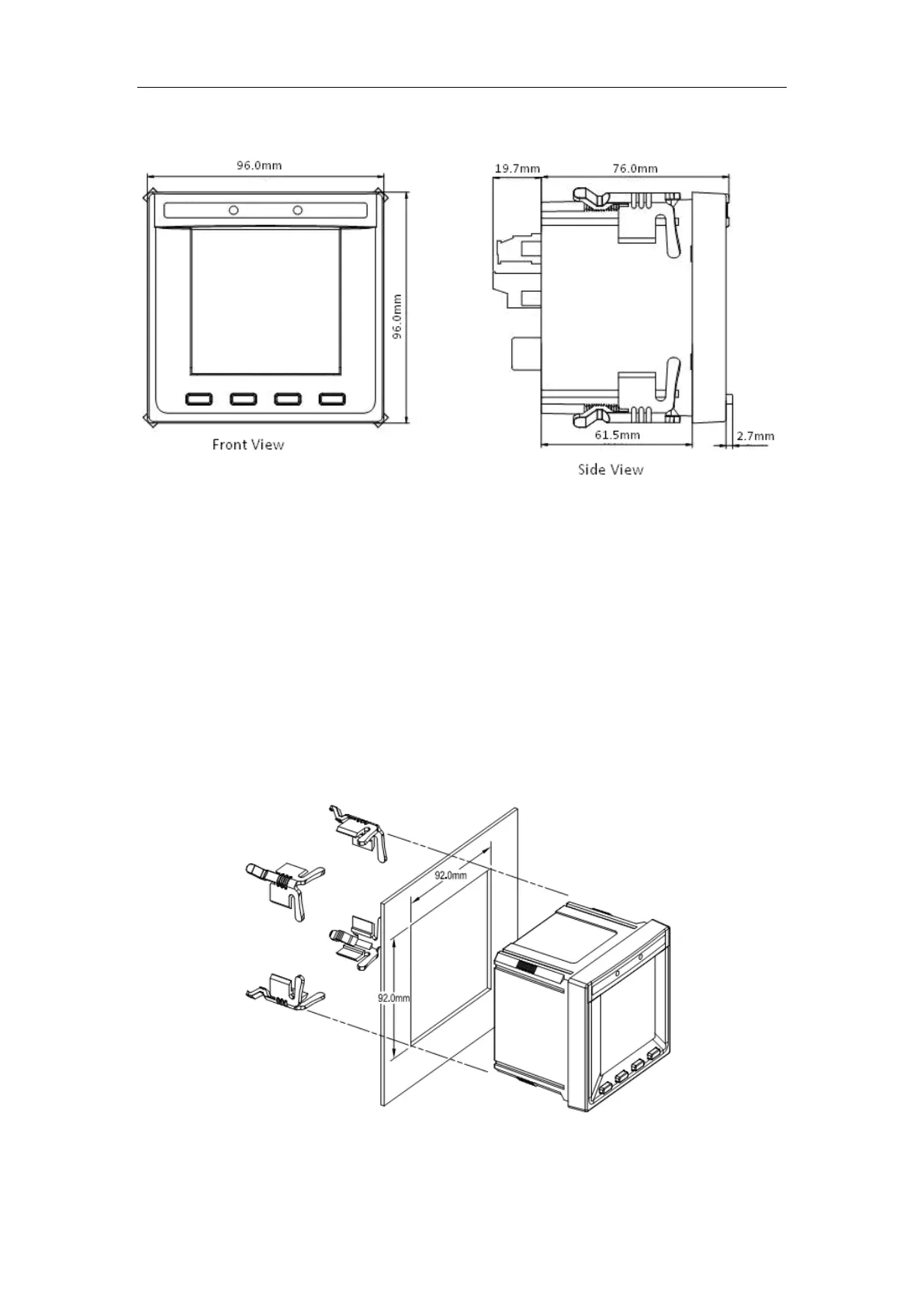

Figure 2-2 Dimensions
2.3 Mounting
The PMC-53 series meter should be installed in a dry environment with no dust and kept away from
heat, radiation and electrical noise source.
Installation steps:
 Remove the installation clips from the meter
 Fit the meter through a 92mmx92mm cutout as shown in Figure 2-3
 Re-install the installation clips and push the clips tightly against the panel to secure the meter
Figure 2-3 Panel Cutout
