2.4.2 3-phase 4-wire Wye with 3PTs and 3CTs

Please consult the serial number label to ensure that the rated PT secondary voltage is less than or

equal to the meter’s voltage input specification.

Set the Wiring Mode to Wye.

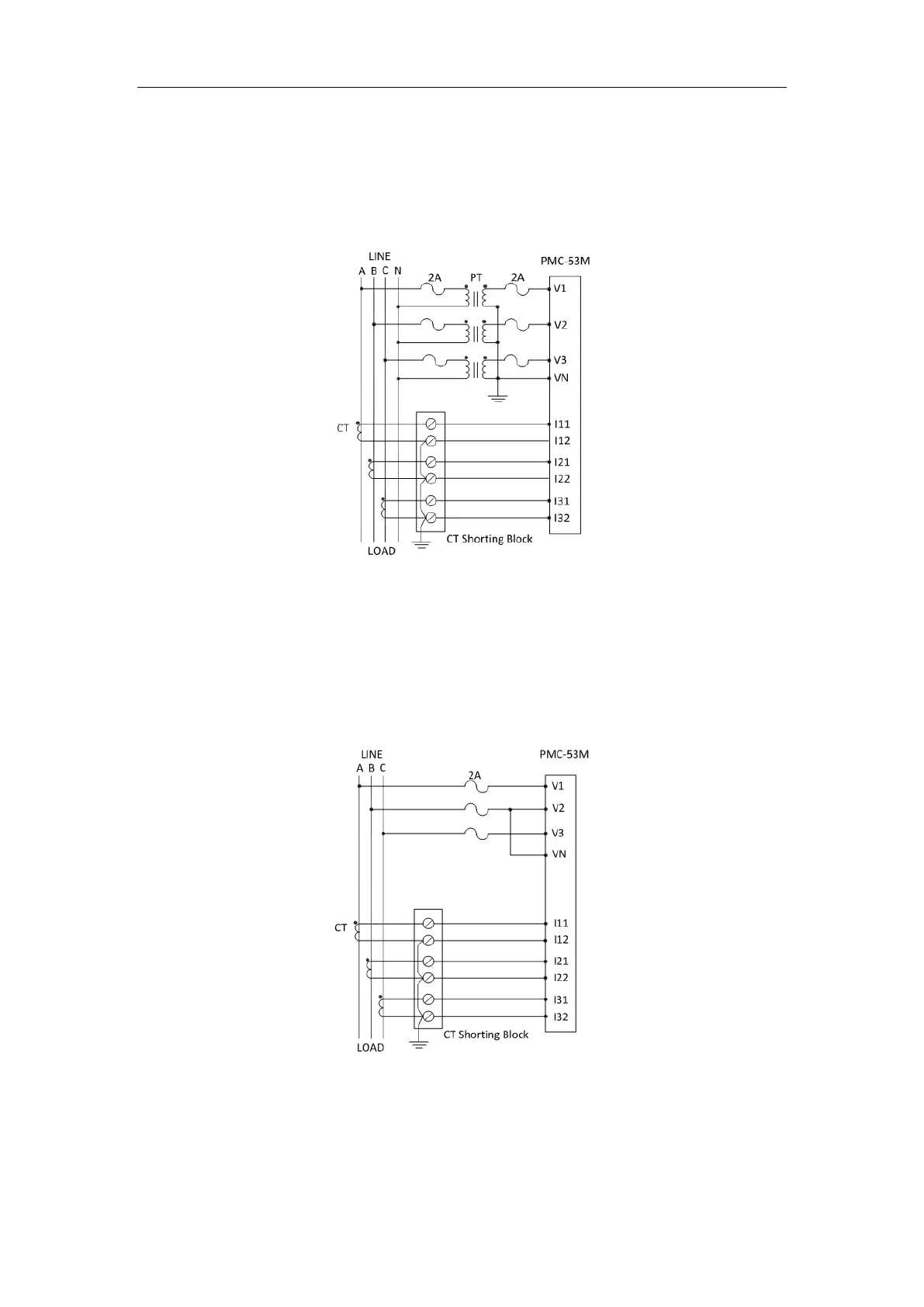

Figure 2-5 4-Wire Wye, 3PTs, 3CTs

2.4.3 3-phase 3-wire Open Delta Direct Connection

Please consult the serial number label to ensure that the rated PT secondary voltage is less than or

equal to the meter’s voltage input specification.

Set the Wiring Mode to Delta.

Figure 2-6 3-Wire DELTA, Direct Connection
