Models and Measurements
Measurements
Models
Standard
PMC-53V
PMC-53I
PMC-53M
VLN and VLL per phase and Avg
■
■
Current per phase and Avg
■
■
Neutral Current*
■
Voltage and Current phase angles*
■
Frequency
■
■
kW, kvar, kVA per phase and Total
■
PF per phase and Total
■
Displacement PF per phase*
■
kWh, kvarh Import and Export
■
kVAh Total
■
Demands and Peak Demands*
■
Voltage and Current Unbalance*
■
Voltage and Current THD*
■
K-Factor*
■
RS485 / Modbus Protocol
■
■
■
LED Pulse Outputs
■
Optional Features
I residual Input
1
RTD Temperature Input
1
DI
2
2
2
DO or SS Relay
2
2
2
* Available in Firmware Version V1.20.01 or later

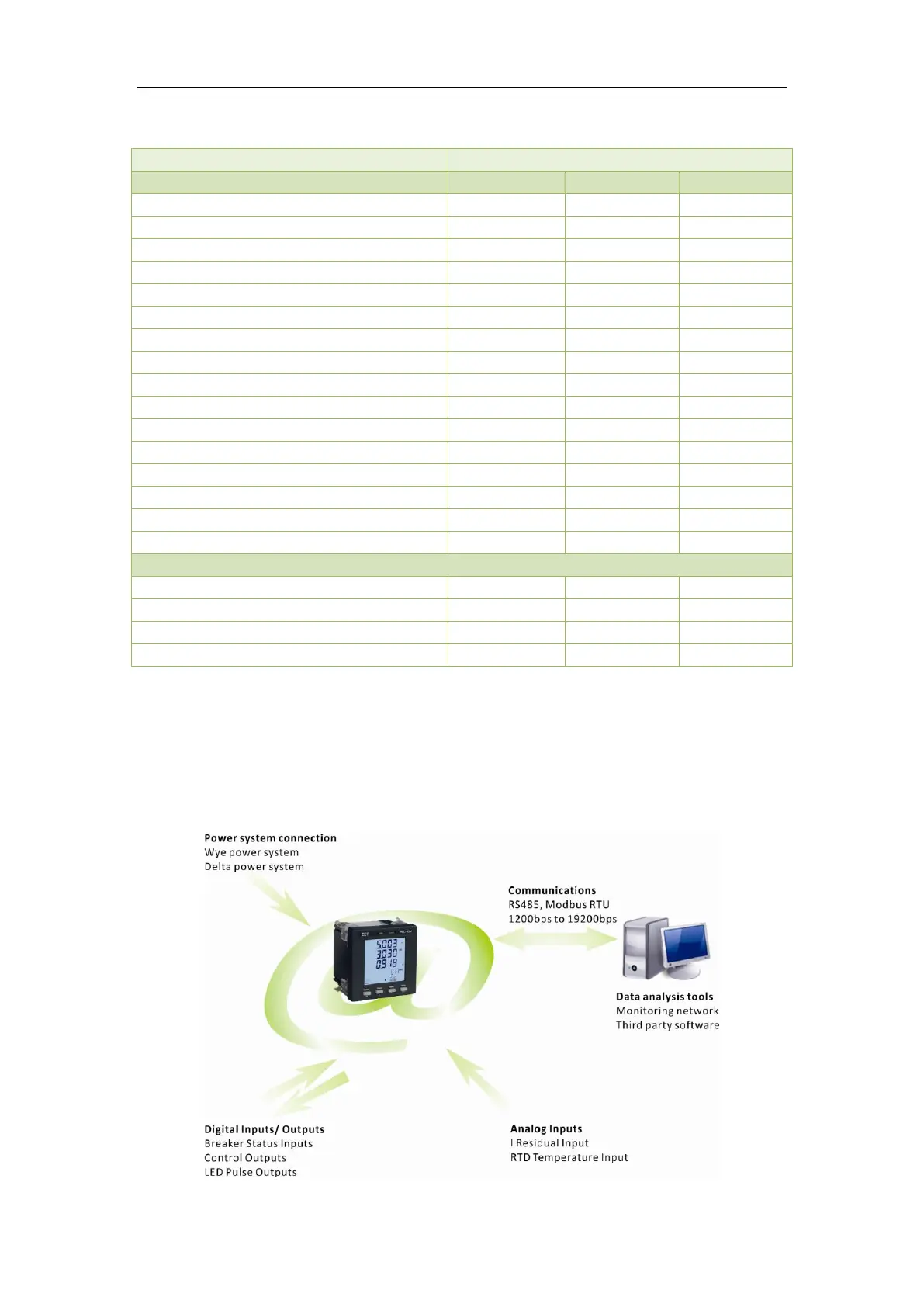

1.3 PMC-53 series’ application in Power and Energy Management Systems
The PMC-53 can be used to monitor Wye or Delta connected power system. Modbus
communications allow real-time data, events, DI status and other information to be transmitted across
a RS485 network to an Integrated Energy Management system such as PecStar®.
