CET PMC-53 Series User Manual

Ceiec Electric Technology
17

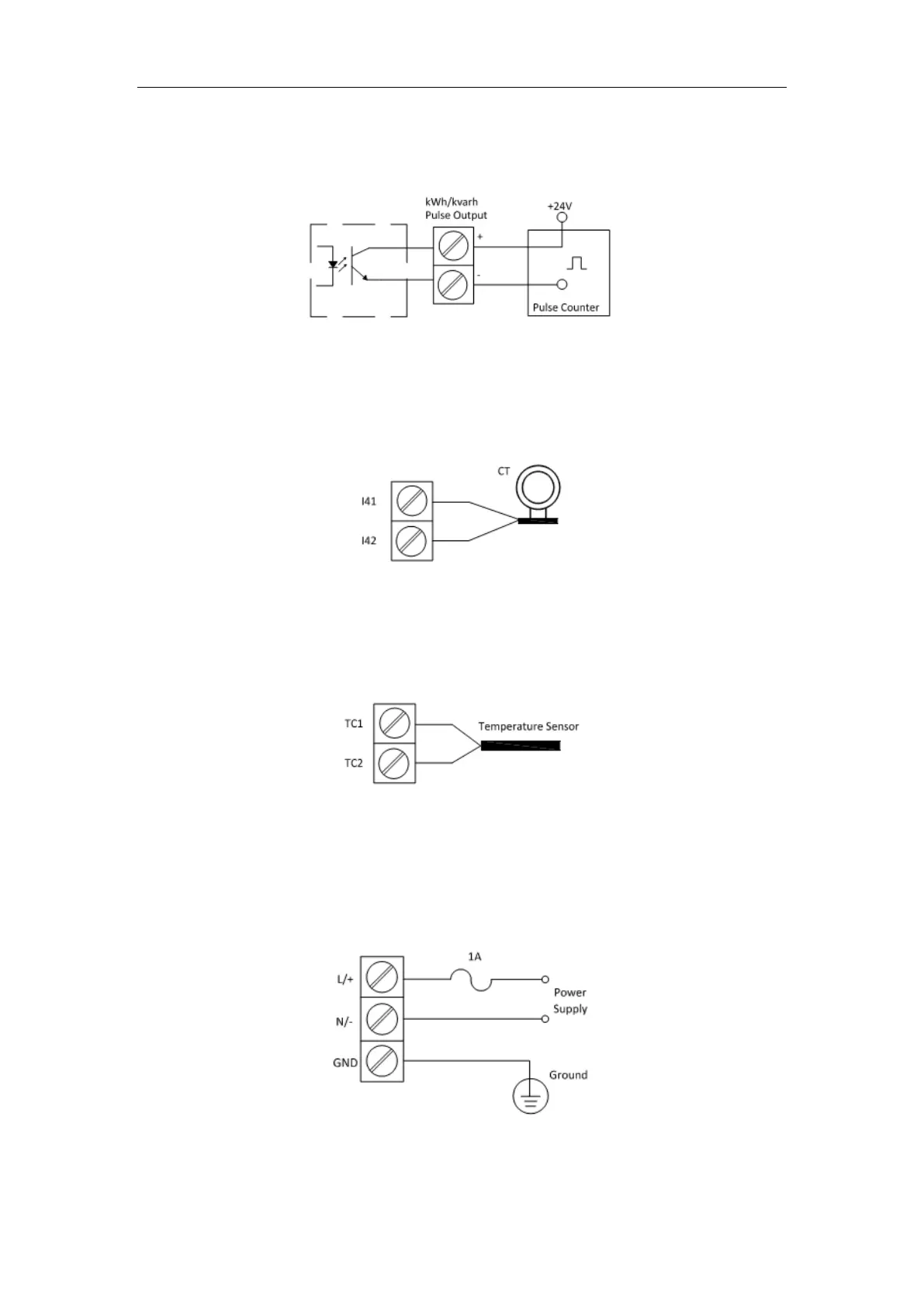

2.8 Pulse Output Wiring
The following figure illustrates the Pulse Output connections on the PMC-53:
Figure 2-12 Pulse Output Connections
2.9 I residual Input Wiring
The following figure illustrates the I residual connections on the PMC-53:
Figure 2-13 I residual Connections
2.10 Temperature Input Wiring
The following figure illustrates the Temperature Input connections on the PMC-53:
Figure 2-14 Temperature Input Connections
2.11 Power Supply Wiring
For AC supply, connect the live wire to the L/+ terminal and the neutral wire to the N/- terminal. For
DC supply, connect the positive wire to the L/+ terminal and the negative wire to the
N/- terminal. Connect the GND terminal to ground.
Figure 2-15 Power Supply Connections
