2.4.4 3-phase 3-wire Open Delta with 2PTs and 3CTs

Please consult the serial number label to ensure that the rated PT secondary voltage is less than or

equal to the meter’s voltage input specification.

Set the Wiring Mode to Delta.

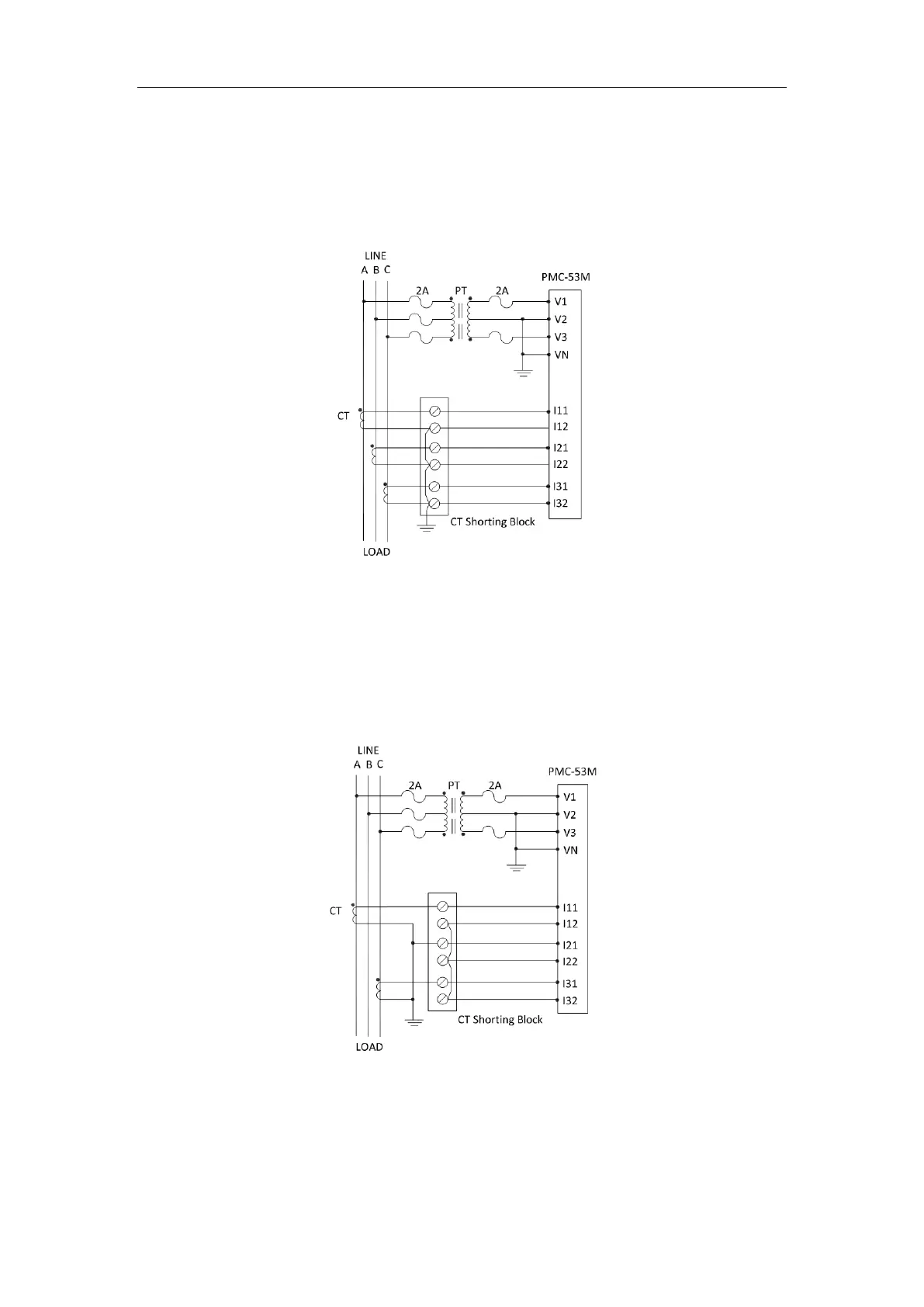

Figure 2-7 3-Wire DELTA, 2PTs, 3CTs

2.4.5 3-phase 3-wire Open Delta with 2PTs and 2CTs

Please consult the serial number label to ensure that the rated PT secondary voltage is less than or

equal to the meter’s voltage input specification.

Set the Wiring Mode to Delta.

Figure 2-8 3-Wire DELTA, 2PTs, 2CTs
